1.25G SFP 10~160km Single Mode Full Form on Switch
1.25G SFP 10~160km Single Mode Full Form on Switch
• High-Speed Data Transmission: supports 1Gbps Ethernet transmission rate for most enterprise and telecommunications applications.
• Single-Fiber Single-Mode: suitable for long-distance transmission, from several kilometers to over a hundred kilometers.
• Digital Diagnostic Function (DDM/DOM): monitors optical power, temperature, and voltage in real time.
• Widely compatible with major switch, router, network card, and transceiver brands.
• Single-Fiber Single-Mode: suitable for long-distance transmission, from several kilometers to over a hundred kilometers.
• Digital Diagnostic Function (DDM/DOM): monitors optical power, temperature, and voltage in real time.
• Widely compatible with major switch, router, network card, and transceiver brands.
Product Introduction
This series of EW-F6080P optical transceiver modules is compatible with Cisco, Juniper, Huawei, ZTE, H3C, Mellanox, DELL, Intel, Ubiquiti, FiberHome, Ruijie, D-LINK, Netgear, Ciena, Arista, Brocade, Extreme, Avago, Avaya, Nortel, Alcatel-Lucent, Dahua, and Hikvision equipment, suitable for data centers and telecommunications networks.Key Advantages
- Single-Fiber Single-Mode: suitable for long-distance transmission scenarios such as remote transmission and data centers, with obvious advantages in long-distance communication due to its long transmission distance and high transmission quality
- Compatible with Multiple Brands: adapts to major brand models, suitable for switches, routers, network cards, transceivers and other SFP-equipped devices
- DDM Detection: real-time monitoring of module working status helps predict and locate faults, simplifying installation and maintenance
- Imported Chips, Stable Transmission: high-quality main control chip and thickened gold-plated finger technology with real-time automatic calibration of model deviation
Technical Parameter
| Model | Data Rate | Distance | Wavelength | Connector | Receiving Sensitivity |
|---|---|---|---|---|---|
| SFP-1G-10LR-31A / SFP-1G-10LR-55B | 1.25Gbps | 10KM | 1310/1550nm | LC/SC | ≤-24dBm |
| SFP-1G-20LR-31A / SFP-1G-20LR-55B | 1.25Gbps | 20KM | 1310/1550nm | LC/SC | ≤-24dBm |

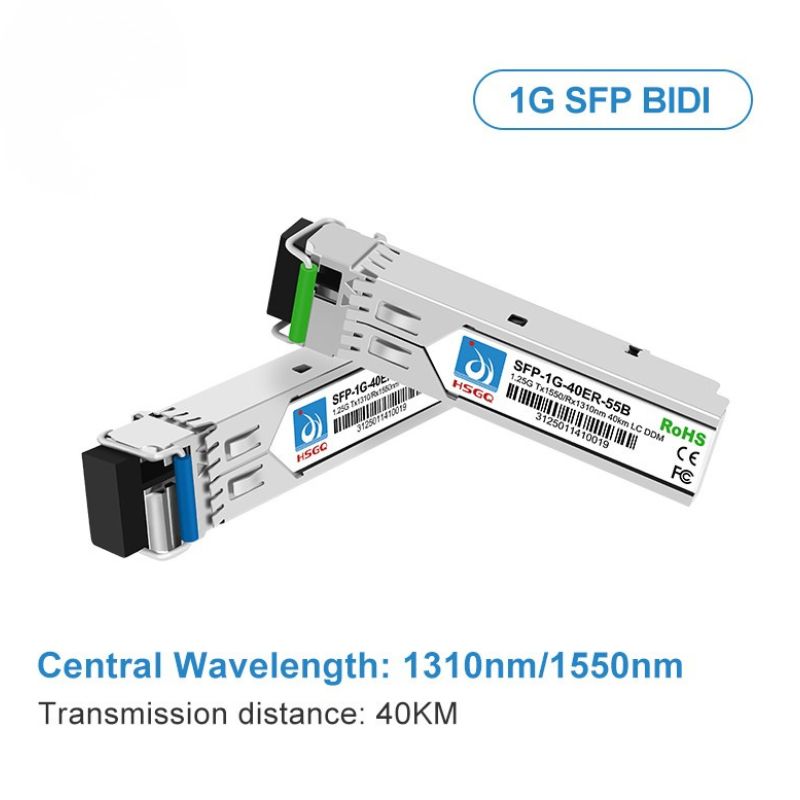

| SFP-10G-40ER-31A / SFP-1G-40ER-55B | 1.25Gbps | 40KM | 1310/1550nm | LC/SC | ≤-24dBm |
| SFP-1G-60ER-49A / SFP-1G-60ER-55B | 1.25Gbps | 60KM | 1490/1550nm | LC/SC | ≤-25dBm |
| SFP-1G-80ZR-49A / SFP-1G-80ZR-55B | 1.25Gbps | 80KM | 1490/1550nm | LC/SC | ≤-26dBm |
| SFP-1G-100ZR-49A / SFP-1G-100ZR-55B | 1.25Gbps | 100KM | 1490/1550nm | LC/SC | ≤-30dBm |

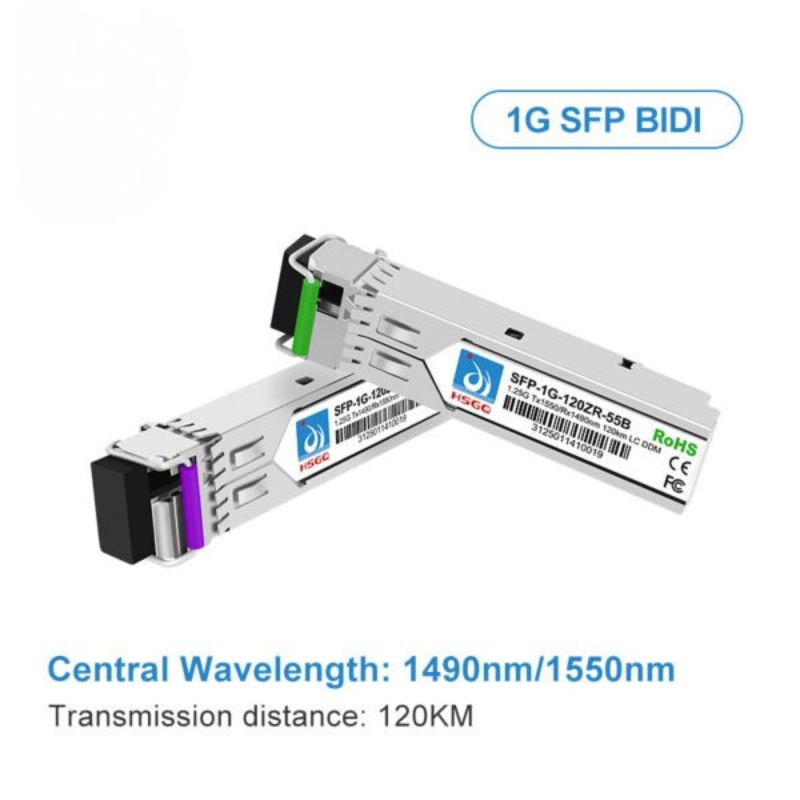

| SFP-1G-120ZR-49A / SFP-1G-120ZR-55B | 1.25Gbps | 120KM | 1490/1550nm | LC/SC | ≤-30dBm |

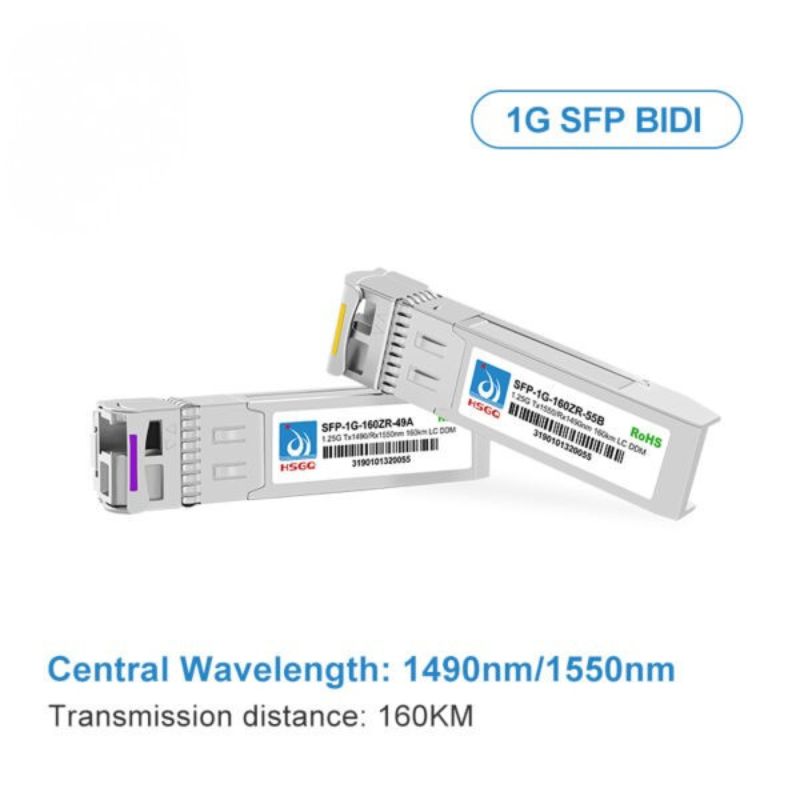

| SFP-1G-160ZR-49A / SFP-1G-160ZR-55B | 1.25Gbps | 160KM | 1490/1550nm | LC/SC | ≤-33dBm |
