1 Port Gpon Mini OLT Optical for FTTX
1 Port Gpon Mini OLT Optical for FTTX

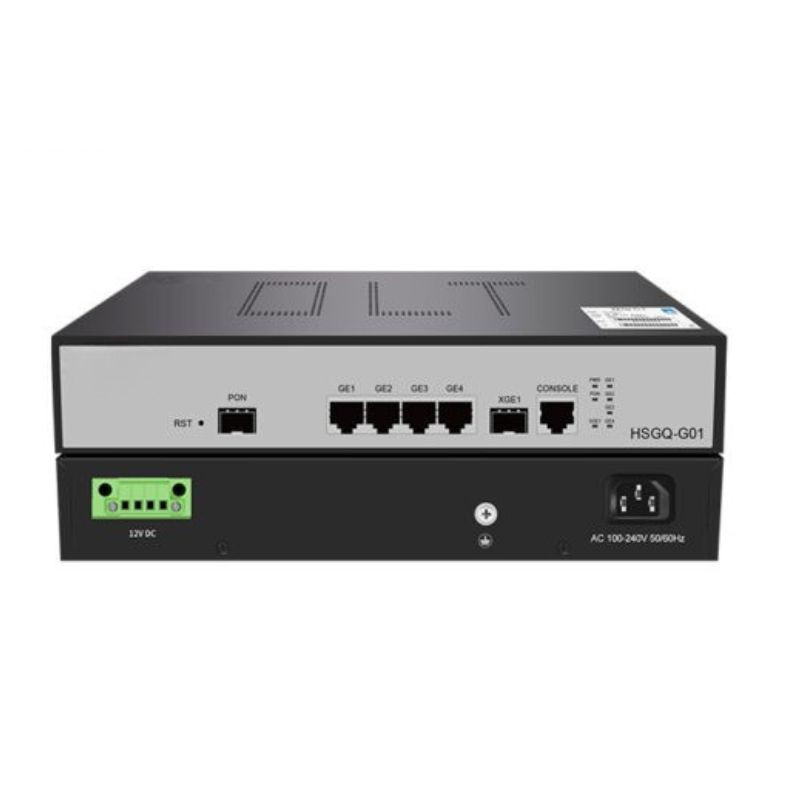

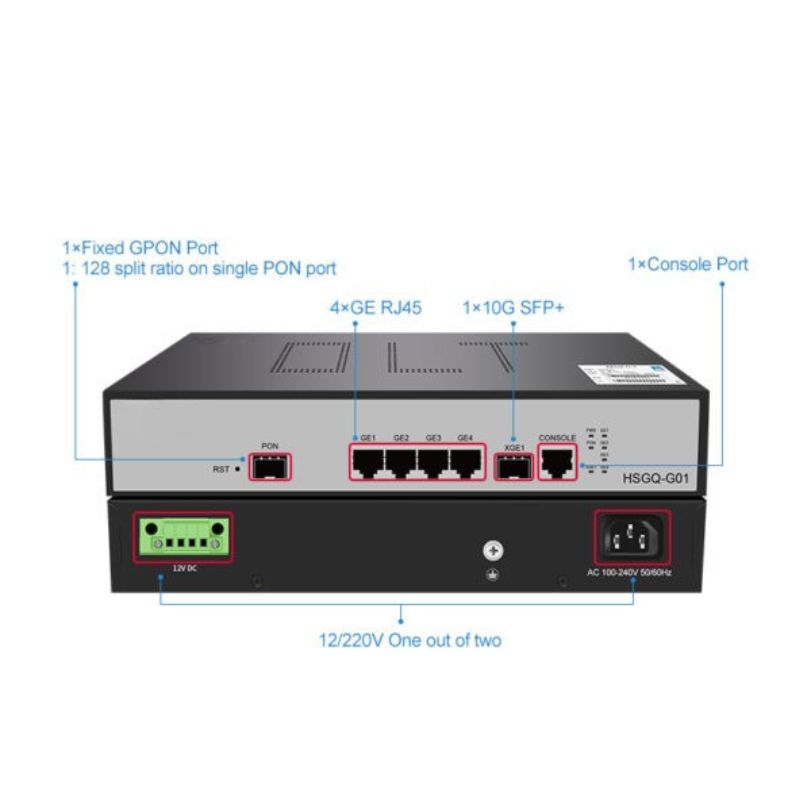

• Structure: 1*Fixed GPON Port; 4*GE RJ45; 1*10G SFP+; 1*Console Port.
• Cost-effectiveness: Lower in cost than traditional OLT, it is a more cost-effective choice.
• Deployment: Small size, light weight, easy to install and deploy.
• Expansion: More ONUs can be added as needed to meet network expansion needs.
• Performance: Adopts mature technology with high reliability and stability.
• Suitable: Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.
• Scenario: FTTH/ SOHO/ Small Enterprise Office
EW-F604P Port Gpon Mini OLT Optical for FTTX
G01 is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/ Unicom GPON, with super GPON access capacity, carrier-class reliablity and the complete security function. lt can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and fexible network mode. G01 can be used with network management system so as to provide userswith the comprehensive access and perfect solution.
EW-F604P is a small-capacity cassette GPON OLT developed for compact fiber access networks. It is designed around ITU-T G.984/G.988 requirements and relevant GPON deployment standards. The device provides GPON access, network management, maintenance, monitoring, and service control functions for small-scale projects.
With one GPON port and a planned split ratio of up to 1:128, the G01 can serve multiple ONU terminals through a passive optical distribution network. Its compact design makes it suitable for small ISP access networks, residential projects, SOHO deployments, and small enterprise offices.
Compact GPON OLT for Small Network Projects
Small size products can support up to 128 GPON users greatly meet the needs of general micro projects. The 1U cassette-style design helps reduce installation space while maintaining the main functions required for a GPON access network.
Convenient and Efficient
An independent cloud management platform – EW-F604P Cloud, enables cloud management of devices, allowing for easy and efficient operation of devices at any time.
High Speed Transmission
The EW-F604P combines GPON access with multiple Ethernet uplink options. Its GPON interface supports the standard GPON transmission rates, while the four Gigabit Ethernet ports and one 10G SFP+ port provide flexible ways to connect the OLT to an aggregation switch, router, or upstream fiber network.
All-Round Efficient Heat Dissipation
The porous position and the opposite setting form the convection effect and accelerate the heat dissipation of the equipment. The ventilation openings and chassis layout support natural airflow around the device.
VLAN Port Isolation
The EW-F604P supports VLAN functions for separating and organizing different types of network traffic. The device also supports IGMP snooping and flexible multicast control.
Multiple Scenes
The EW-F604P can be used in residential districts, commercial villas, small enterprise offices, intelligent factories, healthcare facilities, shopping malls, school campuses, and monitoring networks.
| Item | EW-F604P |
|---|---|
| Interface | 1*GPON 4*GE RJ45 1*10G SFP+ |
| PON | ITU.T G.984.x/G.988; Password authentication modes Terminal access up to 20km on a single fiber 1: 128 split ratio on single PON port DBA algorithm, and the particle is for 64Kbit/s Standard OMCI management function ONU batch software upgrade PON port optical parameter detection Auto registration ONU bound with default profile |
| Flash | 16MB |
| DDR | 512MB |
| Size | 250mm x 180mm x 44mm |
| Weight | ＜5kg |
| Management Ports | Console port |
| Environment | Operating temperature:-10°C~55°C Storage temperature:-40°C~70°C Storage humidity:5%~95% (non-condensing) |
| Power Supply | DC 12V |
| Power Consumption | ＜10W |
| Platform Management Features | Device list Project management Version Release Lisense management Permission management User management |
| Configuration and Management | CLI, WEB, SNMP, NMS and CLOUD Software and bootrom Upgrade by TFTP and FTP Chinese/English command prompt Ping and Debug diagnosis User/Log/Alarm management |
| Status | PON Status Uplink Status Performance Monitor System Monitor |
| L2 Function | Support VLAN Support Port mirror Support Storm control Support IGMP Snooping/proxy Support MAC Black Hole Support Port isolation Encrytion of PON port transmitting data |
- 16K MAC address table.
- Support flexible DBA, up and down traffic speedcontrol.
- Support port aggregation.
- Support port-based traffic control, traffic shaping.
- Support ONU automatic identification, auto-discovery, and auto-registration.
- Support VLAN.
- Flexible and controllable multicast support.
- Support IGMP snooping.
- Support Cloud Management.
Product Overview
EW-F604P Port Gpon Mini OLT Optical for FTTX
G01 is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/ Unicom GPON, with super GPON access capacity, carrier-class reliablity and the complete security function. lt can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and fexible network mode. G01 can be used with network management system so as to provide userswith the comprehensive access and perfect solution. EW-F604P is a small-capacity cassette GPON OLT developed for compact fiber access networks. It is designed around ITU-T G.984/G.988 requirements and relevant GPON deployment standards. The device provides GPON access, network management, maintenance, monitoring, and service control functions for small-scale projects. With one GPON port and a planned split ratio of up to 1:128, the G01 can serve multiple ONU terminals through a passive optical distribution network. Its compact design makes it suitable for small ISP access networks, residential projects, SOHO deployments, and small enterprise offices.Compact GPON OLT for Small Network Projects
Small size products can support up to 128 GPON users greatly meet the needs of general micro projects. The 1U cassette-style design helps reduce installation space while maintaining the main functions required for a GPON access network.Convenient and Efficient
An independent cloud management platform – EW-F604P Cloud, enables cloud management of devices, allowing for easy and efficient operation of devices at any time.High Speed Transmission
The EW-F604P combines GPON access with multiple Ethernet uplink options. Its GPON interface supports the standard GPON transmission rates, while the four Gigabit Ethernet ports and one 10G SFP+ port provide flexible ways to connect the OLT to an aggregation switch, router, or upstream fiber network.All-Round Efficient Heat Dissipation
The porous position and the opposite setting form the convection effect and accelerate the heat dissipation of the equipment. The ventilation openings and chassis layout support natural airflow around the device.VLAN Port Isolation
The EW-F604P supports VLAN functions for separating and organizing different types of network traffic. The device also supports IGMP snooping and flexible multicast control.Multiple Scenes
The EW-F604P can be used in residential districts, commercial villas, small enterprise offices, intelligent factories, healthcare facilities, shopping malls, school campuses, and monitoring networks.Key Features
- 16K MAC address table.
- Support flexible DBA, up and down traffic speedcontrol.
- Support port aggregation.
- Support port-based traffic control, traffic shaping.
- Support ONU automatic identification, auto-discovery, and auto-registration.
- Support VLAN.
- Flexible and controllable multicast support.
- Support IGMP snooping.
- Support Cloud Management.
Technical Specifications
| Item | HSGQ-G01 |
|---|---|
| Interface | 1*GPON 4*GE RJ45 1*10G SFP+ |
| PON | ITU.T G.984.x/G.988; Password authentication modes Terminal access up to 20km on a single fiber 1: 128 split ratio on single PON port DBA algorithm, and the particle is for 64Kbit/s Standard OMCI management function ONU batch software upgrade PON port optical parameter detection Auto registration ONU bound with default profile |
| Flash | 16MB |
| DDR | 512MB |
| Size | 250mm x 180mm x 44mm |
| Weight | ＜5kg |
| Management Ports | Console port |
| Environment | Operating temperature:-10°C~55°C Storage temperature:-40°C~70°C Storage humidity:5%~95% (non-condensing) |
| Power Supply | DC 12V |
| Power Consumption | ＜10W |
| Platform Management Features | Device list Project management Version Release Lisense management Permission management User management |
| Configuration and Management | CLI, WEB, SNMP, NMS and CLOUD Software and bootrom Upgrade by TFTP and FTP Chinese/English command prompt Ping and Debug diagnosis User/Log/Alarm management |
| Status | PON Status Uplink Status Performance Monitor System Monitor |
| L2 Function | Support VLAN Support Port mirror Support Storm control Support IGMP Snooping/proxy Support MAC Black Hole Support Port isolation Encrytion of PON port transmitting data |
Product Advantages
- Optical link diagnosis: Complete warning mechanism.
- High reliability: Support dual power supply.
- Dimension: 1U cassette save space, low power consumption.
- Uplink: Support electrical and optical modules, can be flexibly configured according to different networking.
- Capacity: Each PON supports up to 128 terminals, the whole device supports up to 128 ONUs under full configuration.
