1-Port XGS-PON/GPON Combo OLT with 2×10G SFP+
1-Port XGS-PON/GPON Combo OLT with 2×10G SFP+
• 1-port XGS-PON/GPON Combo OLT with 4 GE RJ45 and 2×10G SFP+ uplink interfaces.
• Supports XGS-PON, XG-PON, and GPON access for gradual 10G PON migration.
• Provides flexible DBA, VLAN/QinQ, multicast, ACL, QoS, IPv4/IPv6, and Layer 3 routing functions.
• Supports CLI, Web, SNMP/NMS, and EDMS cloud management for FTTH, FTTR, commercial, and industrial networks.
Product Overview

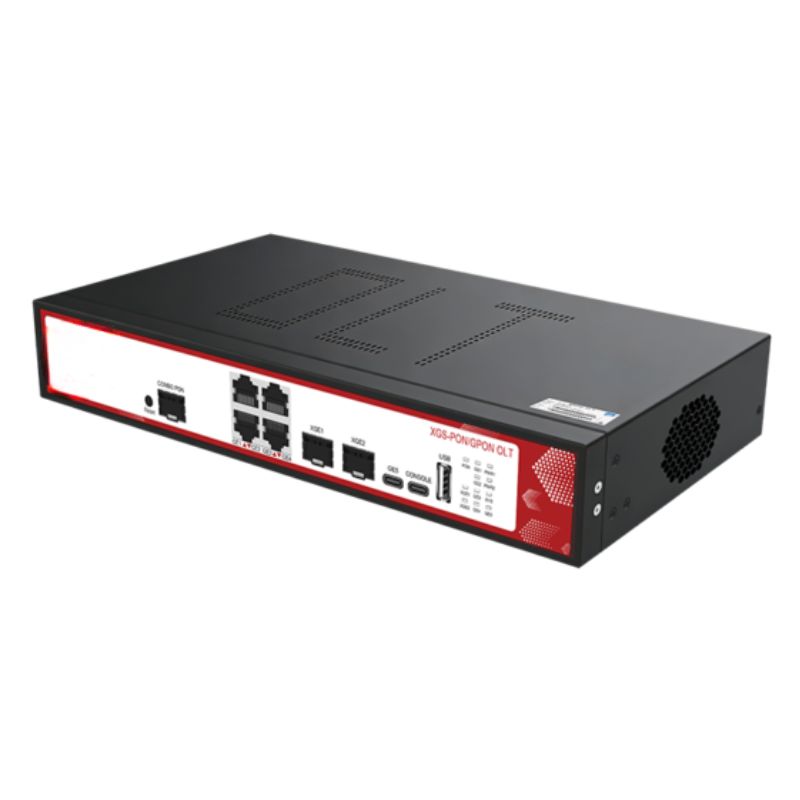

EW-F6016P is a box type XGS-PON/GPON Combo OLT with good system stability and high reliability. It supports multiple management methods such as CLI, WEB, and SNMP. The product provides 1*XGS-PON/XG-PON/GPON port, 4*GE RJ45 uplink ports, and 2*10G SFP+ slots. Users can quickly deploy, configure, and monitor the device via cloud management. Suitable for sparsely populated and budget-limited areas, smart industrial parks, commercial buildings, and FTTR. Each PON port supports a maximum split ratio of 1:128 and up to 128 users. It is an excellent choice for operators to migrate from GPON to 10G PON.
Key Advantages
- Combo PON port supports XGS-PON, XG-PON, and GPON access modes on the same platform
- XGS-PON 10G uplink interfaces tailored for 4K/8K/VR/live streaming
- Type-C Console Port for one-cable configuration management
- Supports Layer 3 routing protocols: IPv4/IPv6 dual stack, static routing, RIP, OSPF, VRRP redundancy, DHCP, PIM, IGMP
- Software redundancy design: redundant power supplies, redundant link protection, VRRP redundancy
- Supports EDMS cloud platform management via built-in MQTT module
Technical Parameter
| Item | EW-F6016P |
|---|---|

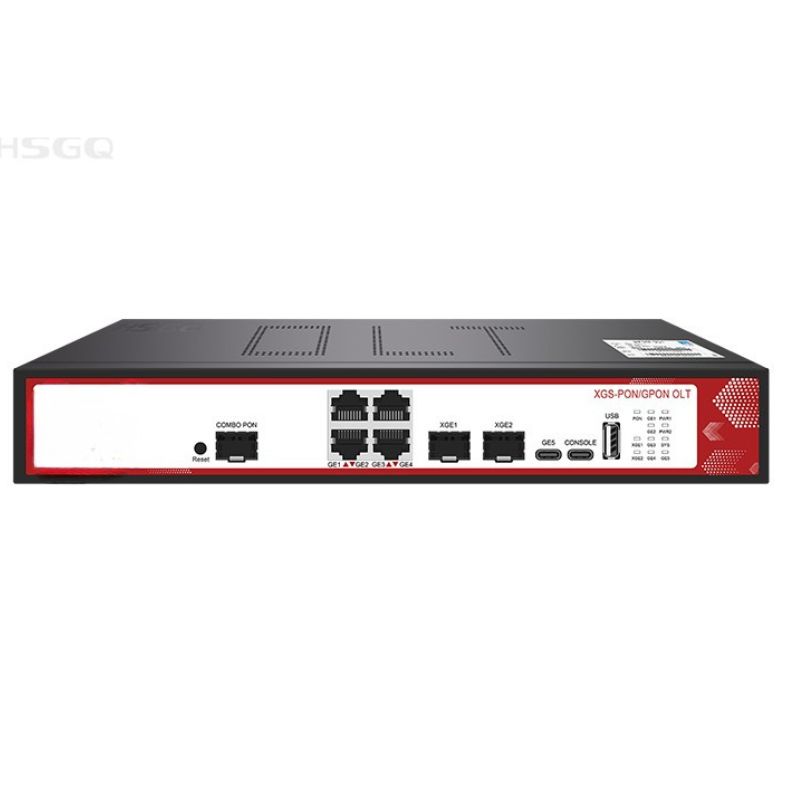

| User Interface | 1*XGSPON/XG-PON/GPON, 4*GE RJ45, 1*GE Type-C, 2*10G SFP+, 1*USB 2.0 |
| PON | PON SFP+ slot (20 pin); XG(S)-PON Class N1/N2; GPON Class C++/C+++ |
| Split Ratio | 1:128 |
| Bandwidth | XGSPON: 9.953Gbps up/down; GPON: Upstream 1.244Gbps / Downstream 2.488Gbps |
| Flash / DDR | 32MB / 512MB |
| Dimensions | 285*192*44mm |

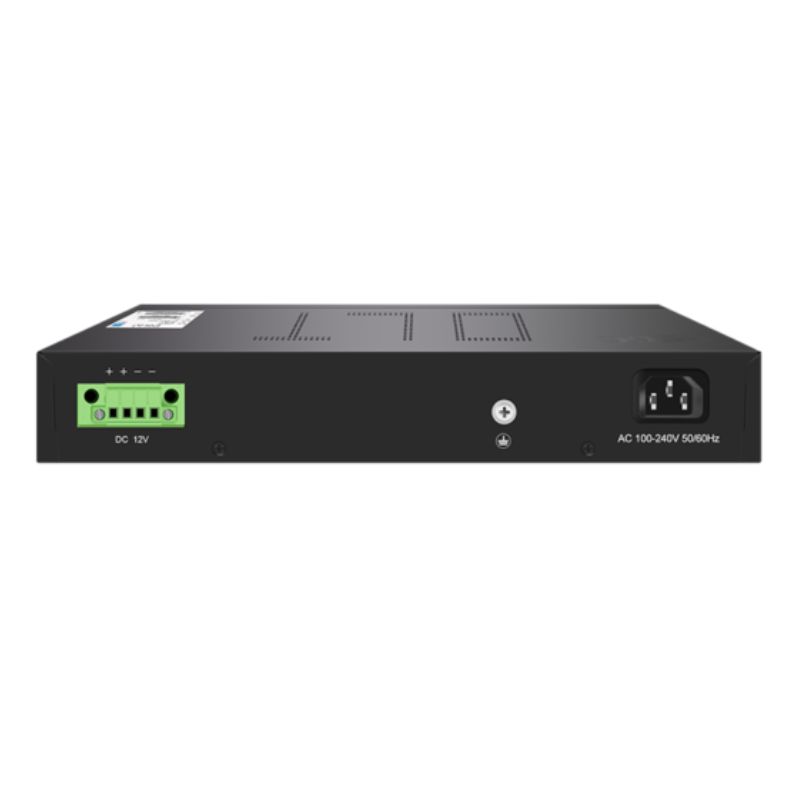

| Power Supply | AC 100V-240V 50Hz/60Hz; DC 12V |
| Power Consumption | <50W |
| Environment | Work: -10°C~55°C; Storage: -40°C~80°C; Humidity: 10%~95% non-condensing |
Product Features
PON & Cloud Management
- Support auto register, ONU white and deny list, DBA Configuration
- Cloud Management: Device List, Project Management, Version Release, License Management
- Configuration and Monitoring: CLI, WEB, SNMP/NMS, CLOUD; firmware upgrade, ping and debug
L2/L3 Functions
- VLAN transparent, translate, QinQ; IGMP Snooping/proxy; Port Isolation
- MSTP, RSTP, ERPS, LLDP, LACP
- DHCP, Static Route, OSPF, RIP
- Compliant with ITU-T G.987, G.9807.1, and G.984.x
