16 Pon Ports GPON OLT Customized for FTTH Access
16 Pon Ports GPON OLT Customized for FTTH Access

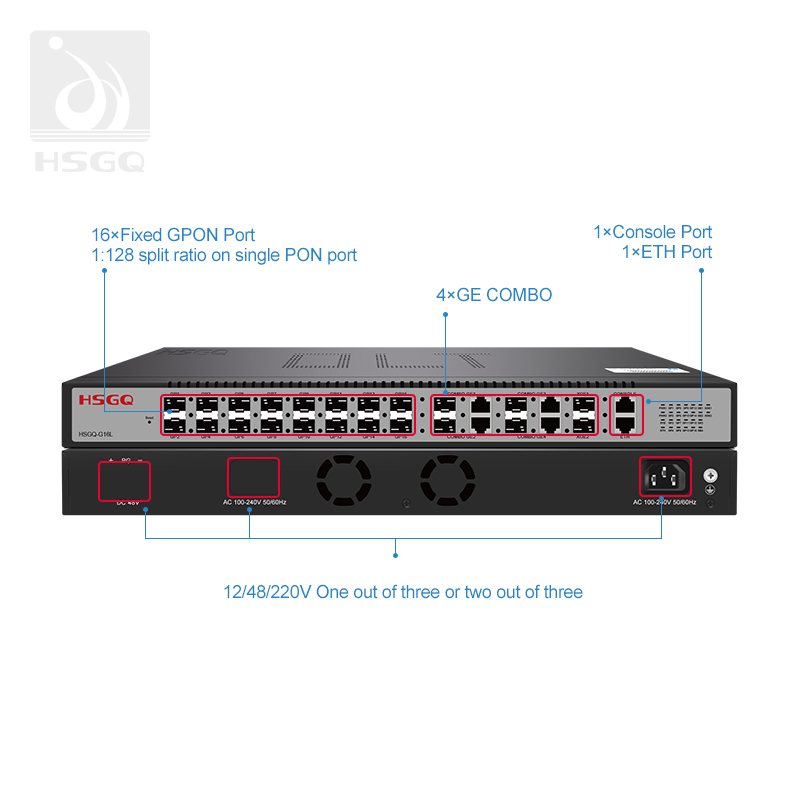

Structure: 16*Ports GPON; 4*GE Combo; 1*Console Port; 1*ETH Port.
Bandwidth: 1.25 Gbps upstream/downstream to meet home and enterprise broadband, voice and video needs.
Transmission: Up to 20 kilometers, meeting rural broadband construction needs.
Reliability: Dual power supply redundancy, dual link redundancy design.
Maintenance: Supports remote maintenance for convenient unified management.
Scenario: Home Broadband / Enterprise Broadband / Metropolitan Area Network / Rural Broadband.
Bandwidth: 1.25 Gbps upstream/downstream to meet home and enterprise broadband, voice and video needs.
Transmission: Up to 20 kilometers, meeting rural broadband construction needs.
Reliability: Dual power supply redundancy, dual link redundancy design.
Maintenance: Supports remote maintenance for convenient unified management.
Scenario: Home Broadband / Enterprise Broadband / Metropolitan Area Network / Rural Broadband.
Product Description
EW-F6018P belongs to the 1U cartridge GPON OLT series with good system stability and high reliability, supporting CLI, WEB, SNMP management. The product provides 16 GPON interfaces with 4 Combo uplink interfaces (or SFP interfaces) and 2 uplink SFP+ interfaces. Each GPON port supports up to a 1:128 splitting ratio and 2048 GPON users, with 1U height for easy installation and maintenance.Key Advantages
- Dual power redundancy backup across 16*GPON, 2*10G SFP+, 4*GE COMBO uplink ports
- HSGQ Cloud alarm notifications, remote inspection, control and configuration
- Efficient heat dissipation with dual fans forming convection
- Visual control: PON system status and flow status clear at a glance
- L3 switching capability with dynamic routing protocols (RIP/OSPF)
- Multi-scenario FTTX solution with abundant terminal types to choose from
Technical Parameter
| Item | EW-F6018P |
|---|---|
| Interface | 16*GPON, 4*10/100/1000M Combo, 2*10G SFP+ |
| PON | Physical interface: SFP slot; Type: Class C++/Class C+++/Class C++++; Split ratio: 1:128 |
| Flash | 32MB |
| DDR | 1GB |
| Size | 442mm x 260mm x 44mm |
| Weight | <5kg |
| Standard Protocol | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3z (1000BASE-X), IEEE802.3ab (1000Base-T), IEEE802.1Q (VLAN) |
| Management Port | Console port / ETH port |
| Environment | Operating: -10°C~55°C; Storage: -40°C~70°C; Storage humidity: 10%~90% non-condensing |
| Power Supply | AC: 100V-240V 50/60Hz |
| Power Dissipation | <60W |
PON & Platform Functions
- Support auto registration; ONU white list and black list; DBA configuration; P2P; ONU authorization
- Terminal access up to 20km on a single fiber
- Platform management: Device list, Project Management, Version release, License management, Permission management, User management
- Configuration and management: CLI, WEB, SNMP/NMS, CLOUD; software/firmware upgrades; Ping and debug diagnosis
L2 & L3 Functions
- Static routing; DHCP servers, DHCP Snooping and DHCP proxy; OSPF
- VLAN, VLAN conversion and QinQ, up to 4,094 VLANs; port mirror; RSTP and MSTP (recovery time <1s)
- Link aggregation (recovery time <10ms); Storm control; IGMP snooping/proxy; Port isolation
- ACL access control based on data stream; QoS based on port, VID, ToS, and MAC address
Key Feature
- 64K MAC address table; complete network management functions
- Flexible DBA, up and down traffic speed control; port aggregation; traffic shaping
- ONU automatic identification, auto-discovery and auto-registration; automatic loop-back test
- VLAN powerful features including VLAN, QinQ and translation; flexible multicast with IGMP snooping
- Support DHCP, Static Routing and OSPF; Cloud Management
Product Advantage
- Optical link diagnosis with complete warning mechanism
- High reliability: supports dual power supply (default single power supply)
- 1U cassette design saves space, low power consumption
- Uplink: supports electrical and optical modules, flexibly configured
- Capacity: each PON supports up to 128 terminals; whole device supports up to 2048 ONUs under full configuration
