16*10G SFP+ 8*25G SFP28 + 4*40G/100G QSFP28 Data Center Switch
16*10G SFP+ 8*25G SFP28 + 4*40G/100G QSFP28 Data Center Switch
• Comprehensive Routing Protocols: IPv4/IPv6 dual-stack, static routing, RIP/RIPng, OSPFv2/v3, BGP-4, VRRP.
• Horizontal Virtualization: Cross-device link aggregation (M-LAG) for active-active load balancing.
• Ring Network Protection: Layer 2/3 MPLS VPN, STP/RSTP/MSTP, ERPS industrial-grade self-healing.
• Millisecond Fault Detection: BFD mechanism linked with L2/L3 protocols.
• Horizontal Virtualization: Cross-device link aggregation (M-LAG) for active-active load balancing.
• Ring Network Protection: Layer 2/3 MPLS VPN, STP/RSTP/MSTP, ERPS industrial-grade self-healing.
• Millisecond Fault Detection: BFD mechanism linked with L2/L3 protocols.
Product Overview

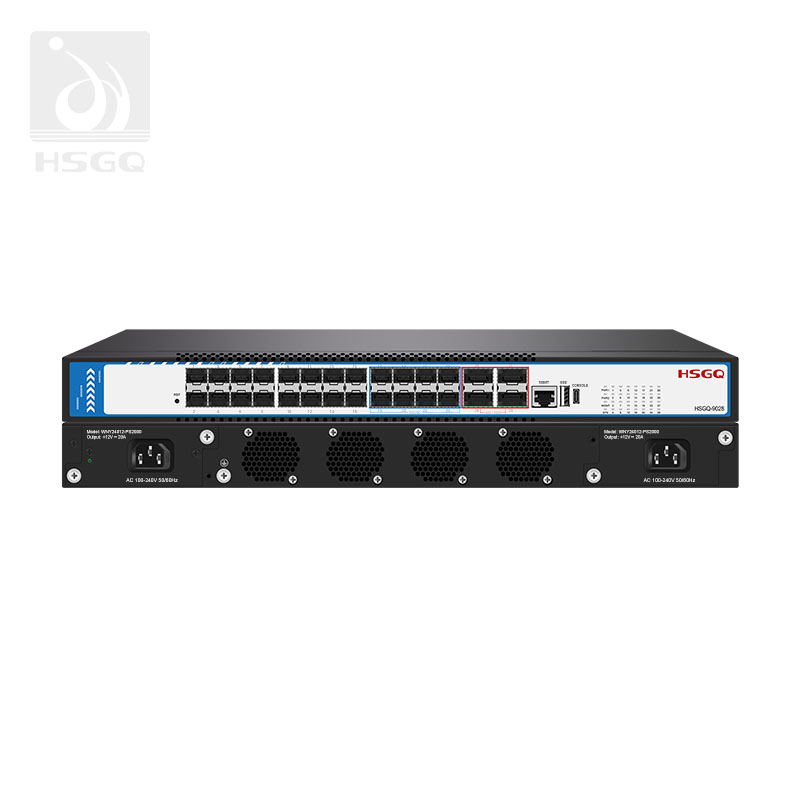

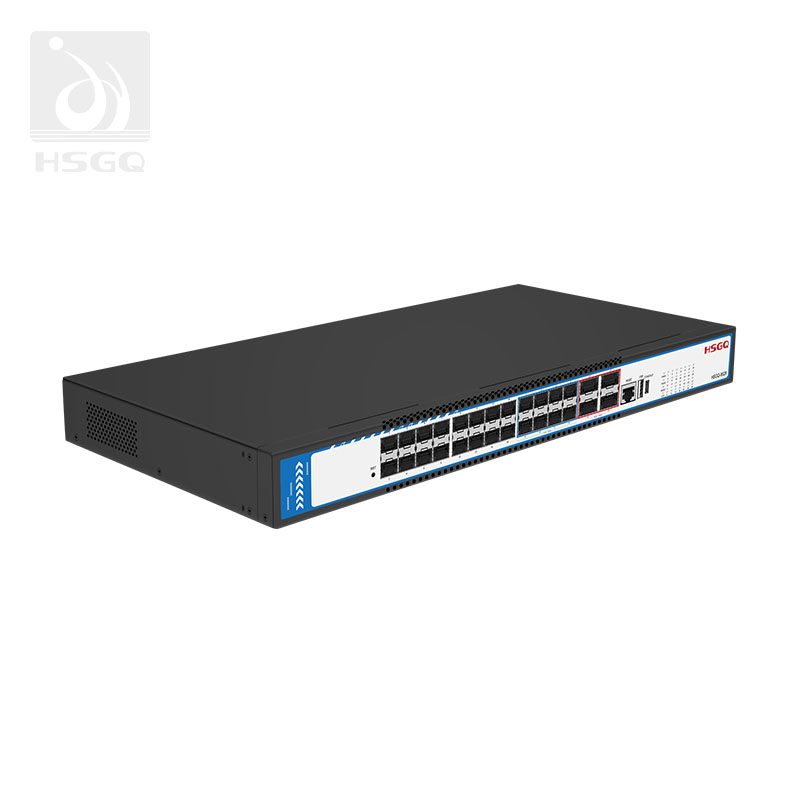

EW-F6055P is a next-generation high-performance data center switch designed for high-performance cloud computing, data centers, and high-end campus networks. It features 16*SFP+ 10 Gigabit fiber module slots, 8*25G SFP28 ports, 4*40G/100G QSFP28 ports, 1*MGMT out-of-band management RJ45 interface, 1*Type-C Console management interface, and 1*USB 3.0 interface.Key Features
- 16*SFP+ 10G optical ports + 8*25G SFP28 + 4*40G/100G QSFP28 + Type-C Console + MGMT out-of-band port + USB 3.0
- ARM dual-core processor, switching capacity up to 880Gbps for data-center performance and density
- Optional dual hot-swappable AC100-240V power supplies
- RTC real-time clock; front/rear cooling airflow design with 4 smart fans, automatic speed adjustment
- STP/RSTP/MSTP link protection and ERPS ring network protocol; static and LACP link aggregation
- IPv4/IPv6 dual protocol stack, static routing, DHCP Server/Relay/Snooping
- Layer 3 routing: RIP, RIPng, OSPFv2/v3, BGP-4, VRRP
- Loop detection with intelligent network self-healing
- Layer 2 and Layer 3 MPLS VPN support for large-scale core networks
- High-precision BFD bidirectional link detection for millisecond-level fault detection and recovery
- Management via Type-C Console, MGMT, Web CLI, Telnet, SSH, SNMP (v1/v2c/v3); bilingual web interface
- MQTT connection to EDMS cloud management platform; full firmware upgrades via HTTP, TFTP, FTP
Technical Parameter
| Item | EW-F6055P |
|---|---|
| Network Standards | IEEE802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3bq, 802.3ba, 802.3x, 802.1x, 802.1q, 802.1p, 802.1d, 802.1w, 802.1s, 802.3ad, 802.1a |

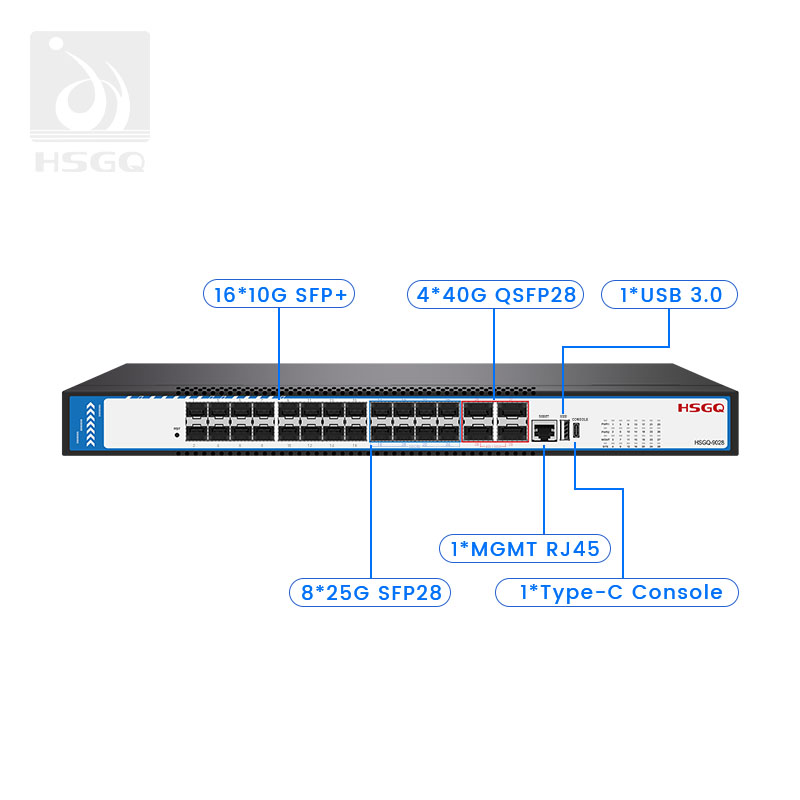

| Interface | 16*SFP+ 10G; 8*25G SFP28; 4*40G/100G QSFP28; 1*MGMT RJ45; 1*Type-C Console; 1*USB 3.0 |
| MAC Address Table | 112K |
| Jumbo Frame | 12K Byte |
| Packet Buffer | 8MB |
| Forwarding Mode | Store-and-forward |
| Switching Capacity | 1.52Tbps |
| Packet Forwarding Rate | 1140Mpps |
| Power Supply | 240W |
| Power Input | AC100-240V, 50Hz ±10%; optional 1+1 hot-swappable |
| Fan | 4 smart fans |
| Static Electricity | Contact ±6KV, air ±8KV |
| Operating Temperature | -10°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90%, non-condensing |
| Storage Humidity | 5% to 90% |
| MTBF | 50,000 hours |
| Dimensions | 440mm x 340mm x 44mm |
