Product Introduction

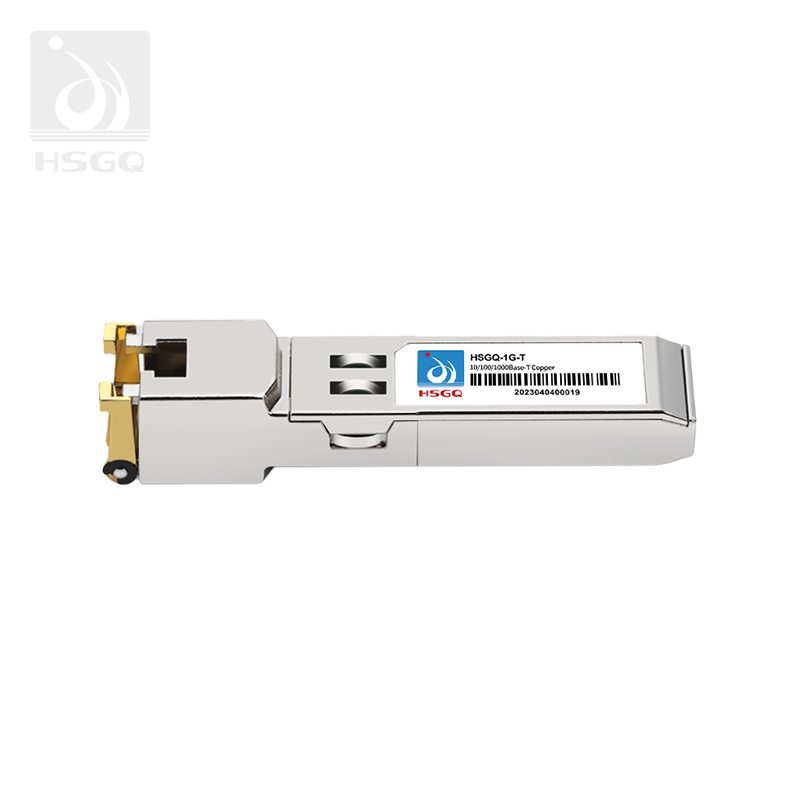

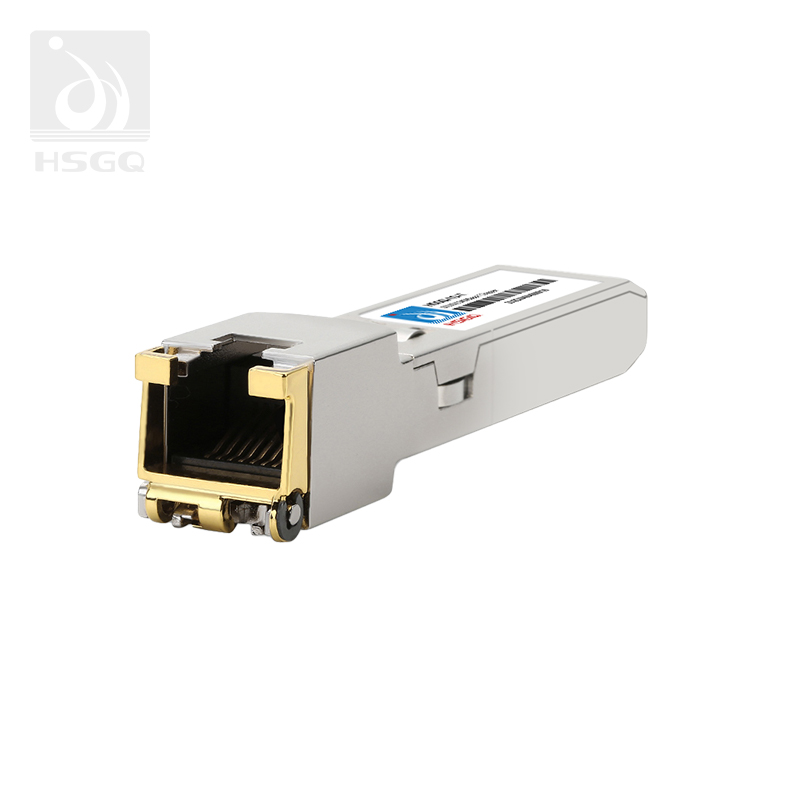

EW-F6079P Copper Small Form Pluggable (SFP) transceiver is a high performance, cost effective module compliant with the Gigabit Ethernet and 1000-BASE-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab, supporting 1000Mbps data rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports 1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2 wire serial CMOS EEPROM protocol.

Key Advantages

• Core Components: select international brand components and chip material suppliers
• High Quality Chip: all “core” upgrade, low power consumption, faster and more stable transmission
• Thick Gold Plated Contacts: enhanced conductivity, can be repeatedly plugged and unplugged
• Compatible with Mainstream Brands: widely compatible with Cisco, Huawei, H3C, TP-LINK, ZTE, Ruijie and other brands of fiber optic equipment
• Plug and Play: easy to install, fast connection to fiber optic equipment

Technical Parameter

Item	EW-F6079P
Supported Standards	IEEE 802.3ab
Transmission Media	CAT.5E
Transmission Distance	100m
Transmission Rate	1000Mbps
Port Type	RJ45
Operating Voltage	3.3V
Case Operating Temperature	0°C ~ 70°C

Application

Applicable to a variety of SFP interface fiber optic communication equipment: fiber optic network switches, network storage devices, fiber optic routers, firewalls, industrial switches, and fiber optic network cards.
