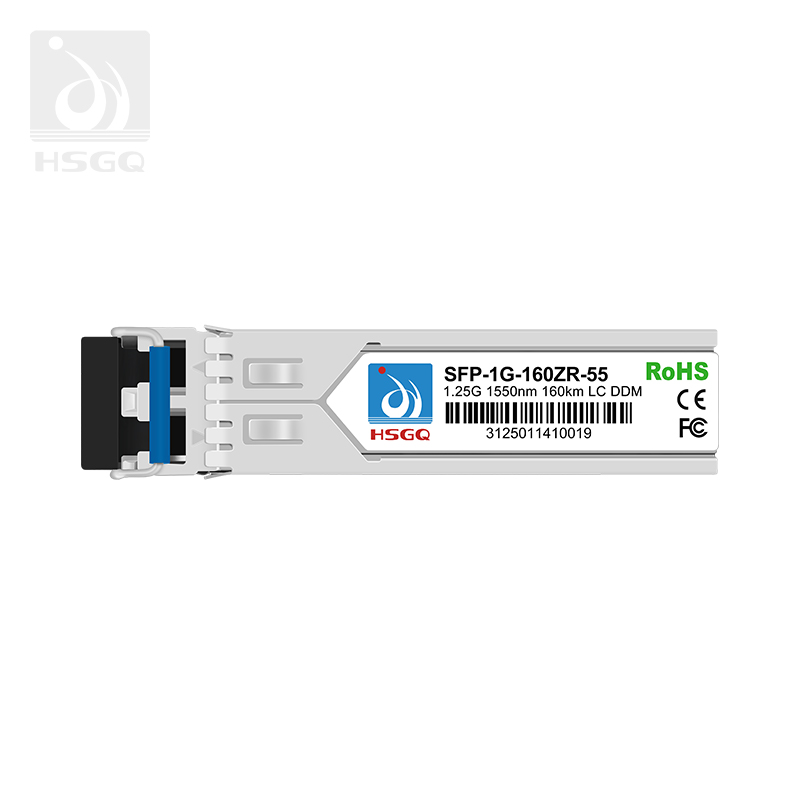

1G SFP Module Hot Swappable for Network Switch
1G SFP Module Hot Swappable for Network Switch
• High-Speed Data Transmission: supports 1Gbps Ethernet transmission rate for enterprise and telecommunications applications.
• Dual-Fiber Transmission: dual-fiber LC interface using two optical fibers for stable, reliable data transmission.
• Single-Mode Fiber: suitable for long-distance transmission, typically several kilometers to tens of kilometers.
• Digital Diagnostic Function (DDM/DOM): real-time monitoring of optical power, temperature and voltage.
• Dual-Fiber Transmission: dual-fiber LC interface using two optical fibers for stable, reliable data transmission.
• Single-Mode Fiber: suitable for long-distance transmission, typically several kilometers to tens of kilometers.
• Digital Diagnostic Function (DDM/DOM): real-time monitoring of optical power, temperature and voltage.
Product Introduction
Cisco, Juniper, Huawei, ZTE, H3C, Mellanox, DELL, Intel, Ubiquiti, FiberHome, Ruijie, D-LINK, Netgear, Ciena, Arista, Brocade, Extreme, Avago, Avaya, Nortel, Alcatel-Lucent, Dahua, Hikvision compatible HSGQ optical transceiver modules are suitable for data centers and telecommunications. The SFP transceivers are high performance, cost effective modules supporting a data-rate of 1.25Gbps and 20km transmission distance on 9/125μm SMF. The transceiver consists of three sections: a FP/DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and DDMI control unit. All modules satisfy class I laser safety requirements. The transceivers are compliant with the Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) and SFF-8472.Key Advantages
- SFP Dual Fiber Single Mode: received and sent data transmitted on two optical fibers (Tx and Rx), suitable for scenarios with high requirements for signal transmission quality and stability
- Widely Compatible: adapted to major brand models, suitable for switches, routers, network cards, transceivers and other SFP-port devices
- DDM Detection: real-time monitoring of module working status helps locate faults, simplify installation and maintenance
- Imported Chips, Stable Transmission: high-quality main control chip and thickened gold-plated finger technology with real-time automatic calibration to avoid error transmission
Product Features
- Uncooled Laser Diode with MQW Structure
- InGaAs PIN-TIA Photodiode Receiver
- Reach 20 km Transmission Distance on 9/125μm SMF
- BIDI Single Mode Transceiver SFP Footprint
- LC or SC Optical Interface are Optional
- Compliant with SFP MSA and SFF-8472
- Digital Diagnostic Monitoring Interface
- Single +3.3V Power Supply
- LVPECL Differential Inputs and Outputs
- LVTTL Signal Detection Output
- Compliant with ITU-T G.957
- Compliant with RoHS and Lead Free
- Metal Enclosure for Lower EMI
Product Applications
- Gigabit Ethernet
- Fiber Channel
- ATM/SONET/SDH/Switch/Router
- Other Optical Transmission Systems
