1*port XGSPON OLT Optical FTTH Access
1*port XGSPON OLT Optical FTTH Access
• High-Speed Bandwidth Adaptation: Designed for gigabit and 2000Mbps broadband packages; the 10G port unlocks the potential of 10G fiber connections.
• Ultra-Low Latency: High-performance SoC chip for hardware-level acceleration of online gaming and remote conferencing.
• Energy-Saving Design: Single-port design consumes less power with more stable heat dissipation, suitable for 24/7 operation.
• Compatibility: Backward compatible with GPON and 10G PON networks, facilitating smooth upgrades for operators.
Product Overview

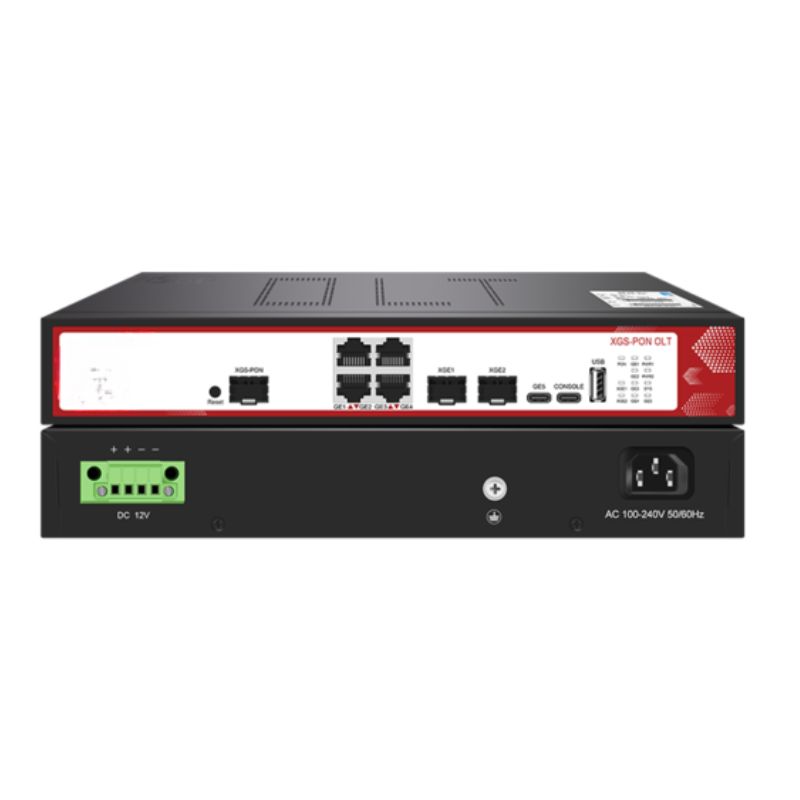

EW-F6017P is a box type XGS-PON/XG-PON OLT with good system stability and high reliability. It supports multiple management methods such as CLI, WEB, and SNMP. The product provides 1*XGS-PON/XG-PON port, 4*GE RJ45, 1*GE Type-C uplink port, and 2*10G SFP+ slots. Users can quickly deploy, configure, and monitor the device via cloud management, greatly reducing labor and time costs during network construction. Suitable for sparsely populated and budget-limited areas, smart industrial parks, commercial buildings, and FTTR. Each PON port supports a maximum split ratio of 1:128 and up to 128 users. 1U height is convenient for installation and maintenance, making it an excellent choice for operators migrating from GPON to 10G PON.
Key Advantages

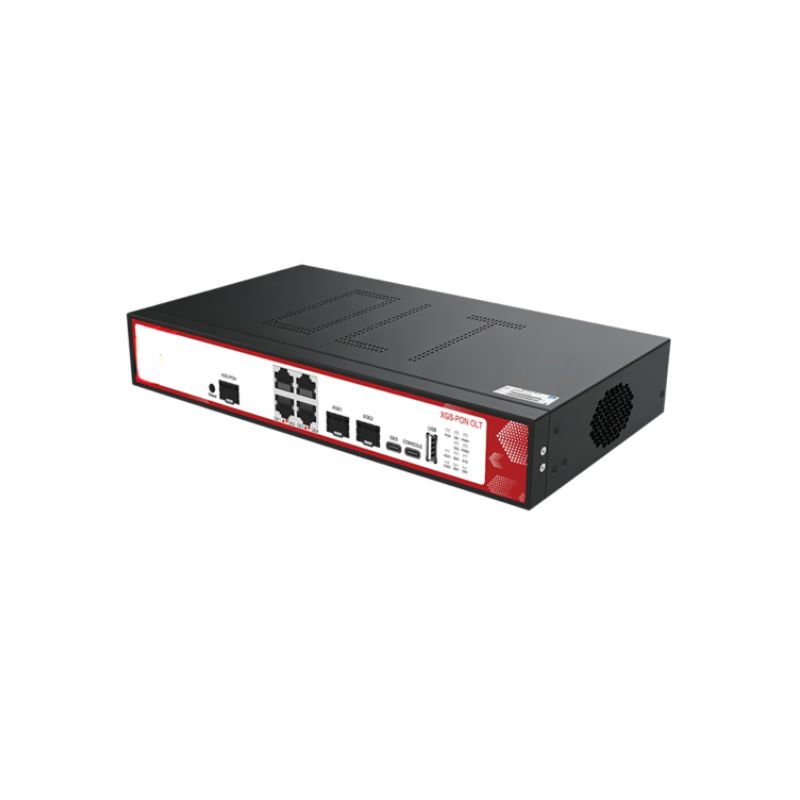

- 13-inch compact chassis, flexible for desktop, hallway, or small cabinet installation, 1U standard height
- XGS pure 10 Gigabit interface, tailored for 4K/8K/VR/live streaming applications
- Type-C Console Port for one-cable device configuration management
- Loopback detection with automatic release mechanism for intelligent network self-healing
- Supports EDMS cloud platform management via built-in MQTT module (MQTT/SNMP protocols)
Technical Parameter
| Item | EW-F6017P |
|---|---|

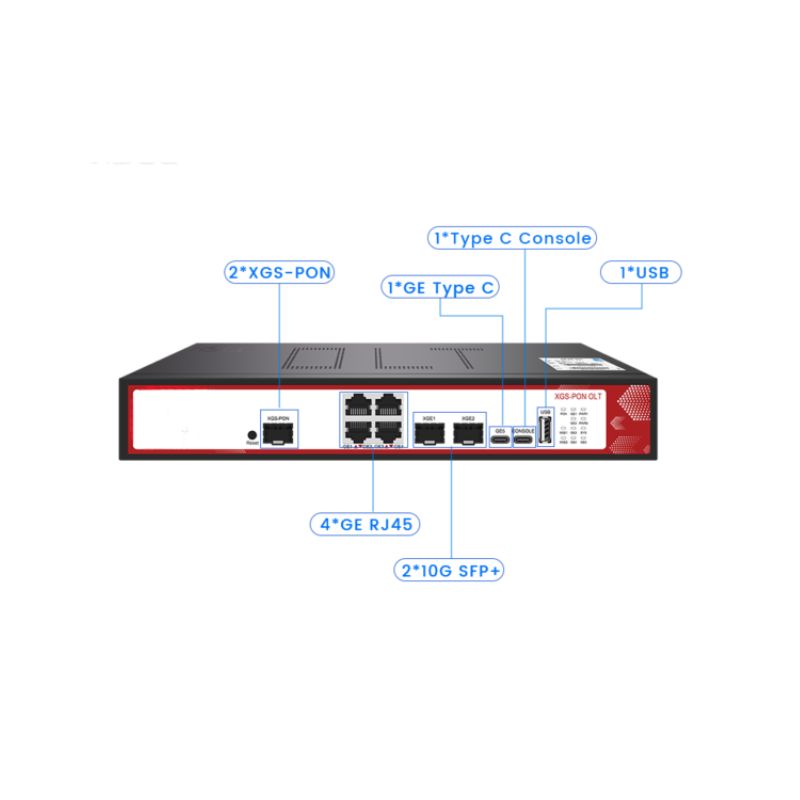

| Interface | 1*XGSPON/XG-PON/GPON, 4*GE RJ45, 1*GE Type-C, 2*10G SFP+, 1*USB 2.0 |
| PON | PON SFP+ slot (20 pin); Type: XG(S)-PON Class N1/N2 |
| Split Ratio | 1:128 (Maximum) |
| Bandwidth | XGSPON: Upstream 9.953Gbps@1270nm / Downstream 9.953Gbps@1577nm; XGPON: Upstream 2.488Gbps@1270nm / Downstream 9.953Gbps@1577nm |
| Flash / DDR | 32MB / 512MB |
| Dimensions | 285*192*44mm |
| Power Supply | AC 100V-240V 50Hz/60Hz; DC 12V |
| Power Consumption | <50W |
| Environment | Work: -10°C~60°C; Storage: -40°C~80°C; Humidity: 10%~95% non-condensing |
Product Features
PON & Cloud Management
- Support auto register, ONU white and deny list, DBA Configuration, P2P
- Cloud Management: Device List, Project Management, Version Release, License Management, Alarm List
- Configuration and Monitoring: CLI, WEB, SNMP/NMS, CLOUD; firmware upgrade, ping and debug
L2/L3 Functions
- VLAN transparent, translate, QinQ; IGMP Snooping/proxy; Port Isolation
- MSTP, RSTP, ERPS, LLDP, LACP
- DHCP, Static Route, OSPF, RIP, VRRP, PIM
- Compliant with ITU-T G.987 and ITU-T G.9807.1
| Interface | 1*XGSPON/XG-PON/GPON, 4*GE RJ45, 1*GE Type-C, 2*10G SFP+, 1*USB 2.0 |
| Split Ratio | 1:128 (Maximum) |
| Bandwidth | XGSPON: 9.953Gbps up/down |
| Dimensions | 285*192*44mm |
| Power Supply | AC 100V-240V 50Hz/60Hz; DC 12V |
| Power Consumption | <50W |
- Support auto register, ONU white and deny list, DBA Configuration
- Cloud Management: Device List, Project Management, License Management
- VLAN transparent, translate, QinQ; IGMP Snooping/proxy
- Compliant with ITU-T G.987 and ITU-T G.9807.1
Product Overview
EW-F6017P is a box type XGS-PON/XG-PON OLT with good system stability and high reliability. It supports multiple management methods such as CLI, WEB, and SNMP. The product provides 1*XGS-PON/XG-PON port, 4*GE RJ45, 1*GE Type-C uplink port, and 2*10G SFP+ slots. Users can quickly deploy, configure, and monitor the device via cloud management, greatly reducing labor and time costs during network construction. Suitable for sparsely populated and budget-limited areas, smart industrial parks, commercial buildings, and FTTR. Each PON port supports a maximum split ratio of 1:128 and up to 128 users. 1U height is convenient for installation and maintenance, making it an excellent choice for operators migrating from GPON to 10G PON.Key Advantages
- 13-inch compact chassis, flexible for desktop, hallway, or small cabinet installation, 1U standard height
- XGS pure 10 Gigabit interface, tailored for 4K/8K/VR/live streaming applications
- Type-C Console Port for one-cable device configuration management
- Loopback detection with automatic release mechanism for intelligent network self-healing
- Supports EDMS cloud platform management via built-in MQTT module (MQTT/SNMP protocols)
Technical Parameter
| Item | EW-F6017P |
|---|---|
| Interface | 1*XGSPON/XG-PON/GPON, 4*GE RJ45, 1*GE Type-C, 2*10G SFP+, 1*USB 2.0 |
| PON | PON SFP+ slot (20 pin); Type: XG(S)-PON Class N1/N2 |
| Split Ratio | 1:128 (Maximum) |
| Bandwidth | XGSPON: Upstream 9.953Gbps@1270nm / Downstream 9.953Gbps@1577nm; XGPON: Upstream 2.488Gbps@1270nm / Downstream 9.953Gbps@1577nm |
| Flash / DDR | 32MB / 512MB |
| Dimensions | 285*192*44mm |
| Power Supply | AC 100V-240V 50Hz/60Hz; DC 12V |
| Power Consumption | <50W |
| Environment | Work: -10°C~60°C; Storage: -40°C~80°C; Humidity: 10%~95% non-condensing |
Product Features
PON & Cloud Management
- Support auto register, ONU white and deny list, DBA Configuration, P2P
- Cloud Management: Device List, Project Management, Version Release, License Management, Alarm List
- Configuration and Monitoring: CLI, WEB, SNMP/NMS, CLOUD; firmware upgrade, ping and debug
L2/L3 Functions
- VLAN transparent, translate, QinQ; IGMP Snooping/proxy; Port Isolation
- MSTP, RSTP, ERPS, LLDP, LACP
- DHCP, Static Route, OSPF, RIP, VRRP, PIM
- Compliant with ITU-T G.987 and ITU-T G.9807.1
