2-Port XGS-PON/GPON Combo OLT with 2×10G SFP+
2-Port XGS-PON/GPON Combo OLT with 2×10G SFP+
• 2-port XGS-PON/GPON Combo OLT with 4 GE RJ45 and 2×10G SFP+ uplink interfaces.
• Supports up to 1:128 split per PON port and up to 256 users in total.
• Provides flexible DBA, VLAN/QinQ, multicast, ACL, QoS, IPv4/IPv6, and Layer 3 routing functions.
• Compact 13-inch, 1U chassis for FTTH, FTTR, commercial buildings, industrial parks, and WiFi access networks.
Product Overview

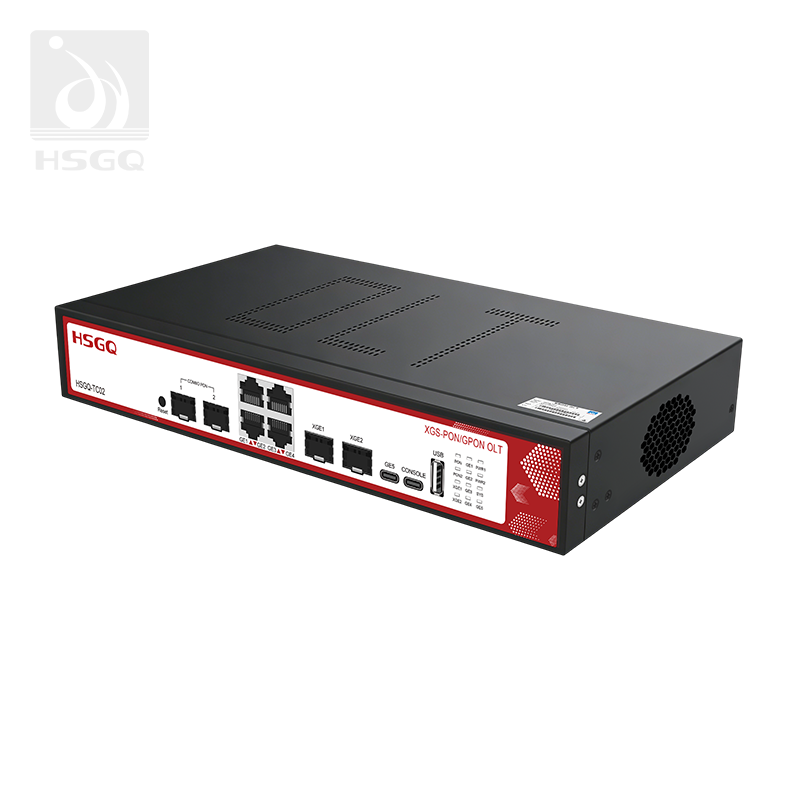

HSGQ-TC02 is a box type XGS-PON/GPON Combo OLT with good system stability and high reliability. It supports multiple management methods such as CLI, WEB, and SNMP. The product provides 2*XGS-PON/XG-PON/GPON ports, 4*GE RJ45 uplink ports, and 2*10G SFP+ slots. Each PON port supports a maximum split ratio of 1:128 and up to 256 users across the two PON ports. 1U height is convenient for installation and maintenance, making it an excellent choice for operators migrating from GPON to 10G PON.
Key Advantages
- 13-inch compact chassis, flexible for desktop, hallway, or small cabinet installation, 1U standard height
- Two PON ports for expanded FTTH deployment across two optical distribution branches
- XGS-PON 10G uplink interfaces for 4K/8K/VR/live streaming applications
- Type-C Console Port for one-cable configuration management
- Supports multiple protocols: IPv4/IPv6 dual stack, static routing, RIP, OSPF, VRRP redundancy, DHCP, PIM, IGMP Snooping
- Loopback detection with automatic release mechanism
- Supports cloud platform management via built-in MQTT module
Technical Parameter
| Item | EW-F6015P |
|---|---|
| User Interface | 2*XGSPON/XG-PON/GPON, 4*GE RJ45, 1*GE Type-C, 2*10G SFP+, 1*USB 2.0 |
| PON | PON SFP+ slot (20 pin); XG(S)-PON Class N1/N2; GPON Class C++/C+++ |
| Split Ratio | 1:128 per PON port |
| Bandwidth | XGSPON: 9.953Gbps up/down; GPON: Upstream 1.244Gbps / Downstream 2.488Gbps |
| Flash / DDR | 32MB / 512MB |
| Dimensions | 285*192*44mm |
| Power Supply | AC 100V-240V 50Hz/60Hz; DC 12V |
| Power Consumption | <50W |
| Environment | Work: -10°C~55°C; Storage: -40°C~80°C; Humidity: 10%~95% non-condensing |
| Max Users | Up to 256 across two PON ports |
Product Features
PON & Cloud Management
- Support auto register, ONU white and deny list, DBA Configuration
- Cloud Management: Device List, Project Management, Version Release, License Management, Alarm List
- Configuration and Monitoring: CLI, WEB, SNMP/NMS, CLOUD; firmware upgrade, ping and debug
L2/L3 Functions
- VLAN transparent, translate, QinQ; IGMP Snooping/proxy; Port Isolation
- MSTP, RSTP, ERPS, LLDP, LACP
- DHCP, Static Route, OSPF, RIP
- Compliant with ITU-T G.987, G.9807.1, and G.984.x
| User Interface | 2*XGSPON/XG-PON/GPON, 4*GE RJ45, 1*GE Type-C, 2*10G SFP+ |
| Split Ratio | 1:128 per PON port |
| Bandwidth | XGSPON: 9.953Gbps up/down |
| Dimensions | 285*192*44mm |
| Power Supply | AC 100V-240V 50Hz/60Hz; DC 12V |
| Power Consumption | <50W |
| Max Users | Up to 256 |
- Two PON ports for expanded FTTH deployment
- Support auto register, ONU white and deny list, DBA Configuration
- IPv4/IPv6 dual stack, static routing, RIP, OSPF, VRRP, DHCP, PIM, IGMP Snooping
- Compliant with ITU-T G.987, G.9807.1, and G.984.x
