• Routing Function: routing based on IP addresses to achieve interconnection between different networks.
• Management Function: rich management functions, configurable via Web interface, command line, etc.
• VLAN Function: divides virtual local area networks (VLANs) for network isolation and security.
• QoS Function: prioritizes different traffic to ensure smooth operation of key businesses.
• Application Scenarios: small/medium enterprise networks, data centers, campus networks, Internet access.
• Management Function: rich management functions, configurable via Web interface, command line, etc.
• VLAN Function: divides virtual local area networks (VLANs) for network isolation and security.
• QoS Function: prioritizes different traffic to ensure smooth operation of key businesses.
• Application Scenarios: small/medium enterprise networks, data centers, campus networks, Internet access.
Product Overview

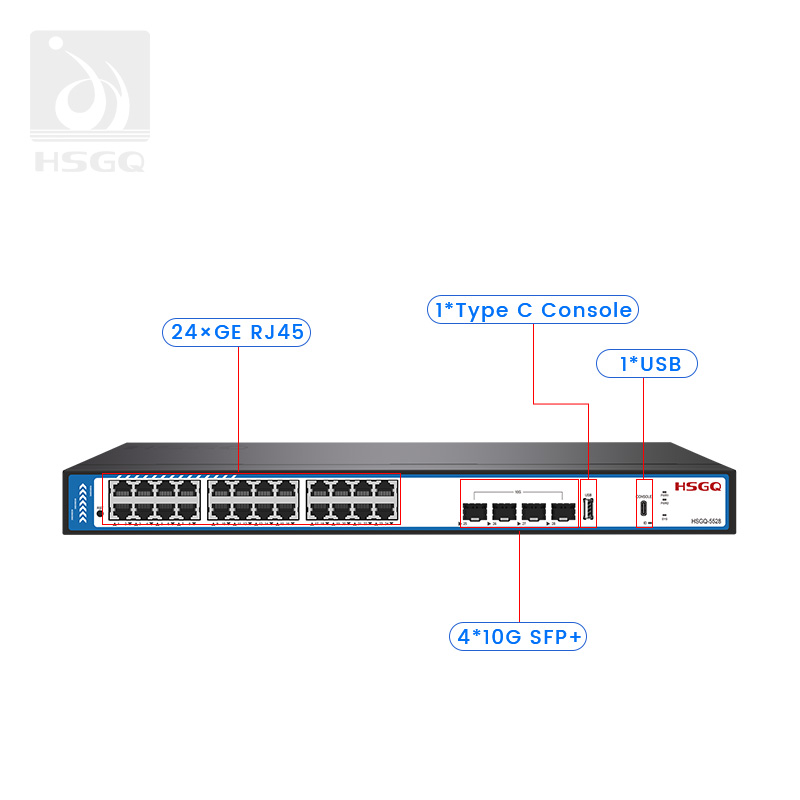

24*GE+4*10G SFP+ L3 Managed Industrial Switch, supporting 24*GE, 4*SFP+ port, 1*Console port, providing complete security policy, perfect QoS policy and rich VLAN function, easy to manage and maintain, meeting the networking and access requirements of enterprises, communities, hotels, office networks and campus networks.Key Features
- Supports RTC (Real-Time Clock) function using Crystal, Clock Chip, SuperCapacitor solutions for industrial timekeeping continuity
- Layer 3 Routing Protocol Support: IPv4/IPv6 dual stack, static routing, RIP, OSPF, VRRP redundancy, DHCP, PIM, IGMP Snooping
- Loop Detection with automatic release mechanism, achieving intelligent self-healing of the network
- EDMS Cloud Management Platform: built-in MQTT module supporting connectivity via MQTT/SNMP protocols for centralized management
Technical Parameter
| Item | EW-F6064P |
|---|---|
| Downlink Ports | 24*GE RJ45 |
| Uplink Ports | 4*10G SFP+ |
| Console | 1xRS-232 (115200,8,N,1) |
| Standards | IEEE 802.3, 802.3u, 802.ab, 802.3z, 802.3x, 802.1Q, 802.1p, 802.3ad, 802.1d, 802.1x |
| Forwarding Modes | Store and Forward |
| Packet Buffer | 12Mbit |
| MAC Table | 32k |
| Switching Capacity | 128Gbps /non-blocking |
| Packet Forwarding Rate | 95Mpps |
| Jumbo Frame | 12kB |

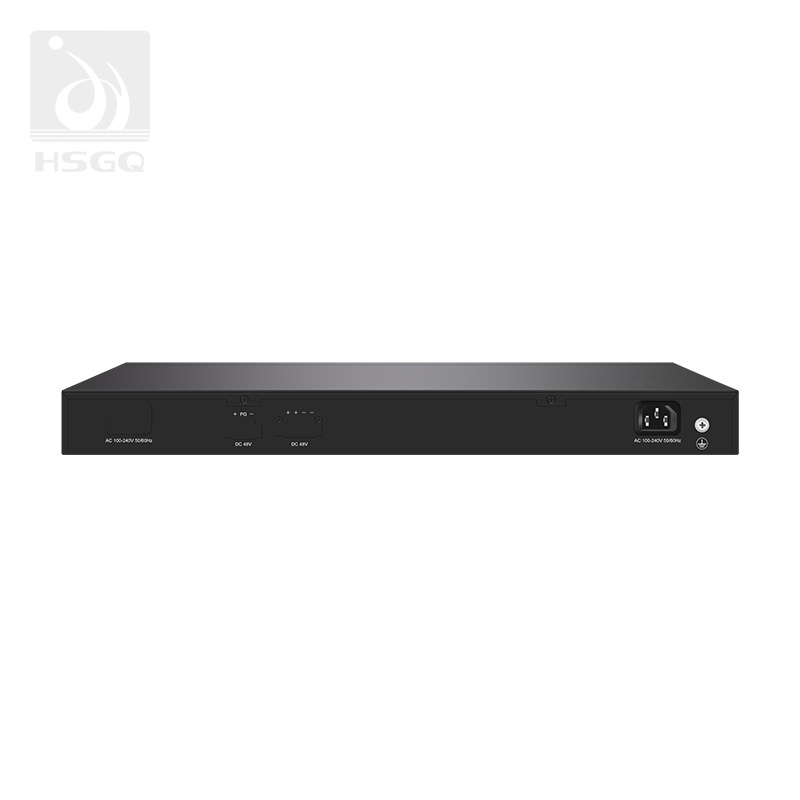

| Input Voltage | AC100V-240V, 50Hz/60Hz |
| Power Consumption | 35W |
| ESD Protection | 8kV Contact Discharge, 15kV Air Discharge (IEC61000-4-2) |
| MTBF | 100,000 hours (Telcordia SR-332, 25°C) |
| Operating Temperature | -10°C~55°C |
| Storage Temperature | -40°C~85°C |
| Operating Humidity | 10%~95% (Non-condensation) |
| Storage Humidity | 5%~95% (Non-condensation) |
| Dimensions | 440*220*44mm (W*D*H) |
| Net Weight | 1.9kg |
| Material | Metal |
| Installation | Desktop / rack-mounted |
Key Feature
- Supports IEEE 802.1d, 802.1w, 802.1s, 802.1p, 802.3, 802.3u, 802.3x, 802.3z, 802.3ab, 802.3ae standards
- L3 Management: DHCP Server, DHCP Snooping, DHCP Relay, Static Routing, RIP and OSPF
- Supports RSTP/MSTP
- Supports VLAN function, Port VLAN, translation and Q-in-Q
