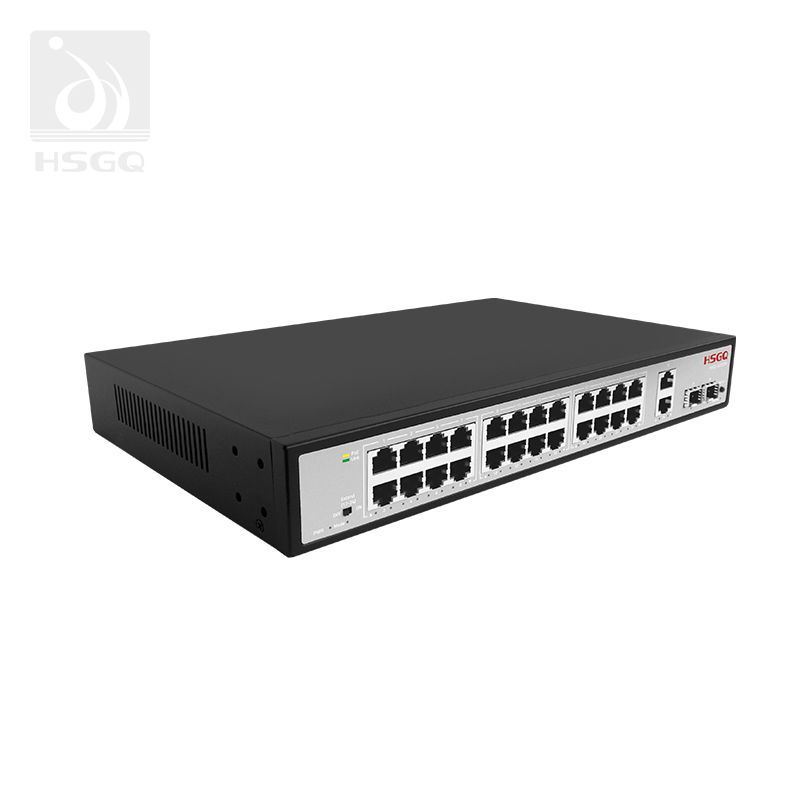

24*Port Black PoE Switch for IP Camera
24*Port Black PoE Switch for IP Camera
Port Density: 24 ports can connect up to 24 devices simultaneously, greatly improving network scalability.
Data Transmission: Supports Gigabit Ethernet for high-speed and stable data transmission for HD video and large file transfers.
Flexible Configuration: Adaptable to different network requirements to improve performance and security.
Easy to Manage: Web interface or command line interface for user configuration and management.
Product Overview
HSGQ-SG2024P is a 28-port gigabit intelligent standard PoE switch, using high-quality high-speed network IC and PoE chip, meeting the 802.3af/802.3at standard for 10/100/1000M ethernet. The PoE power port can automatically detect and power devices that comply with IEEE802.3af/at standards. Mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband.
Key Advantages
- Two Types of Uplink Ports: supports electrical modules and optical modules, flexibly configurable
- With DIP Switch: supports Default and Extend modes
- Support PoE QoS Priority, priority ranges from 1 to 24, enabled by default
- AI mode automatically enabled at 10M speed for Ports 17-24 in Extend mode, for easy low-cost remote networking
- Standard 1U height rack-mounted, wall or desktop installation
Technical Parameter
| Item | EW-F6038P |
|---|---|
| Ethernet | 24*Gigabit PoE Ports, 2*Gigabit Ethernet ports, 2*Gigabit SFP Ports |
| Chipset | EN8850DH, RTL8238B |
| Bandwidth | 56Gbps |
| Pack Forward Rate | 41.644Mpps |
| MAC Address | 8K |
| PoE Protocol | IEEE802.3af (15.4W); IEEE802.3at (30W) |
| PoE Power | Non-PoE board power max 15W; PoE power max 280W |
| Power Supply | AC 100-240V 50/60Hz; 52V/5.76A |
| Dimensions | 320*207*44mm |
| Weight | N.W 1.967kg; G.W 2.497kg |
| Working Temperature | -10~50°C |
Product Features
- 24×10/100/1000M PoE Ports + 2*Gigabit Uplink + 2*Gigabit SFP Ports
- Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standard
- AI mode automatically enabled at 10M speed for Ports 17-24 in Extend mode
- PoE priority supported, from port 1 to port 24, enabled by default
- Zero configuration feature, automatically supplied to adaptive equipment
| Ethernet | 24*Gigabit PoE Ports, 2*Gigabit Ethernet, 2*Gigabit SFP Ports |
| Chipset | EN8850DH, RTL8238B |
| Bandwidth | 56Gbps |
| PoE Power | Max 280W |
| Dimensions | 320*207*44mm |
| Weight | N.W 1.967kg |
- 24×10/100/1000M PoE Ports + 2*Gigabit Uplink + 2*Gigabit SFP Ports
- Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standard
- PoE priority supported, enabled by default
- AI mode automatically enabled at 10M speed for Ports 17-24 in Extend mode
Product Overview
EW-F6038P is a 28-port gigabit intelligent standard PoE switch, using high-quality high-speed network IC and PoE chip, meeting the 802.3af/802.3at standard for 10/100/1000M ethernet. The PoE power port can automatically detect and power devices that comply with IEEE802.3af/at standards. Mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband.Key Advantages
- Two Types of Uplink Ports: supports electrical modules and optical modules, flexibly configurable
- With DIP Switch: supports Default and Extend modes
- Support PoE QoS Priority, priority ranges from 1 to 24, enabled by default
- AI mode automatically enabled at 10M speed for Ports 17-24 in Extend mode, for easy low-cost remote networking
- Standard 1U height rack-mounted, wall or desktop installation
Technical Parameter
| Item | EW-F6038P |
|---|---|
| Ethernet | 24*Gigabit PoE Ports, 2*Gigabit Ethernet ports, 2*Gigabit SFP Ports |
| Chipset | EN8850DH, RTL8238B |
| Bandwidth | 56Gbps |
| Pack Forward Rate | 41.644Mpps |
| MAC Address | 8K |
| PoE Protocol | IEEE802.3af (15.4W); IEEE802.3at (30W) |
| PoE Power | Non-PoE board power max 15W; PoE power max 280W |
| Power Supply | AC 100-240V 50/60Hz; 52V/5.76A |
| Dimensions | 320*207*44mm |
| Weight | N.W 1.967kg; G.W 2.497kg |
| Working Temperature | -10~50°C |
Product Features
- 24×10/100/1000M PoE Ports + 2*Gigabit Uplink + 2*Gigabit SFP Ports
- Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standard
- AI mode automatically enabled at 10M speed for Ports 17-24 in Extend mode
- PoE priority supported, from port 1 to port 24, enabled by default
- Zero configuration feature, automatically supplied to adaptive equipment
