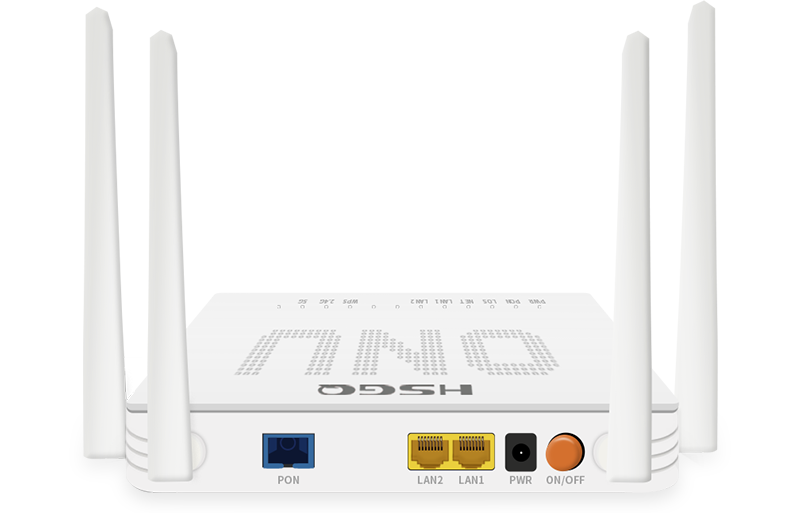

2GE+2.4G+5.8G(1200M)wifi XPON ONU
2GE+2.4G+5.8G(1200M)wifi XPON ONU
EW-F6035P: 2*10/100/1000M Ethernet interface (RJ45), 1 EPON & GPON adaptive interface, 2.4G WIFI & 5G WIFI.
Product Overview
HSGQ-X200DW provides 2*10/100/1000M Ethernet interfaces, an EPON & GPON adaptive PON interface, and 2.4G/5G dual-band WiFi for reliable fiber-to-the-home broadband access.
Technical Parameter
| Item | EW-F6035P |
|---|---|
| User Interface | 2*10/100/1000M RJ45, 2.4G WiFi/5G WiFi |
| PON | EPON&GPON mode adaptive, SC-UPC/SC-APC; GPON: upstream 1.25Gbps/downstream 2.5Gbps |
| Size | 162mm(L)x112mm(W)x30mm(H) |
| Power supply | 12V 1.5A DC |
| Power consumption | <9W |
| POTS Port | 1*RJ11, Max 1km distance, Balanced Ring 55V RMS |
| Management | WEB/TELNET/TR069/OMCI/OAM |
Product Features
WiFi Features (2.4G/5G)
- IEEE 802.11n compliant, full 802.11b/g/ac legacy compatibility
- Two-stream spatial multiplexing up to 866 Mbps PHY data rates
- Multi-SSID (up to 4), automatic channel selection, hide SSID
General
- Support device-based rate limitation and bandwidth control
- Compliant with IEEE802.3ah & ITU-T G.984.x standard
- Up to 20KM transmission distance
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto-discovery / Link detection / remote upgrade of software
- Support multi-SSID (Maximum 4 SSID), automatic channel selection, hide SSID
- Support wireless security: 64/128 bit WEP, 802.1x, WPA and WPA2
| User Interface | 2*10/100/1000M RJ45, 2.4G WiFi/5G WiFi |
| Size | 162mm(L)x112mm(W)x30mm(H) |
| Power supply | 12V 1.5A DC |
| Power consumption | <9W |
- Support device-based rate limitation and bandwidth control
- Compliant with IEEE802.3ah & ITU-T G.984.x standard
- Up to 20KM transmission distance
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto-discovery / Link detection / remote upgrade of software
- Support multi-SSID (Maximum 4 SSID), automatic channel selection, hide SSID
- Support wireless security: 64/128 bit WEP, 802.1x, WPA and WPA2
Product Overview
EW-F6035P provides 2*10/100/1000M Ethernet interfaces, an EPON & GPON adaptive PON interface, and 2.4G/5G dual-band WiFi for reliable fiber-to-the-home broadband access.Technical Parameter
| Item | EW-F6035P |
|---|---|
| User Interface | 2*10/100/1000M RJ45, 2.4G WiFi/5G WiFi |
| PON | EPON&GPON mode adaptive, SC-UPC/SC-APC; GPON: upstream 1.25Gbps/downstream 2.5Gbps |
| Size | 162mm(L)x112mm(W)x30mm(H) |
| Power supply | 12V 1.5A DC |
| Power consumption | <9W |
| POTS Port | 1*RJ11, Max 1km distance, Balanced Ring 55V RMS |
| Management | WEB/TELNET/TR069/OMCI/OAM |
Product Features
WiFi Features (2.4G/5G)
- IEEE 802.11n compliant, full 802.11b/g/ac legacy compatibility
- Two-stream spatial multiplexing up to 866 Mbps PHY data rates
- Multi-SSID (up to 4), automatic channel selection, hide SSID
General
- Support device-based rate limitation and bandwidth control
- Compliant with IEEE802.3ah & ITU-T G.984.x standard
- Up to 20KM transmission distance
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto-discovery / Link detection / remote upgrade of software
- Support multi-SSID (Maximum 4 SSID), automatic channel selection, hide SSID
- Support wireless security: 64/128 bit WEP, 802.1x, WPA and WPA2
