2*Port XGSPON OLT Fiber Connection
2*Port XGSPON OLT Fiber Connection
• High Bandwidth Guarantee: Symmetrical 10Gbps bandwidth for 8K video, VR/AR, and enterprise cloud desktops.
• Compact Design: 1U height, around 200mm depth, installable in standard 19-inch racks, outdoor racks, or wall-mounted.
• L2/L3 Layer Functionality: VLAN segmentation, static routing, multicast (IGMP Snooping/Proxy), and comprehensive QoS priority scheduling.
• High Reliability: Dual power supply redundancy (AC/DC optional) and Type B PON protection switching.
Product Overview

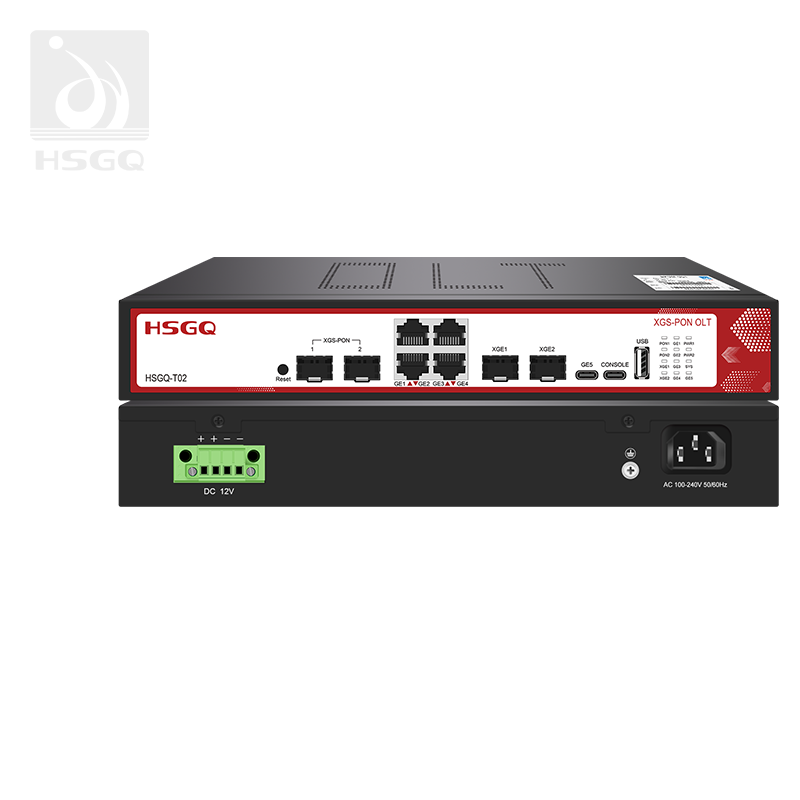

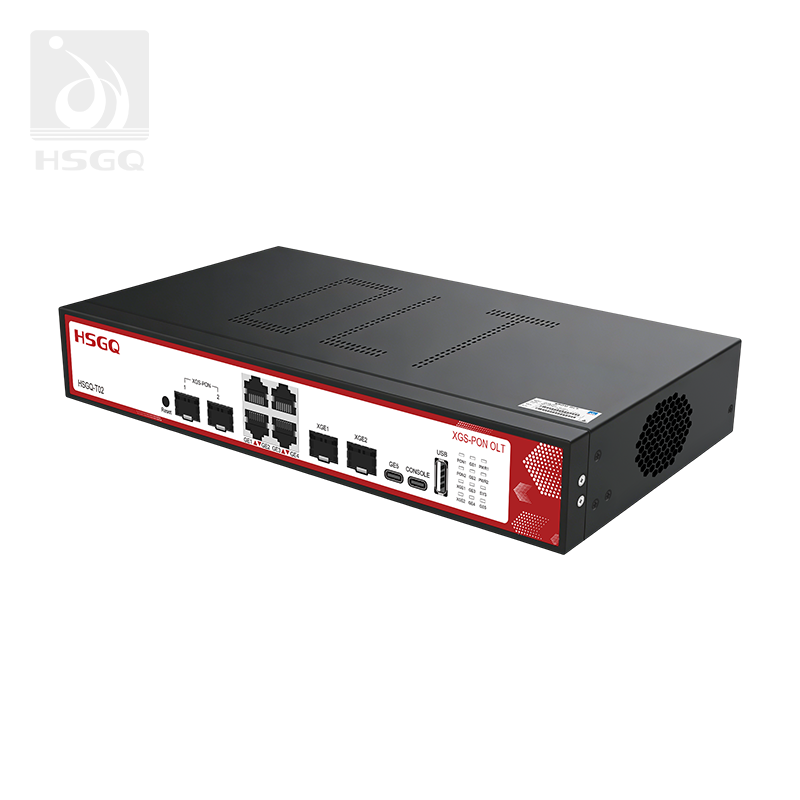

HSGQ-T02 is a box type XGS-PON/XG-PON OLT with good system stability and high reliability. It supports multiple management methods such as CLI, WEB, and SNMP. The product provides 2*XGS-PON/XG-PON ports, 4*GE RJ45, 1*GE Type-C uplink port, and 2*10G SFP+ slots. Suitable for sparsely populated and budget-limited areas, smart industrial parks, commercial buildings, and FTTR. Each PON port supports a maximum split ratio of 1:128 and up to 256 users. It is an excellent choice for operators to migrate from GPON to 10G PON.
Key Advantages
- 13-inch compact chassis, flexible for desktop, hallway, or small cabinet installation, 1U standard height
- A powerful tool for low-density, high-bandwidth areas: 10G symmetrical speed, PON Type B protection, suitable for villa areas, large apartments, five-star hotels
- Type-C Console Port for one-cable configuration management
- Loopback detection with automatic release mechanism
- Software redundancy design: redundant power supplies, redundant link protection, VRRP redundancy
- Supports EDMS cloud platform management via built-in MQTT module
Technical Parameter
| Item | EW-F6014P |
|---|---|
| Interface | 2*XGSPON/XG-PON/GPON, 4*GE RJ45, 1*GE Type-C, 2*10G SFP+, 1*USB 2.0 |
| PON | PON SFP+ slot (20 pin); XG(S)-PON Class N1/N2 |
| Split Ratio | 1:128 (Maximum) |
| Bandwidth | XGSPON: Upstream 9.953Gbps@1270nm / Downstream 9.953Gbps@1577nm |
| Flash / DDR | 32MB / 512MB |
| Dimensions | 285*192*44mm |
| Power Supply | AC 100V-240V 50Hz/60Hz; DC 12V |
| Power Consumption | <50W |
| Environment | Work: -10°C~60°C; Storage: -40°C~80°C; Humidity: 10%~95% non-condensing |
Product Features
PON & Cloud Management
- Support auto register, ONU white and deny list, DBA Configuration, P2P
- Cloud Management: Device List, Project Management, Version Release, License Management, Alarm List
- Configuration and Monitoring: CLI, WEB, SNMP/NMS, CLOUD; firmware upgrade, ping and debug
L2/L3 Functions
- VLAN transparent, translate, QinQ; IGMP Snooping/proxy; Port Isolation
- MSTP, RSTP, ERPS, LLDP, LACP
- DHCP, Static Route, OSPF, RIP, VRRP, PIM
- Compliant with ITU-T G.987 and ITU-T G.9807.1
| Interface | 2*XGSPON/XG-PON/GPON, 4*GE RJ45, 1*GE Type-C, 2*10G SFP+ |
| Split Ratio | 1:128 (Maximum) |
| Bandwidth | XGSPON: 9.953Gbps up/down |
| Dimensions | 285*192*44mm |
| Power Supply | AC 100V-240V 50Hz/60Hz; DC 12V |
| Power Consumption | <50W |
- 10G symmetrical speed with PON Type B protection
- Support auto register, ONU white and deny list, DBA Configuration, P2P
- Dual power supply redundancy (AC/DC optional)
- Compliant with ITU-T G.987 and ITU-T G.9807.1
Product Overview
EW-F6014P is a box type XGS-PON/XG-PON OLT with good system stability and high reliability. It supports multiple management methods such as CLI, WEB, and SNMP. The product provides 2*XGS-PON/XG-PON ports, 4*GE RJ45, 1*GE Type-C uplink port, and 2*10G SFP+ slots. Suitable for sparsely populated and budget-limited areas, smart industrial parks, commercial buildings, and FTTR. Each PON port supports a maximum split ratio of 1:128 and up to 256 users. It is an excellent choice for operators to migrate from GPON to 10G PON.Key Advantages
- 13-inch compact chassis, flexible for desktop, hallway, or small cabinet installation, 1U standard height
- A powerful tool for low-density, high-bandwidth areas: 10G symmetrical speed, PON Type B protection, suitable for villa areas, large apartments, five-star hotels
- Type-C Console Port for one-cable configuration management
- Loopback detection with automatic release mechanism
- Software redundancy design: redundant power supplies, redundant link protection, VRRP redundancy
- Supports EDMS cloud platform management via built-in MQTT module
Technical Parameter
| Item | EW-F6014P |
|---|---|
| Interface | 2*XGSPON/XG-PON/GPON, 4*GE RJ45, 1*GE Type-C, 2*10G SFP+, 1*USB 2.0 |
| PON | PON SFP+ slot (20 pin); XG(S)-PON Class N1/N2 |
| Split Ratio | 1:128 (Maximum) |
| Bandwidth | XGSPON: Upstream 9.953Gbps@1270nm / Downstream 9.953Gbps@1577nm |
| Flash / DDR | 32MB / 512MB |
| Dimensions | 285*192*44mm |
| Power Supply | AC 100V-240V 50Hz/60Hz; DC 12V |
| Power Consumption | <50W |
| Environment | Work: -10°C~60°C; Storage: -40°C~80°C; Humidity: 10%~95% non-condensing |
Product Features
PON & Cloud Management
- Support auto register, ONU white and deny list, DBA Configuration, P2P
- Cloud Management: Device List, Project Management, Version Release, License Management, Alarm List
- Configuration and Monitoring: CLI, WEB, SNMP/NMS, CLOUD; firmware upgrade, ping and debug
L2/L3 Functions
- VLAN transparent, translate, QinQ; IGMP Snooping/proxy; Port Isolation
- MSTP, RSTP, ERPS, LLDP, LACP
- DHCP, Static Route, OSPF, RIP, VRRP, PIM
- Compliant with ITU-T G.987 and ITU-T G.9807.1
