4 Port GPON OLT Optical for FTTH Access
4 Port GPON OLT Optical for FTTH Access

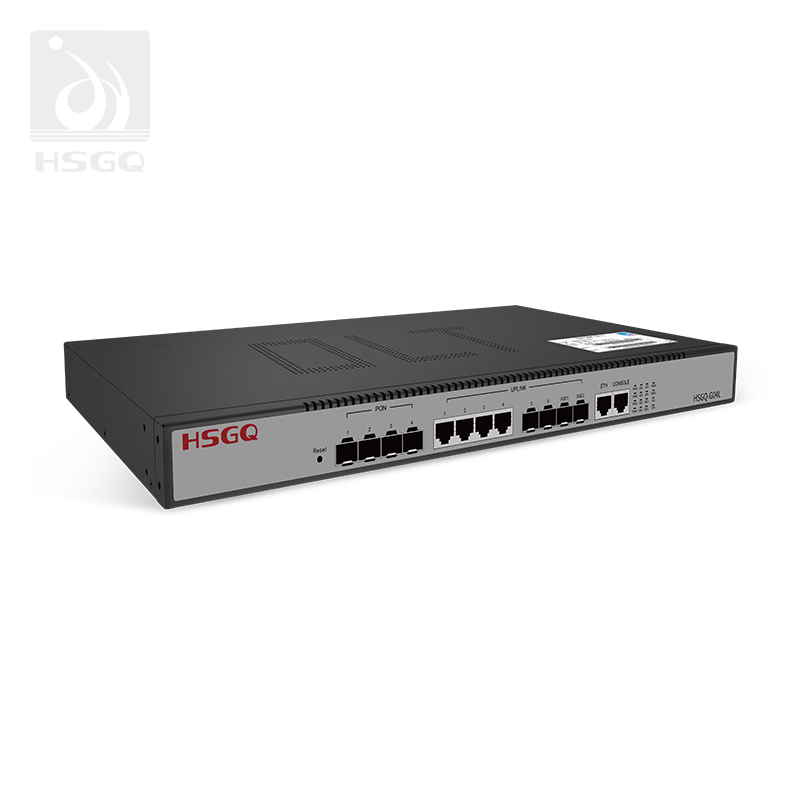

• Structure: 4*fixed GPON port; 1:128 split ratio on single PON port; 4*GE RJ45; 2*GE SFP; 2*10G SFP+; 1*console port; 1*ETH port.
• High Rate: Provides a downstream rate of up to 2.5Gbps and an upstream rate of 1.25Gbps.
• Large Capacity: A single GPON port can support multiple users and improve network utilization.
• Application Scenario: home broadband/small-medium enterprise network/community broadband.
Product Overview
EW-F6012P is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, with strong GPON access capacity, carrier-class reliability and complete security functions. It supports long-distance optical fiber access thanks to its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. It can be used together with a network management system to provide a comprehensive access solution.
Key Advantages
- 4 fixed GPON ports with 1:128 split ratio on a single PON port
- 4*GE RJ45, 2*GE SFP, 2*10G SFP+ uplink options
- Two types of uplink ports: electrical and optical modules, flexibly configurable
- Open API for easy user management
- Batch configuration, restart and upgrade of ONTs
- Real-time port traffic/system monitoring
- Built-in multi-layer security: ACL, AAA management, 802.1X authentication
- Default single power supply, optional dual power supply (dual AC input)
Technical Parameter
| Item | EW-F6012P |
|---|---|
| Switching Capacity | 67Gbps |
| Service Port | 4*PON port, 4*GE RJ45, 2*GE SFP port, 2*10GE SFP+ port |
| Redundancy Design | Dual power supply; supports double AC input, double DC input and AC+DC input |
| Power Supply | AC: input 100~240V 50/60Hz |
| Power Consumption | 50W |

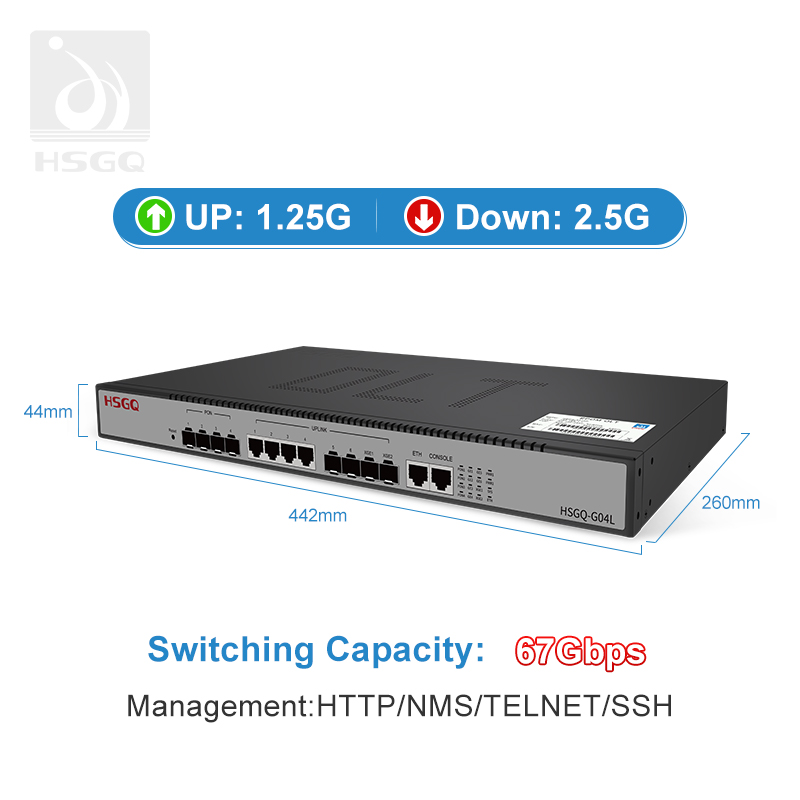

| Dimensions (W x D x H) | 440mm x 44mm x 380mm |
| Weight (Full-Loaded) | ≤5kg |
| Environmental Requirements | Working temperature: -10°C~55°C; Storage temperature: -40°C~70°C; Relative humidity: 10%~90%, non-condensing |
| Max Transmission Distance | 20km |
| Max Split Ratio | 1:128 |
Product Features
PON Features
- SN/SN+Password/LOID/LOID Password/LOID+LOID Password authentication modes
- DBA algorithm, granularity 64Kbit/s
- Standard OMCI management function
- ONU batch software upgrade
- PON port optical parameter detection
- Auto registration ONU bound with default profile
Security Features
- Anti-ARP-spoofing, Anti-ARP-flooding, Port isolation
- MAC address binding to the port and MAC address filtering
- SSHv2 Secure Shell, Login Security IP via Telnet
- DHCP Option82 and PPPoE+ upload user’s physical location
Service Features (QoS/ACL/IPv4/Multicast)
- Rate-limit to packet sending/receiving speed of port or self-defined flow
- CAR (Committed Access Rate), Traffic Shaping and flow statistics
- Standard and extended ACL, Time Range ACL
- DHCP Relay, DHCP Server, DHCP Snooping, Static Routing
- IGMPv1/v2/v3 Snooping, IGMP Fast leave, IGMP Proxy
Reliability
- Loopback-detection
- RSTP/MSTP (recover-time <1s); Link aggregation (recover-time <10ms)
- 1+1 power hot backup
