4-Port GPON OLT with 4×10G SFP+ for FTTH
4-Port GPON OLT with 4×10G SFP+ for FTTH
• 4-port GPON OLT with 4 GE RJ45 uplink ports and 4×10G SFP+ optical uplinks.
• Supports a maximum 1:128 split ratio per GPON port and up to 512 GPON users.
• Provides DBA, VLAN, QinQ, multicast, ACL, QoS, port aggregation, and traffic control functions.
• Supports Type-C management, USB configuration backup, cloud management, ONT batch management, and optional redundant power.
Product Overview

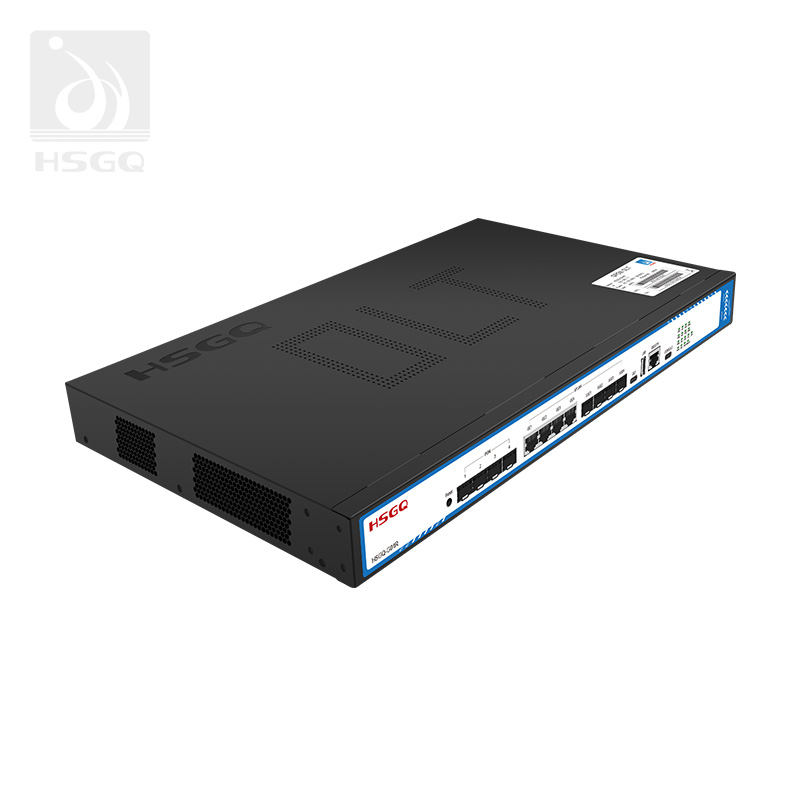

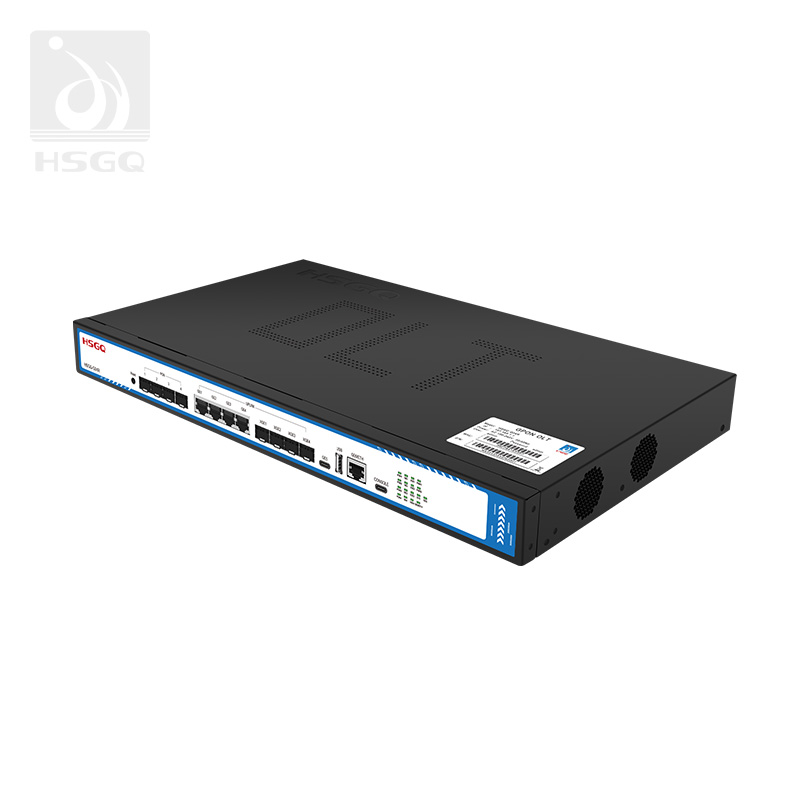

EW-F6011P is a 1U box-type GPON OLT designed for FTTH, FTTB, commercial buildings, and smart industrial parks. It provides 4*GPON ports, 4*GE RJ45 uplink ports, 4*10G SFP+ slots, 1*GE Type-C port, 1*USB 2.0 port, and 1*GE/ETH combo interface. Customers can deploy, configure, manage and monitor the equipment quickly and remotely via HSGQ Cloud, reducing labor and time cost in the network construction process. Each GPON port supports a maximum split ratio of 1:128 and up to 512 GPON users, with support for different types of ONUs under different networks.
Key Advantages

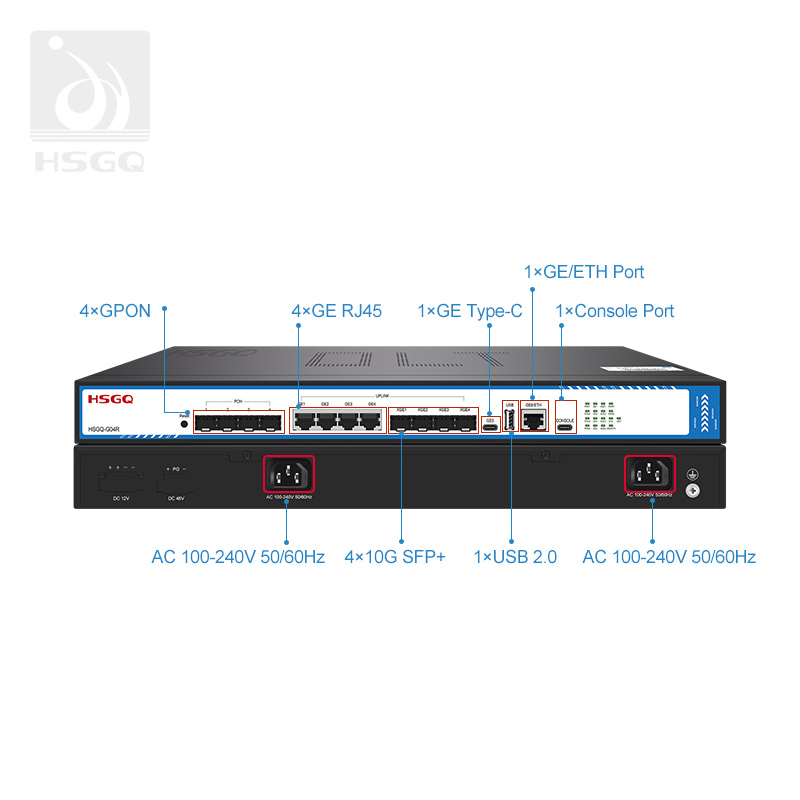

- 4*GPON ports, 4*10/100/1000M RJ45, 4*10G SFP+, 1*GE Type-C, 1*USB 2.0, 1*GE/ETH
- Two types of uplink ports: electrical and optical modules, flexibly configurable
- Open API for easy user management
- Batch configuration, restart and upgrade of ONTs
- Real-time port traffic/system monitoring
- Robust switching function, saving the need for an upper-end core switch
- Efficient security: ACL, AAA management, 802.1X authentication
- Redundancy design: default single power supply, dual power supply optional (dual AC or AC+DC input)
Technical Parameter
| Item | EW-F6011P |
|---|---|
| Interface | 4×GPON, 4×10/100/1000M RJ45, 4x10G SFP+, 1xGE Type-C, 1×USB 2.0, 1xGE/ETH |
| PON SFP | ITU-T G.984.2 GPON Class B+/C+/C++; Tx1490nm@2.488Gbps/Rx1310nm@1.244Gbps |
| Max Split Ratio | 1:128 |
| Switching Capacity | 107Gbps |
| Forwarding Rate | 79.61Mpps |
| Management | ETH/Console (Type-C) |
| Flash / DDR | 32MB / 512MB |
| Dimensions | 442mm x 260mm x 44mm |
| Weight | <5kg |
| Power Supply | AC 100-240V 50/60Hz / DC 48V; Redundancy: AC+AC/AC+DC |
| Power Consumption | <50W |
| Environment | Working: -10°C~55°C; Storage: -40°C~85°C; Humidity: 5%~95% non-condensing |
| Terminal Access Distance | Up to 20km on a single fiber |
| Max GPON Users | 512 |
Product Features
Management & Cloud
- CLI, WEB, SNMP, NMS, CLOUD configuration and monitoring
- Software and bootroom upgrade by TFTP and FTP
- Ping and diagnosis, user/log/alarm management
- HSGQ Cloud: device list, project management, version release, license and permission management
L3 & L2 Functions
- IPv4/IPv6 static route; RIP/RIPNG/OSPF/OSPFv3 dynamic route; VRRPv2/VRRPv3; PIM SM/SSM
- DHCP Server, DHCP Snooping, DHCP Relay
- VLAN, QinQ and translation, up to 4094 VLAN
- Port mirror, RSTP/MSTP (recover-time <1s), link aggregation (recover-time <10ms), storm control
- IGMP Snooping/proxy, MAC Black Hole, Port isolation
Security & QoS
- ACL access control based on data stream
- QoS based on port, VID, TOS, and MAC address
- 32K MAC address table
- AAA management and 802.1X authentication
| Interface | 4×GPON, 4×10/100/1000M RJ45, 4x10G SFP+, 1xGE Type-C, 1xUSB 2.0, 1xGE/ETH |
| Max Split Ratio | 1:128 |
| Switching Capacity | 107Gbps |
| Forwarding Rate | 79.61Mpps |
| Dimensions | 442mm x 260mm x 44mm |
| Weight | <5kg |
| Power Supply | AC 100-240V 50/60Hz / DC 48V |
| Power Consumption | <50W |
| Max GPON Users | 512 |
- DBA/Line/Service/TR069/SIP/Traffic Profile
- ONT Deny List (blacklist), Turn Off PON Port
- ONT Batch upgrade
- PON Transmission data encryption
- Cloud Management: Device List, Project Management, Version Release, License Management
- Support VLAN, QinQ and translation, up to 4094 VLAN
