48*port CCTV PoE Switch for IP Cameras
48*port CCTV PoE Switch for IP Cameras
Simplified Cabling: no separate power outlets and power cords needed for terminal devices; a single network cable solves both data transmission and power supply.
Flexible Deployment: terminal devices can be placed anywhere away from power outlets, such as on ceilings or outdoors.
Centralized Management: power status of all PoE devices monitored and managed centrally through the switch interface.
Energy Saving: supports PoE sleep mode and Green Ethernet (EEE) technology.
Product Overview

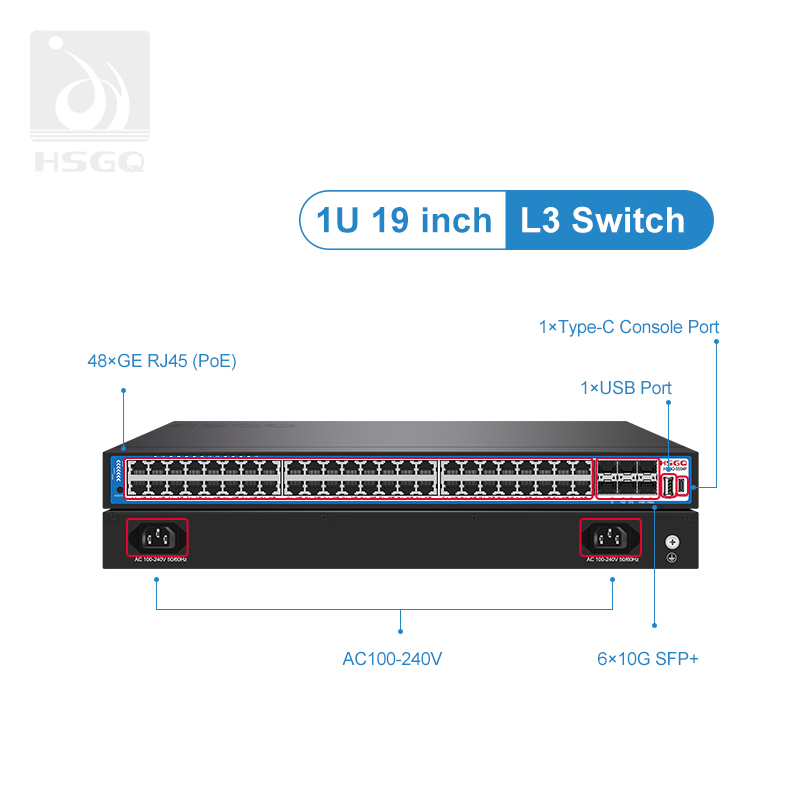

EW-F6040P is a L3 Managed PoE Switch, offering 48*1GE PoE + 6*10G SFP+ port, 1 USB port and 1 Type C Console port, providing complete security policy, perfect QoS policy and VLAN function, easy to manage and maintain, meeting the networking and access requirements of middle to large enterprises, communities, hotels, office networks and campus networks.
Key Advantages
- Real-Time Clock function using Crystal, Clock Chip, Super Capacitor solutions, meeting industrial equipment requirements for continuous time keeping
- PoE Schedule Support: flexible control over power status of each PoE port during specified time periods
- PD-Alive Function: executes port power cycling when PD offline is detected, automatically restoring normal operation
- Application Scenarios: surveillance cameras and WiFi coverage with AP devices across industrial parks, enterprises, factories, real estate, hospitals, government, banking, campuses
Technical Parameter
| Item | EW-F6040P |
|---|---|
| Downlink Ports | 48*2.5 GE RJ45 |
| Uplink Ports | 6*10G SFP+ |
| Console / USB | 1*Type C (115200, 8, N, 1); 1*USB 2.0 |
| PoE Standard | IEEE802.3af/at (PSE), End-span |
| PoE Power | 30W max for each port, 720W max |
| MAC Table | 32K |
| Switching Capacity | 216Gbps/non-blocking |
| Packet Forwarding Rate | 160.7Mpps |
| Power Supply | AC100V-240V, 50Hz/60Hz |
| Power Consumption | <50W |
| Dimensions | 440*340*44mm |
| Net Weight | 4.12kg (single power supply); 5.09kg (dual power supply) |
Product Features
- Support IEEE 802.1d, IEEE 802.1W, IEEE 802.1S, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae Standard and IEEE 802.3af/at
- L3 Management, Support DHCP Server, DHCP Snooping, DHCP Relay Static Routing, RIP and OSPF
- Support RSTP/MSTP
- Support VLAN function, Port VLAN, translation and Q-in-Q
| Downlink Ports | 48*2.5 GE RJ45 |
| Uplink Ports | 6*10G SFP+ |
| PoE Power | 30W max for each port, 720W max |
| Switching Capacity | 216Gbps/non-blocking |
| Dimensions | 440*340*44mm |
| Net Weight | 4.12kg (single); 5.09kg (dual) |
- Real-Time Clock function for continuous time keeping
- PoE Schedule Support and PD-Alive Function
- L3 Management: DHCP Server, DHCP Snooping, DHCP Relay, Static Routing, RIP and OSPF
- Support VLAN function, Port VLAN, translation and Q-in-Q
Product Overview
EW-F6040P is a L3 Managed PoE Switch, offering 48*1GE PoE + 6*10G SFP+ port, 1 USB port and 1 Type C Console port, providing complete security policy, perfect QoS policy and VLAN function, easy to manage and maintain, meeting the networking and access requirements of middle to large enterprises, communities, hotels, office networks and campus networks.Key Advantages
- Real-Time Clock function using Crystal, Clock Chip, Super Capacitor solutions, meeting industrial equipment requirements for continuous time keeping
- PoE Schedule Support: flexible control over power status of each PoE port during specified time periods
- PD-Alive Function: executes port power cycling when PD offline is detected, automatically restoring normal operation
- Application Scenarios: surveillance cameras and WiFi coverage with AP devices across industrial parks, enterprises, factories, real estate, hospitals, government, banking, campuses
Technical Parameter
| Item | EW-F6040P |
|---|---|
| Downlink Ports | 48*2.5 GE RJ45 |
| Uplink Ports | 6*10G SFP+ |
| Console / USB | 1*Type C (115200, 8, N, 1); 1*USB 2.0 |
| PoE Standard | IEEE802.3af/at (PSE), End-span |
| PoE Power | 30W max for each port, 720W max |
| MAC Table | 32K |
| Switching Capacity | 216Gbps/non-blocking |
| Packet Forwarding Rate | 160.7Mpps |
| Power Supply | AC100V-240V, 50Hz/60Hz |
| Power Consumption | <50W |
| Dimensions | 440*340*44mm |
| Net Weight | 4.12kg (single power supply); 5.09kg (dual power supply) |
Product Features
- Support IEEE 802.1d, IEEE 802.1W, IEEE 802.1S, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae Standard and IEEE 802.3af/at
- L3 Management, Support DHCP Server, DHCP Snooping, DHCP Relay Static Routing, RIP and OSPF
- Support RSTP/MSTP
- Support VLAN function, Port VLAN, translation and Q-in-Q
