4GE POE Industrial XPON ONU Fiber (inner supply)
4GE POE Industrial XPON ONU Fiber (inner supply)
Fiber access: EPON/GPON adaptive fiber network access.
Power over Ethernet: integrated PoE compatible with IEEE802.3af/at, powering connected devices without additional power adapters.
Simplified wiring: PoE function reduces power line deployment and installation costs.
Industrial-grade application: suitable for system intelligence and monitoring security scenarios under wide temperature requirements.
Product Overview

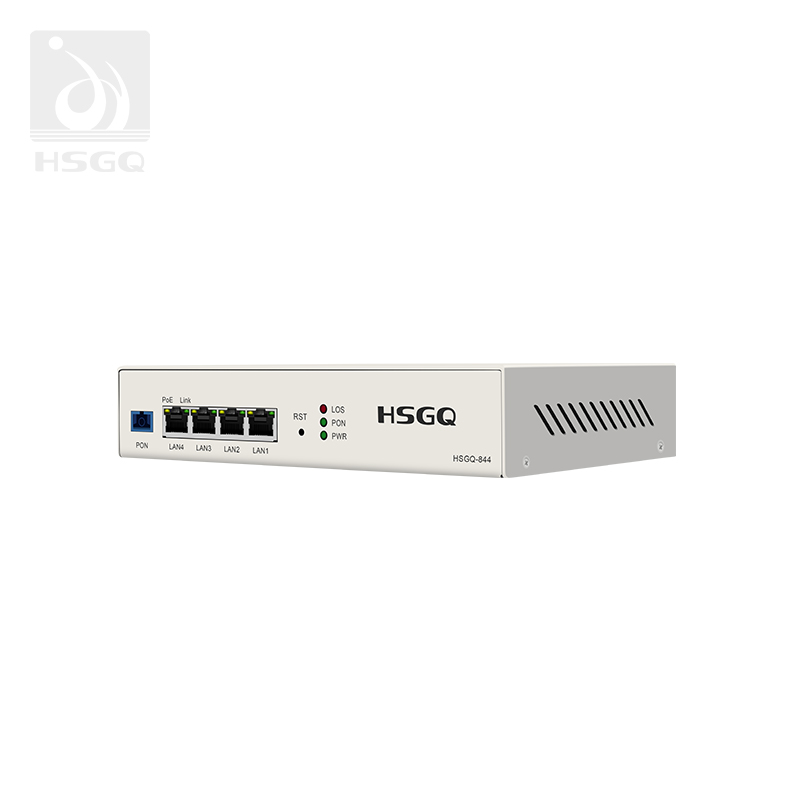

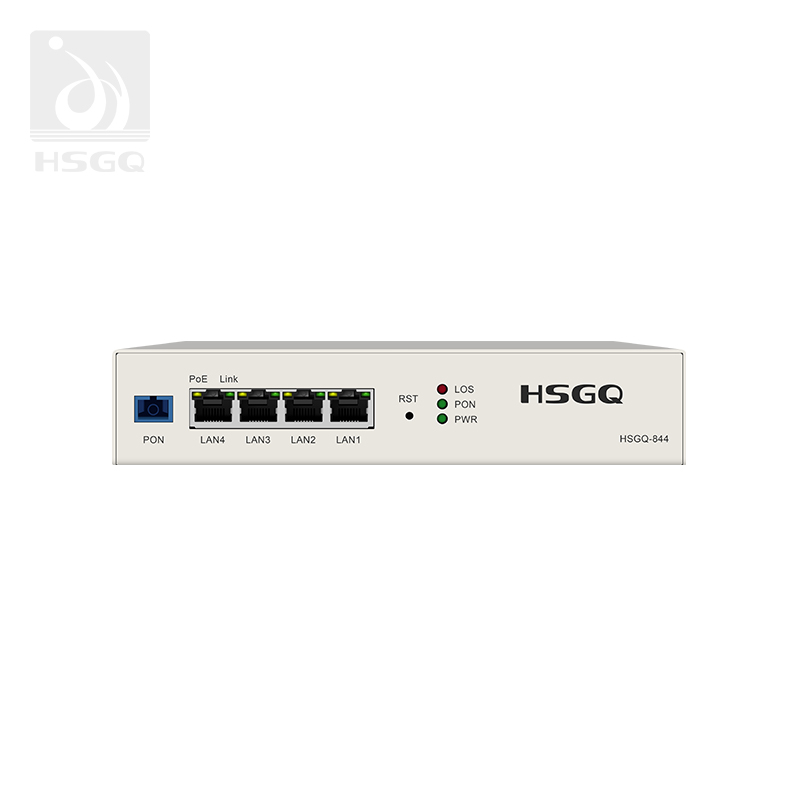

EW-F6052P is one of the latest 84 series of industrial-grade XPON passive optical network communication terminals launched by HSGQ. The product provides 4 GE ports and 1 optical fiber access port with a built-in industrial power supply and metal shell. The stability and wide compatibility of the product are suitable for high-speed interconnection projects such as smart city and smart transportation. It can work normally under harsh environments of high and low temperature difference. The operating environment supports temperature differences between -40°C~+75°C, and all ports support 6KV lightning protection, ensuring safety in both indoor and outdoor deployment.
Key Advantages
- High-speed Network Interface: each Gigabit Ethernet port supports up to 1Gbps, accommodating multiple simultaneous device connections
- Extremely Fast Fiber Optic access supporting high-speed transmission for household and small business needs
- Power over Ethernet (PoE) Functionality: provides DC power to connected devices (cameras, access points, IP phones) via Ethernet cables, intelligently matching power consumption for energy savings; supports standard PoE/PoE+ power supply
- Realize Multi-Scenario Use: home networks, small business networks, public area networks, and intelligent transportation systems
Technical Parameter
| Item | EW-F6052P |
|---|---|

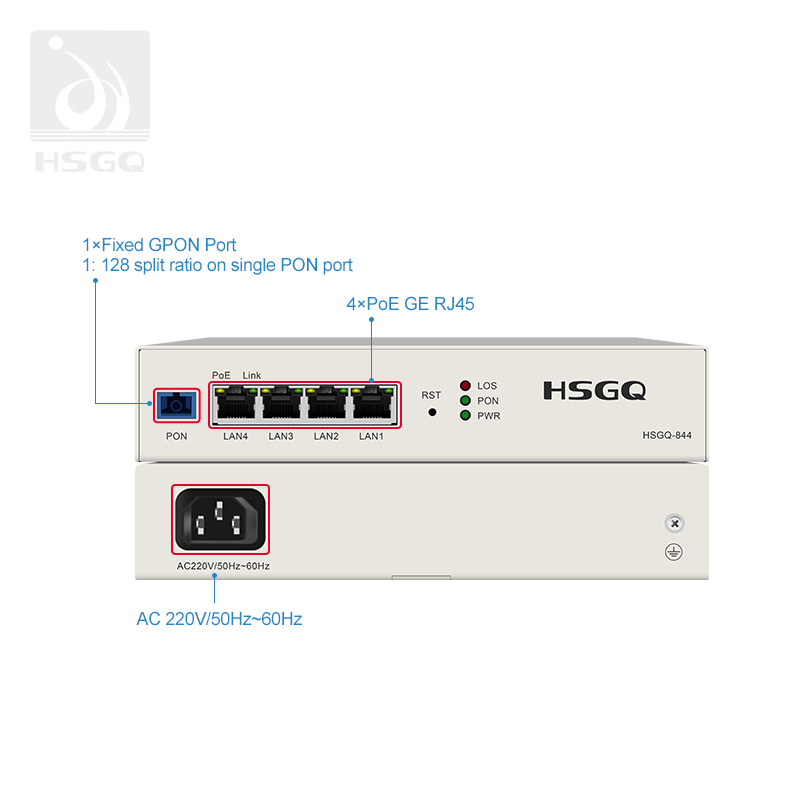

| User Interface | 4*10/100/1000M RJ45; 54V PoE input power supply; lightning protection CM 6KV, DM 2KV |
| PON Interface | 1*XPON adaptive interface; interface type px20+; uplink/downlink 1.25Gbps/2.5Gbps; wavelength 1310nm/1490nm |
| PoE/PoE+ | Power line sequence 1/2(+), 3/6(-); PoE input voltage 54V DC; max 30W per port, 60W whole machine; onboard power 6W |
| Management | Web interface management; Telnet command remote login management |
| Size | 200mm(L)*135mm(W)*40mm(H) |
| Environment | Working: -40°C~80°C, 10%~85%; Storage: -40°C~80°C, 5%~95% |
| Power Supply | Built-in industrial power supply, 110~240AC |
Product Features
- Point-to-multipoint network topology aggregating scattered Ethernet services with standard RJ45 interface
- Dynamic bandwidth allocation mechanism, reliable QoS, IGMP multicast and multicast VLAN support
- GPON meeting ITU-T G.984/G.988 standards
- Support line loopback detection, IEEE 802.1Q VLAN protocol, broadcast storm suppression
- Support IEEE 802.3x flow control, IEEE 802.1p CoS, WRR/SP queue scheduling, port speed limit
- Support -40°C~+75°C temperature difference; all ports support 6KV lightning protection
- Compatible with IEEE802.3at and IEEE802.3af; Support IPv4/IPv6; Auto discovery and Auto Register
| User Interface | 4*10/100/1000M RJ45; 54V PoE input; lightning protection CM 6KV, DM 2KV |
| PON Interface | 1*XPON adaptive; px20+; 1.25Gbps/2.5Gbps; 1310nm/1490nm |
| PoE/PoE+ | 54V DC; max 30W per port, 60W whole machine; onboard power 6W |
| Size | 200mm(L)*135mm(W)*40mm(H) |
| Environment | Working: -40°C~80°C, 10%~85% |
| Power Supply | Built-in industrial power supply, 110~240AC |
- 4GE PoE ports intelligently matching connected device power consumption for energy savings
- Compatible with IEEE802.3at and IEEE802.3af
- Dynamic bandwidth allocation, IGMP multicast, multicast VLAN support
- Support IPv4/IPv6, auto discovery and auto register
- Supports -40°C~+75°C temperature range and 6KV lightning protection on all ports
