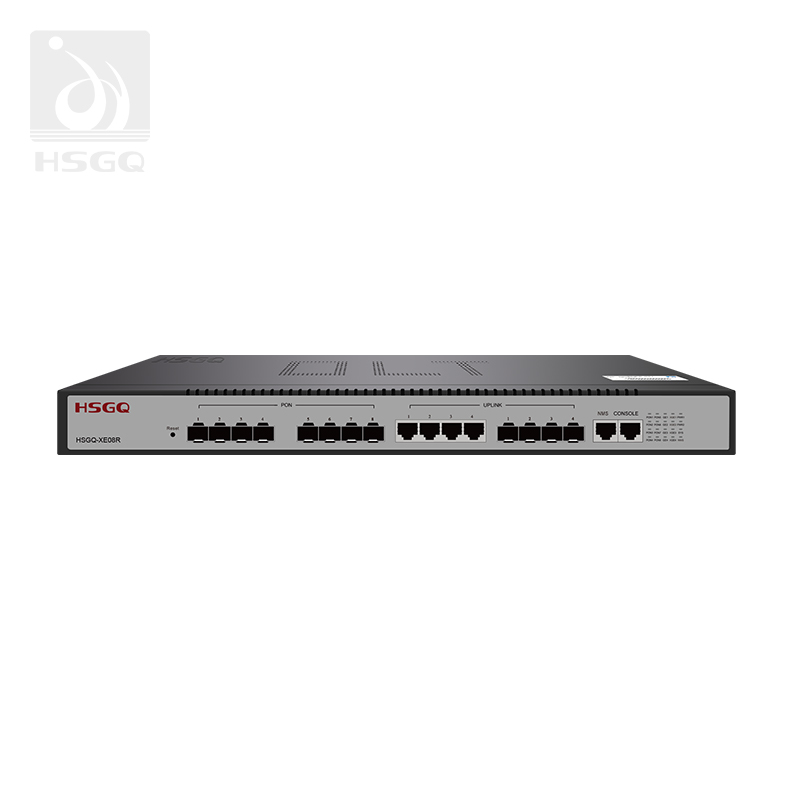

8 Port Ftth Access Epon OLT Black
8 Port Ftth Access Epon OLT Black

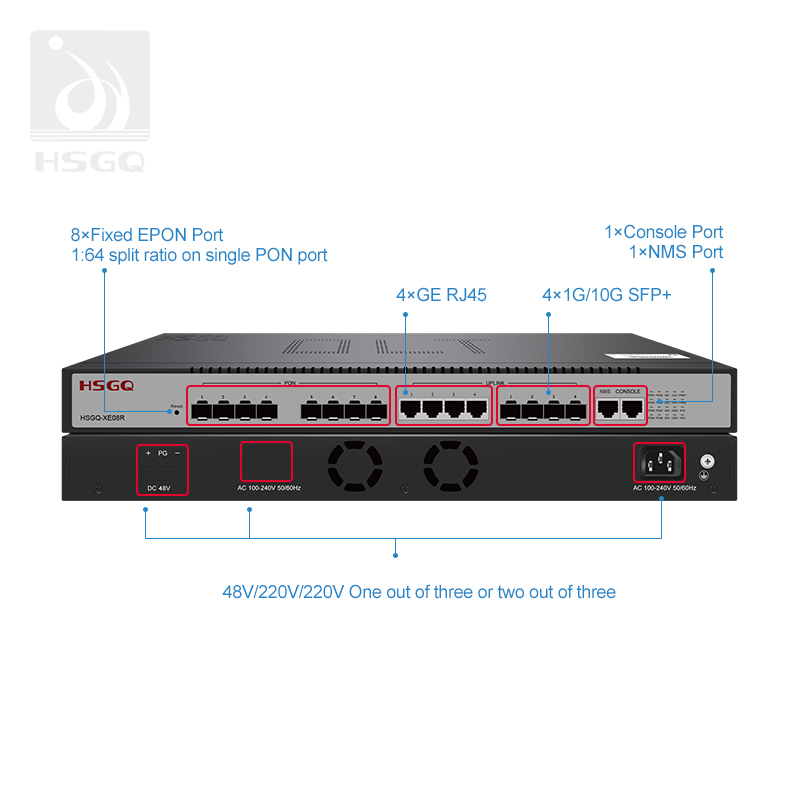

Structure: 8*Fixed EPON Port; 4*GE RJ45; 4*1G/10G SFP+; 1*Console Port.
Scalable Solution: The modular design with pluggable box modules allows for easy network expansion.
Cost Effectiveness: 1U box EPON OLT generally provides a more economical solution for small-scale deployments.
Simplified Deployment: Reduces installation and maintenance time and cost.
Space Optimization: Compact 1U size fits into tight spaces in MDUs, enterprise sites, or central offices.
Product Overview
HSGQ-XE08R is a 1U cassette EPON OLT series with good system stability and high reliability. It supports CLI, WEB, SNMP and other management methods. The product provides 8 downlink EPON interfaces, 4*1000BASE-T uplink Ethernet interfaces and 4*10G SFP+ uplink interfaces. Through the cloud management function, users can quickly deploy, configure, remotely manage and operate the equipment across the whole network. Each EPON port supports up to 1:64 split ratio, up to 512 EPON users, and different types of ONUs under different networks. 1U height for easy installation and maintenance.
Key Advantages
- Flexible and controllable multicast support: IGMP snooping, ACL, QoS, port aggregation
- High-Capacity: Each PON supports up to 64 terminals; the full configuration supports up to 512 ONUs
- VLAN powerful features including VLAN, and QinQ; isolate broadcast, increase security, reduce latency
- Support Cloud Management with HSGQ Cloud for convenient, faster operation anywhere, anytime
- Support Automatic Loopback Test Function to automatically detect and diagnose equipment

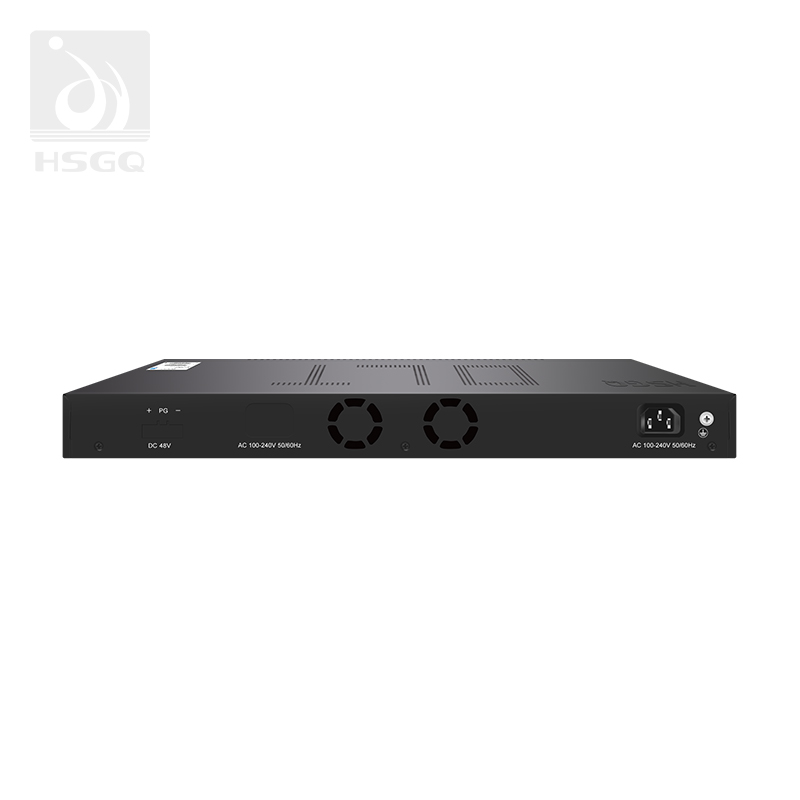

- Redundant design: support for dual power supply (AC 100-240V 50/60HZ or DC 48V dual power)
- Support for electrical modules and optical modules, flexibly configurable
Technical Parameter
| Item | HSGQ-XE08R |
|---|---|
| Interface | 8*EPON, 4*10/100/1000M RJ45, 4*10G SFP+ |
| PON Physical Interface | PON SFP Slots; Type: 1000BASE-PX20+/PX20++/PX20+++ |
| Max Splitting Ratio | 1:64 |
| Flash / DDR | 32MB / 256MB |
| Size | 442mm x 260mm x 44mm |
| Weight | <5kg |
| Environment | Operating: -10°C~60°C; Storage: -40°C~80°C; Humidity: 5%~95% non-condensing |
| Power Supply | AC 100V-240V 50/60Hz |
| Power Consumption | <40W |
Product Features
- Standard IEEE802.3ah EPON, IEEE802.3(10Base-T), IEEE802.3u(100Base-TX), IEEE802.3z(1000BASE-X)
- L3 Function: Static Routing, DHCP Server, DHCP Snooping, DHCP Relay, OSPF
- L2 Function: VLAN, VLAN Translation, QinQ; up to 4094 VLANs; Port Mirroring; RSTP and MSTP
- Support link aggregation (recovery time<10ms), storm control, IGMP snooping/proxy, port isolation
- Support ACL access control based on data flow; QoS based on port, VID, TOS and MAC address
- 16K MAC address table; support full wire-speed forwarding
- Platform Management: Device list, Project management, Version release, License management
- Capacity: Each PON supports up to 64 terminals; whole device supports up to 512 ONUs under full configuration
| Interface | 8*EPON, 4*10/100/1000M RJ45, 4*10G SFP+ |
| Max Splitting Ratio | 1:64 |
| Flash / DDR | 32MB / 256MB |
| Size | 442mm x 260mm x 44mm |
| Weight | <5kg |
| Power Supply | AC 100V-240V 50/60Hz |
| Power Consumption | <40W |
- Standard IEEE802.3ah EPON compliant
- L2/L3 functions: VLAN, QinQ, RSTP/MSTP, DHCP Server/Snooping/Relay, OSPF
- 16K MAC address table; full wire-speed forwarding
- Each PON supports up to 64 terminals; up to 512 ONUs under full configuration
- Support Cloud Management via HSGQ Cloud
