8 Ports Integrated GPON OLT Outdoor FTTH Access
8 Ports Integrated GPON OLT Outdoor FTTH Access

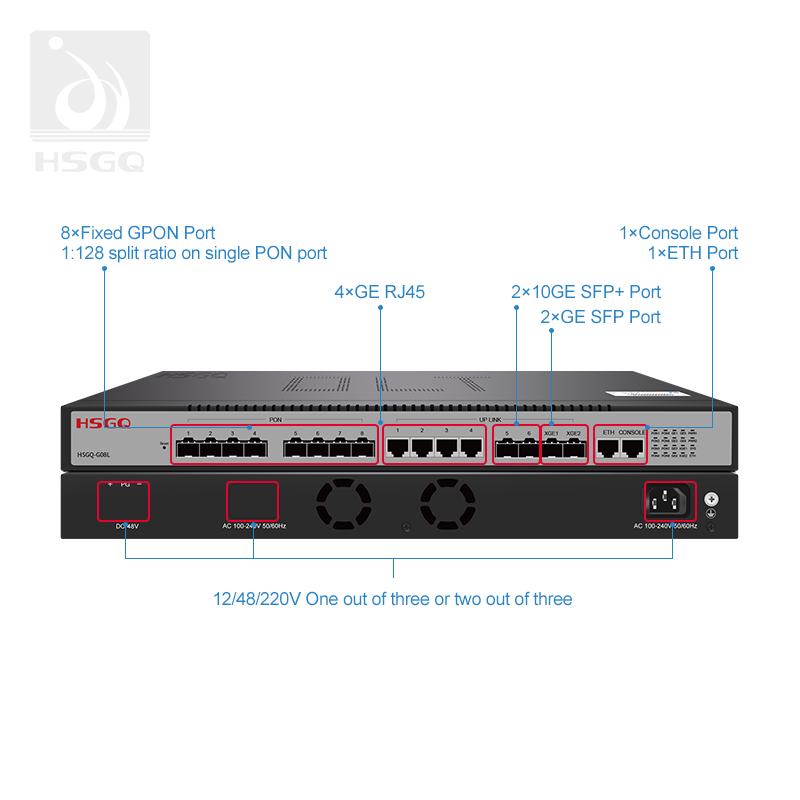

• Structure: 8*Fixed GPON Port; 4*GE COMBO; 1*Console Port.
• Connectivity: Able to meet a large user base, each system supports up to 2048 ONUs.
• Bandwidth Delivery: Supports downstream speeds up to 2.5Gbps and upstream speeds up to 1.25Gbps.
• Application Scenario: FTTH Deployment/Enterprise Network/Mobile Backhaul.
Product Overview

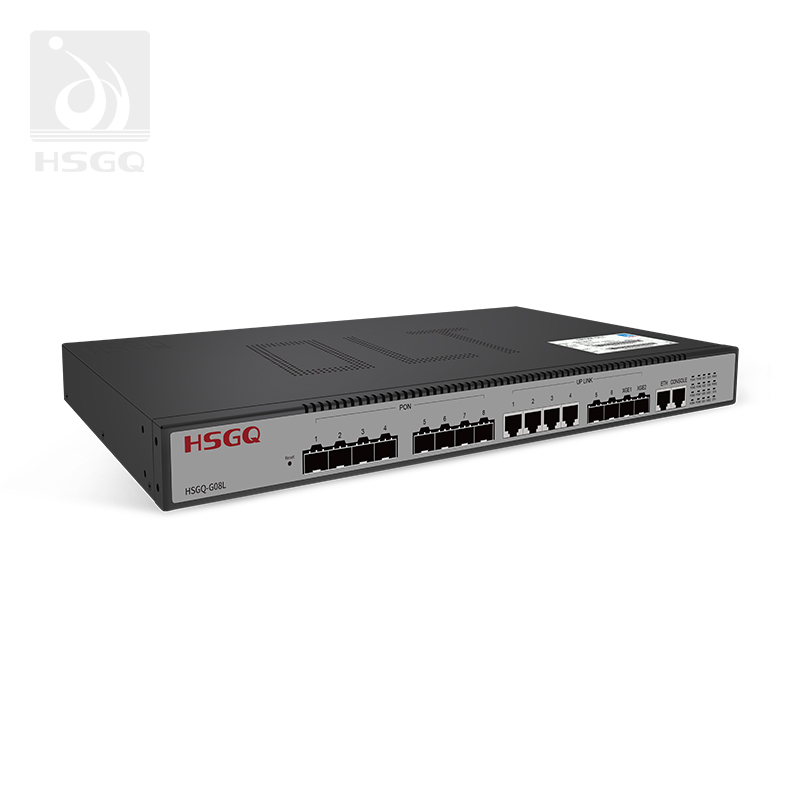

EW-F609P belongs to the 1U cartridge GPON OLT series, with good system stability and high reliability. It supports various management methods such as CLI, WEB, and SNMP. The product provides 8 GPON interfaces, 4 uplink interfaces, 2 SFP and 2 uplink SFP+ interfaces. Through the cloud management function, users can quickly deploy, configure, remotely manage and operate all network equipment, greatly reducing labor and time cost. Each GPON port supports up to a 1:128 splitting ratio and 1024 GPON users, and supports different types of ONUs based on different networks.
Key Advantages
- 8*GPON, 4*GE RJ45, 2*1G SFP, 2*10G SFP+ interfaces
- Manage devices via HSGQ Cloud: remote status check, alarm notifications, batch device upgrades
- Excellent heat dissipation with dual fans forming convection
- Visual management of PON system status and flow status

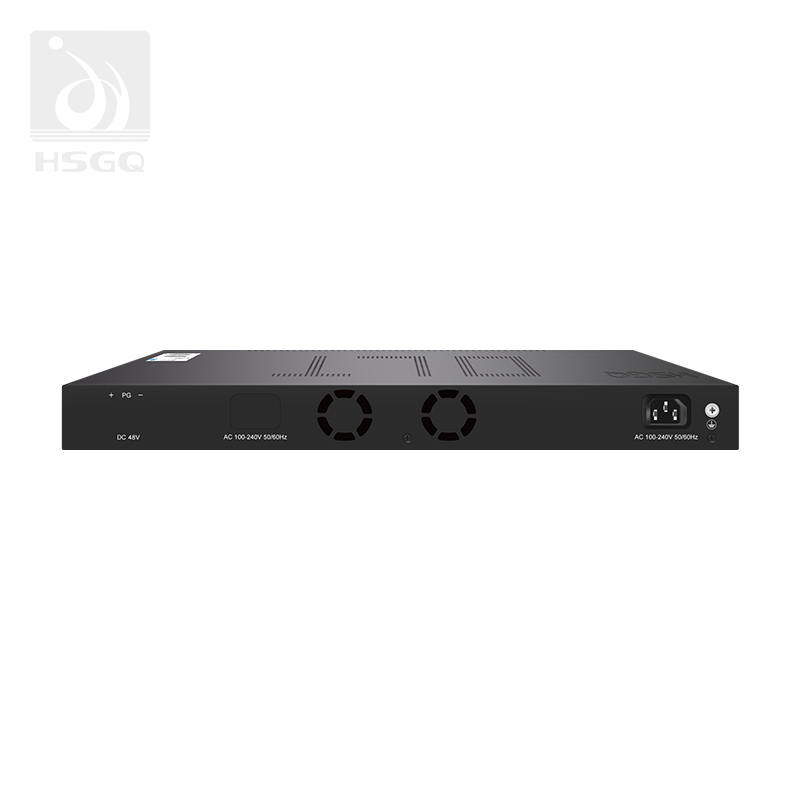

- Dual power redundancy backup
- L3 switching function with dynamic routing (RIP/OSPF)
- Plug and play, DBA/Line service/TR069/SIP voice template configuration
Technical Parameter
| Item | EW-F609P |
|---|---|
| Interface | 8*GPON, 4*GE RJ45, 2*1G SFP, 2*10G SFP+ |
| PON Physical Interface | SFP slot; Class C++/C+++/C++++ |
| Split Ratio | 1:128 on single PON port |
| Flash / DDR | 32MB / 1GB |

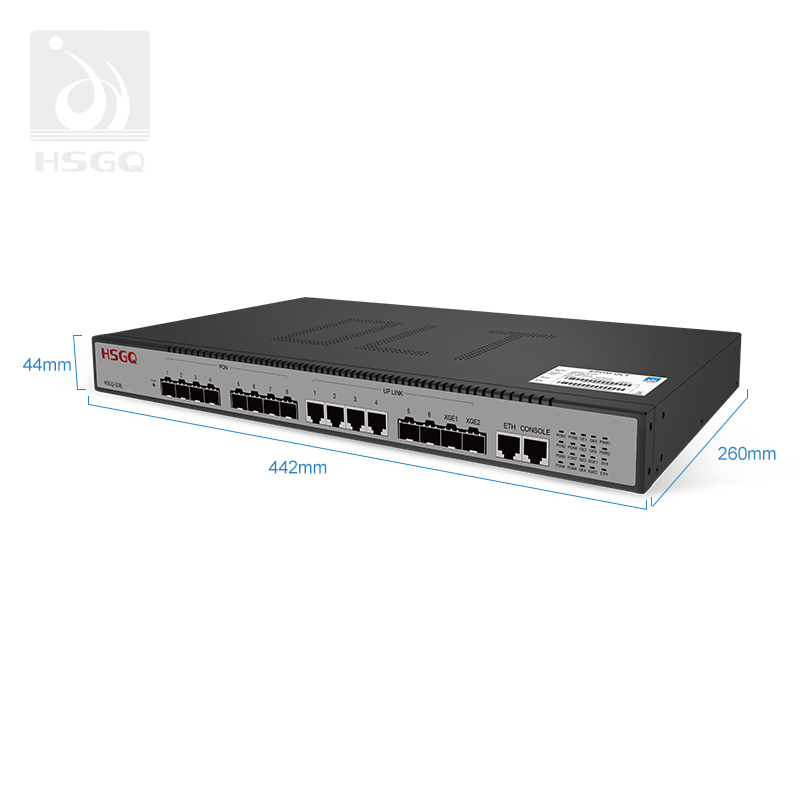

| Size | 442mm x 260mm x 44mm |
| Weight | <5kg |
| Management Port | Console port/ETH port |
| Environment | Operating: -10°C~55°C; Storage: -40°C~80°C; Humidity: 5%~95% non-condensing |
| Power Supply | AC 100V-240V 50/60Hz |
| Power Dissipation | <60W |
| Max GPON Users | Up to 2048 (system), 1024 per configuration |
Product Features
PON & Management
- Support auto registration, ONU whitelist and blacklist
- DBA configuration, P2P, ONU authorization
- Configuration and management via CLI, WEB, SNMP/NMS, CLOUD
- Chinese/English command prompt, Ping and Debug diagnosis
L2/L3 Functions
- Support VLAN, VLAN conversion and QinQ, up to 4094 VLAN
- Static Routing, DHCP servers, DHCP Snooping and DHCP Relay, OSPF
- RSTP and MSTP (recovery time <1s), link aggregation (recovery time <10ms)
- IGMP Snooping/proxy, storm control, port isolation
Reliability & Capacity
- 16K MAC address table, full wire-speed forwarding
- High reliability: supports dual power supply (default single power supply)
- Each PON supports up to 64 terminals; whole device up to 512 ONUs under full configuration
- Uplink: supports electrical and optical modules, flexibly configurable
| Interface | 8*GPON, 4*GE RJ45, 2*1G SFP, 2*10G SFP+ |
| Split Ratio | 1:128 on single PON port |
| Flash / DDR | 32MB / 1GB |
| Size | 442mm x 260mm x 44mm |
| Weight | <5kg |
| Power Supply | AC 100V-240V 50/60Hz |
| Power Dissipation | <60W |
- Support auto registration, ONU whitelist/blacklist
- DBA configuration, P2P, ONU authorization
- Dual power redundancy backup
- L3 switching with RIP/OSPF dynamic routing
- Each PON supports up to 64 terminals; up to 512 ONUs under full configuration
