800G EW-F6088P 850nm 100m DOM Dual Duplex LC/UPC for Cisco Switch
800G EW-F6088P 850nm 100m DOM Dual Duplex LC/UPC for Cisco Switch
Parallel Transmission: multiple 100G or 200G optical channels transmit data in parallel to achieve a total rate of 800G.
High-Order Modulation Format: PAM4 transmits more data at the same baud rate compared to traditional NRZ encoding.
Double Bandwidth: compared with 400G modules, provides twice the bandwidth, effectively alleviating network congestion.
Higher Port Density: allows more ports to be integrated in a limited space, reducing cost per unit bandwidth.
Compatible Brands: Cisco, Juniper, Huawei, ZTE, H3C, Mellanox, DELL, Intel, Ubiquiti, FiberHome, Ruijie, D-LINK, Netgear, Ciena, Arista, Brocade, Extreme, Avago, Avaya, Nortel, Alcatel-lucent, Dahua, Hikvision, Ericsson, MikroTik, Fortinet, Nokia, Nvidia, etc.
Product Overview
optical module, with its advanced optical technology and high-speed circuit design, supports 800Gbps high-speed data transmission. It is specifically designed for multimode application scenarios such as data center interconnection and LAN expansion. Its compact OSFP form factor allows it to easily fit into existing network equipment, facilitating network upgrades and expansions.
Key Advantages
- High-Speed Transmission Meeting Data Center Needs: supports 800Gbps data transmission for data centers, cloud computing, and AI; achieves up to 100 meters in multimode fiber environments
- Advanced Technology for Transmission Quality: stable, reliable data transmission with low power consumption and low latency
- Intelligent Diagnostics, Real-Time Monitoring: supports digital diagnostic functions (DOM) for temperature, voltage, and optical power monitoring
- Multimode Application for Various Scenarios: suitable for data center interconnection, LAN expansion, and enterprise networks with reduced fiber costs
Technical Parameter
| Item | |
|---|---|
| Electrical Interface | 8x100G PAM4 retimed 800GAUI-8 |
| Optical Connector | Dual MPO-12 APC connector and MPO16 APC connector |
| Optics | 8 channel VCSEL arrays and 8 channels PIN photo detector arrays |
| Link Length | Maximum 60m on OM3 or 100m on OM4 |
| Form Factor | Hot Pluggable OSFP, compliant with OSFP Module Spec Rev 5.0 and CMIS 5.2 |
| Power Consumption | Less than 14W (0 to 70°C) |
| Compliance | IEEE 802.3db, IEEE 802.3ck |
Product Features

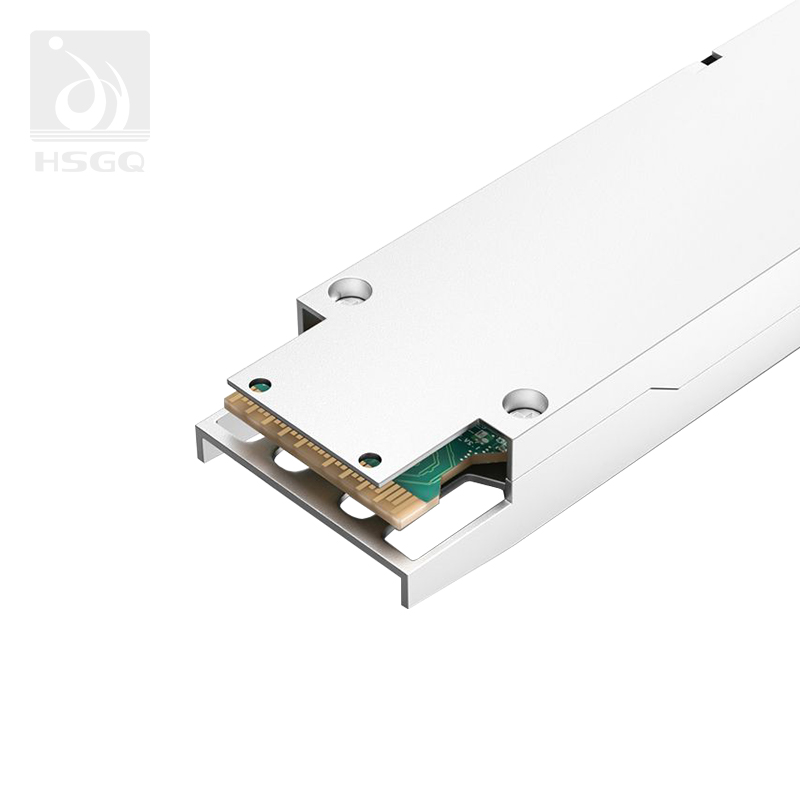

- OSFP Serial Optical Interface, 8x100G PAM4 retimed 800GAUI-8 electrical interface
- Dual MPO-12 APC connector and MPO16 APC connector provided
- Compliant with OSFP Module Specification Rev 5.0 and CMIS 5.2
- Compliant with IEEE 802.3db and IEEE 802.3ck
- Low power consumption, less than 14W in 0 to 70°C range
- Compatible with Huawei, Cisco, Arista, D-link, HPE Aruba, Fortinet, Mikrotik, etc.
| Electrical Interface | 8x100G PAM4 retimed 800GAUI-8 |
| Optical Connector | Dual MPO-12 APC / MPO16 APC |
| Link Length | 60m OM3 / 100m OM4 |
| Power Consumption | <14W (0 to 70°C) |
- OSFP Serial Optical Interface, 8x100G PAM4 electrical interface
- Compliant with OSFP Module Spec Rev 5.0 and CMIS 5.2
- Compliant with IEEE 802.3db and IEEE 802.3ck
- Compatible with Huawei, Cisco, Arista, D-link, HPE Aruba, Fortinet, Mikrotik, etc.
