8*Port Pon GPON OLT Integrated Ftth Access
8*Port Pon GPON OLT Integrated Ftth Access
• High-Bandwidth Access: GPON technology provides 2.5Gbps downstream and 1.25Gbps upstream bandwidth.
• Multi-Service Support: data, voice and video (triple play) for home broadband, enterprise lines and IPTV.
• Flexible Uplink Ports: GE and 10GE uplink options for convenient connection to the upper network.
• Network Management: CLI, WEB, SNMP and Telnet management methods.
Product Overview

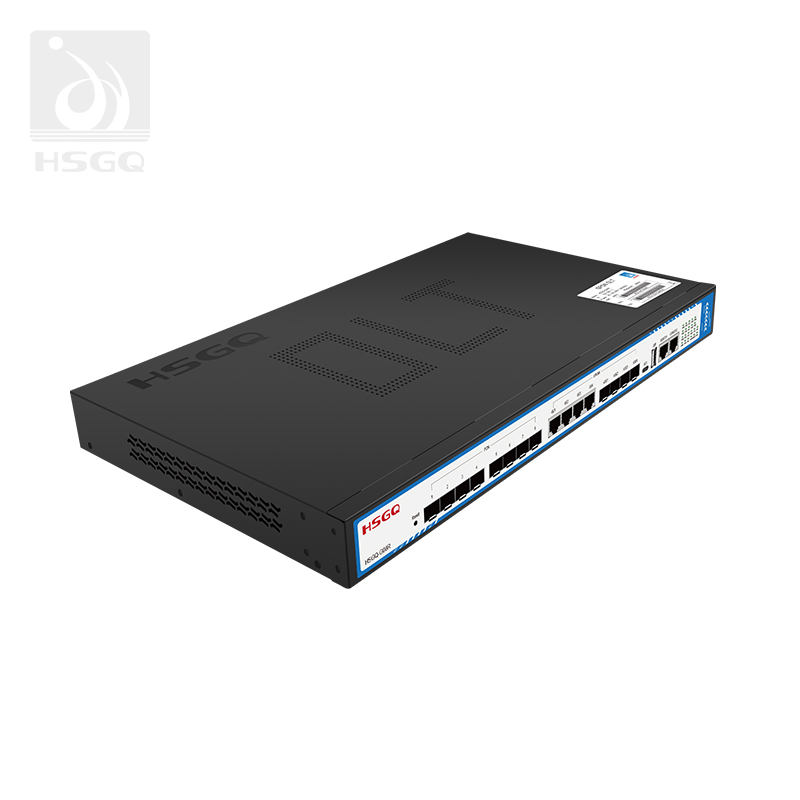

The EW-F6010P is an 8-port GPON OLT designed for centralized fiber access in FTTH and FTTx networks. It supports ITU-T G.984.x and G.988 standards, with downstream GPON bandwidth up to 2.5 Gbps and upstream bandwidth up to 1.25 Gbps. With eight PON ports, the device provides more access capacity than compact 1-port or 2-port OLTs while remaining suitable for small ISP networks, apartment buildings, campuses, hotels, and commercial sites. Each PON port supports terminal access up to 20 km on a single fiber and a split ratio of up to 1:128.
Key Advantages
- 8×PON port, 4×GE RJ45, 2×GE SFP port, 2×10GE SFP+ port
- Type-C Gigabit interface, USB backup configuration, and cloud management
- Open API and batch ONT management (configuration, restart, upgrade)
- Real-time port traffic and system monitoring
- Robust switching function with link aggregation, port mirroring, loop detection
- Layered security: anti-ARP spoofing/flooding, ACL, SSHv2, hierarchical management
- 1+1 power hot-backup, optional dual AC or AC+DC input
Technical Parameter
| Item | EW-F6010P |
|---|---|
| Switching Capacity | 82Gbps |
| Forwarding Capacity | 68.45Mpps |
| Service Port | 8×PON port, 4×GE RJ45, 2×GE SFP port, 2×10GE SFP+ port |

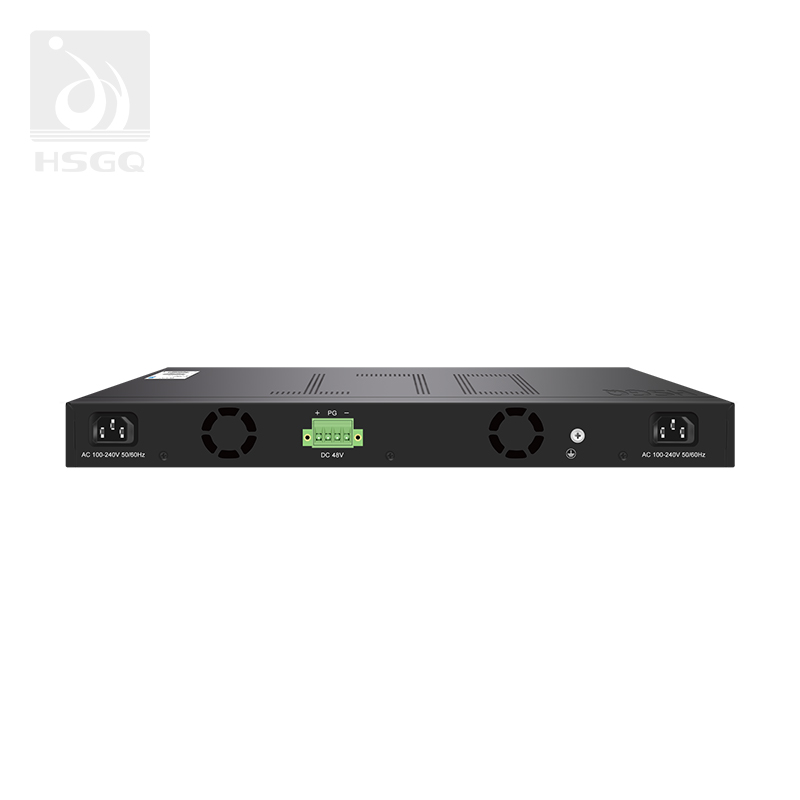

| Redundancy Design | Dual power supply; double AC/DC/AC+DC input |
| Power Supply | AC: input 100~240V 50/60Hz |
| Power Consumption | 55W |
| Dimensions | 440mm(W)×380mm(L)×44mm(H) |
| Weight (Full-Loaded) | ≤5kg |
| Environmental Requirements | Working temperature: -10°C~55°C; Storage temperature: -40°C~70°C; Relative humidity: 10%~90% non-condensing |
| Max Single-Fiber Access | 20km, up to 128 ONUs, 1:128 split ratio |
Product Features
PON Features
- ITU-T G.984.x/G.988; SN, LOID Password, LOID+LOID Password authentication
- Terminal access up to 20km on a single fiber; up to 128 ONUs per fiber
- 64Kbit/s DBA granularity, standard OMCI management, batch ONU upgrade
L2/L3 Features
- 32K MAC address table, 4K VLAN entries, port-based VLAN classification
- STP/RSTP/MSTP, link aggregation, port mirroring
- Static routing, DHCP Server/Snooping/Relay, OSPF, IPv4/IPv6
- IGMP v1/v2/v3 Snooping, IGMP Fast Leave, IGMP Proxy
Security & QoS
- Anti-ARP spoofing/flooding, port isolation, MAC binding/filtering
- L2-L7 ACL flow filtering, DHCP Option82, PPPoE+ location reporting
- Rate-limit, CAR, traffic shaping, 8 priority queues (SP/WRR/SP+WRR)
- 1+1 power hot backup, loopback detection
| Switching Capacity | 82Gbps |
| Forwarding Capacity | 68.45Mpps |
| Service Port | 8×PON port, 4×GE RJ45, 2×GE SFP port, 2×10GE SFP+ port |
| Power Supply | AC 100~240V 50/60Hz |
| Power Consumption | 55W |
| Dimensions | 440mm(W)×380mm(L)×44mm(H) |
| Weight | ≤5kg |
| Max Single-Fiber Access | 20km, 1:128 split ratio |
- ITU-T G.984.x/G.988 compliant
- SN, LOID Password authentication modes
- Up to 128 ONUs on a single fiber, 1:128 split ratio
- Type-C Gigabit interface, USB backup configuration, cloud management
- Open API and batch ONT management
- 1+1 power hot-backup design
Product Overview
The EW-F6010P is an 8-port GPON OLT designed for centralized fiber access in FTTH and FTTx networks. It supports ITU-T G.984.x and G.988 standards, with downstream GPON bandwidth up to 2.5 Gbps and upstream bandwidth up to 1.25 Gbps. With eight PON ports, the device provides more access capacity than compact 1-port or 2-port OLTs while remaining suitable for small ISP networks, apartment buildings, campuses, hotels, and commercial sites. Each PON port supports terminal access up to 20 km on a single fiber and a split ratio of up to 1:128.Key Advantages
- 8×PON port, 4×GE RJ45, 2×GE SFP port, 2×10GE SFP+ port
- Type-C Gigabit interface, USB backup configuration, and cloud management
- Open API and batch ONT management (configuration, restart, upgrade)
- Real-time port traffic and system monitoring
- Robust switching function with link aggregation, port mirroring, loop detection
- Layered security: anti-ARP spoofing/flooding, ACL, SSHv2, hierarchical management
- 1+1 power hot-backup, optional dual AC or AC+DC input
Technical Parameter
| Item | EW-F6010P |
|---|---|
| Switching Capacity | 82Gbps |
| Forwarding Capacity | 68.45Mpps |
| Service Port | 8×PON port, 4×GE RJ45, 2×GE SFP port, 2×10GE SFP+ port |
| Redundancy Design | Dual power supply; double AC/DC/AC+DC input |
| Power Supply | AC: input 100~240V 50/60Hz |
| Power Consumption | 55W |
| Dimensions | 440mm(W)×380mm(L)×44mm(H) |
| Weight (Full-Loaded) | ≤5kg |
| Environmental Requirements | Working temperature: -10°C~55°C; Storage temperature: -40°C~70°C; Relative humidity: 10%~90% non-condensing |
| Max Single-Fiber Access | 20km, up to 128 ONUs, 1:128 split ratio |
Product Features
PON Features
- ITU-T G.984.x/G.988; SN, LOID Password, LOID+LOID Password authentication
- Terminal access up to 20km on a single fiber; up to 128 ONUs per fiber
- 64Kbit/s DBA granularity, standard OMCI management, batch ONU upgrade
L2/L3 Features
- 32K MAC address table, 4K VLAN entries, port-based VLAN classification
- STP/RSTP/MSTP, link aggregation, port mirroring
- Static routing, DHCP Server/Snooping/Relay, OSPF, IPv4/IPv6
- IGMP v1/v2/v3 Snooping, IGMP Fast Leave, IGMP Proxy
Security & QoS
- Anti-ARP spoofing/flooding, port isolation, MAC binding/filtering
- L2-L7 ACL flow filtering, DHCP Option82, PPPoE+ location reporting
- Rate-limit, CAR, traffic shaping, 8 priority queues (SP/WRR/SP+WRR)
- 1+1 power hot backup, loopback detection
