AC1200 Router Dual Band Mesh in Wall
AC1200 Router Dual Band Mesh in Wall
• Fast wireless speed: provides wireless network connection with a maximum speed of 1200Mbps.
• Multi-user support: MU-MIMO technology communicates with multiple devices simultaneously.
• Broadband management and optimization: bandwidth management and prioritization features.
• Security and privacy protection: firewall, WPA2 encryption, and guest network access control.
• Dual-band support: 2.4GHz and 5GHz frequency bands for penetration and high-performance tasks.
• Multi-user support: MU-MIMO technology communicates with multiple devices simultaneously.
• Broadband management and optimization: bandwidth management and prioritization features.
• Security and privacy protection: firewall, WPA2 encryption, and guest network access control.
• Dual-band support: 2.4GHz and 5GHz frequency bands for penetration and high-performance tasks.
Product Introduction

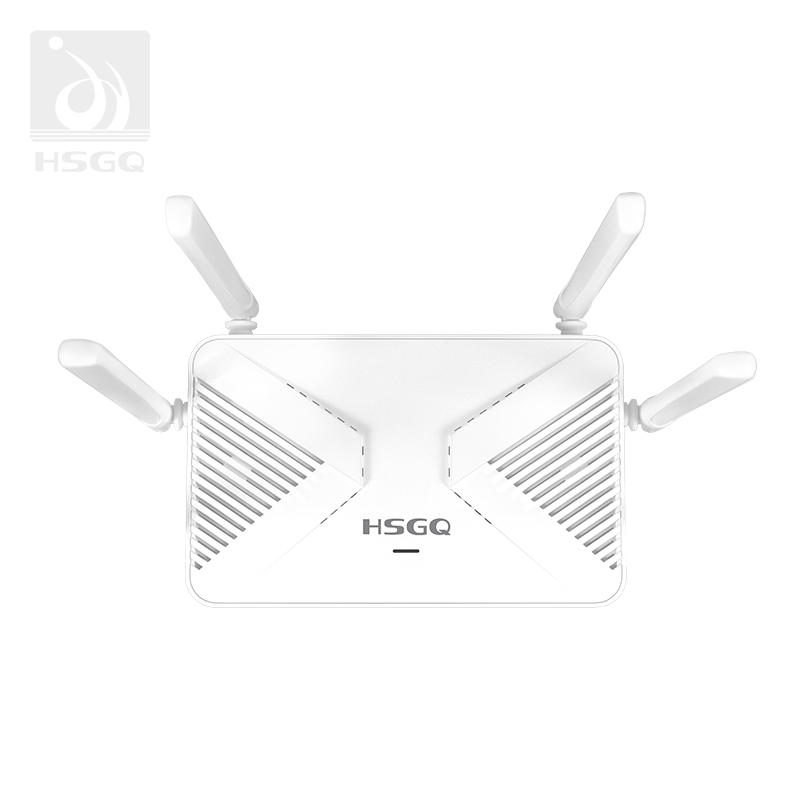

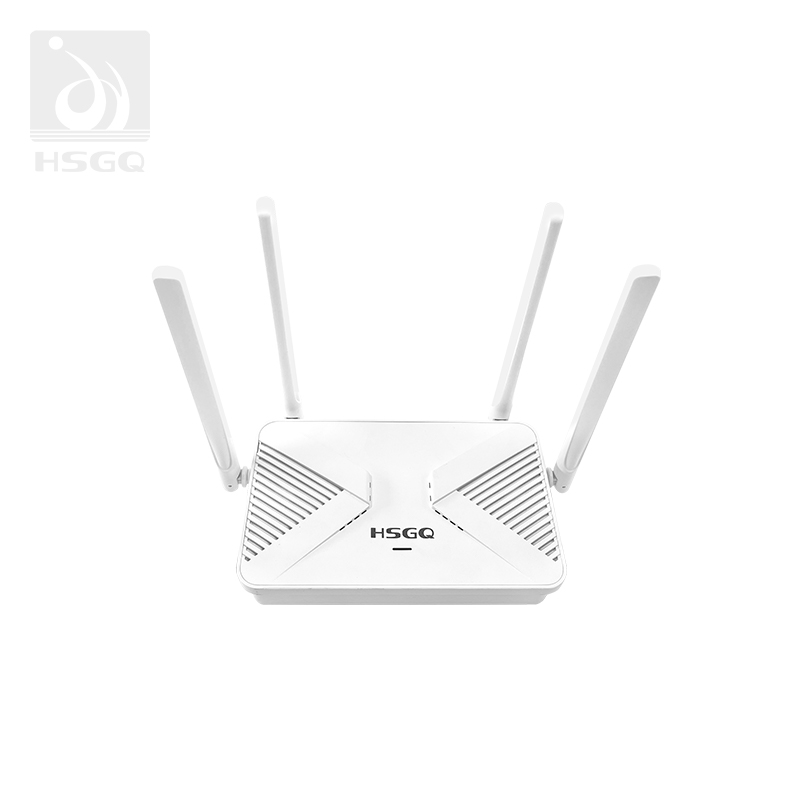

HSGQ-R1200 is an AC1200 gigabit router complying with IEEE802.11ac Wave 2 standards, supporting simultaneous connection and communication with multiple wireless devices. Equipped with 4 omni-directional antennas, HSGQ-R1200 delivers WiFi speed up to 1167Mbps, offering faster internet speed and a more stable connection with other wireless devices. Full gigabit WAN and LAN ports offer larger capability for data streaming via cable connection, making it an ideal choice for homes or offices with high internet demand.Key Advantages
- 1167Mbps super-fast speed WiFi, working on 2.4GHz and 5GHz simultaneously
- Child anti-addiction settings to control children’s internet access and block specific websites
- Network meshing: seamless networking with multiple routers for wide-area wireless coverage
- Strong encryption system using new-generation WPA3 protocol for enhanced data protection
- Four external antennas for wider WiFi coverage and reduced same-frequency interference
- One gigabit WAN and three gigabit LAN ports for super-fast internet, ideal for 200Mbps+ bandwidth
Technical Parameter
| Item | HSGQ-R1200 |
|---|---|
| Master Chip Solution | SF19A2890 MIPS, Dual-core 1GHz, 3200dmips |
| Flash / Memory | 16MB / 128MB DDR3 |
| Antenna (External) | 2.4G: 2T2R 5dBm; 5.8G: 2T2R 5dBm |

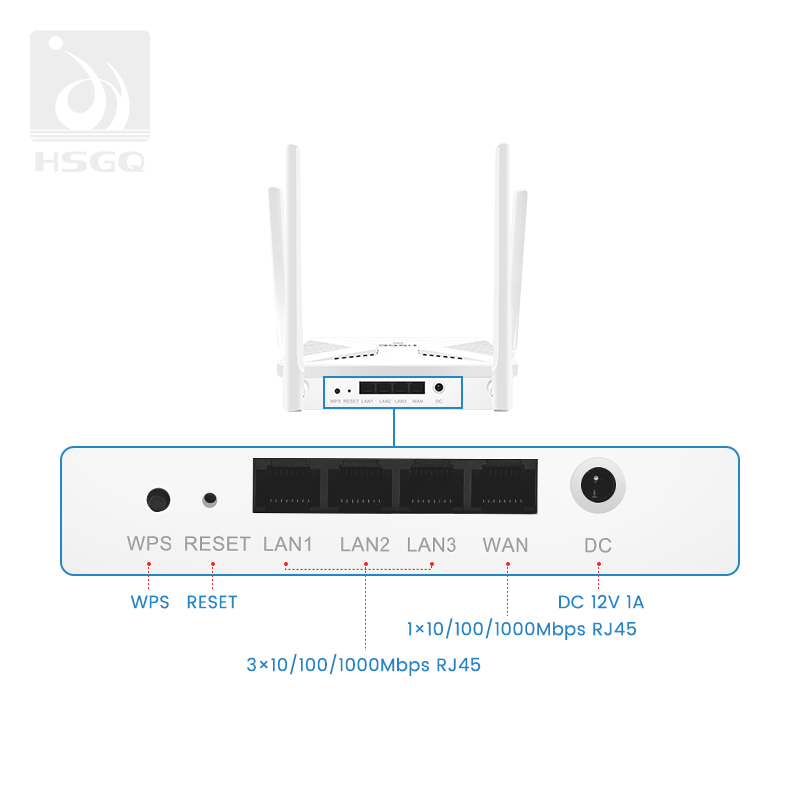

| Port | 4×10/100/1000Mbps RJ45 (WAN*1+LAN*3) |
| Button | WPS/RESET |
| Power Supply | DC 12V/1A |
| Wireless Frequency Range | 2.4~2.4835GHz, 5.150GHz~5.850GHz |
| Wireless Rate | 11n: up to 300Mbps; 11ac: up to 866Mbps |
| Working Channel | 2.4G: 1~13; 5.8G: 36,40,44,48,52,56,60,64,149,153,157,161,165 |
| Data Encryption | WPA-PSK/WPA2-PSK, WPA/WPA2 |
Software Specification
Supports IPv6 (four networking modes: relay, static IP, dynamic IP, broadband connection), guest network, IPTV, parental control, VPN client (PPTP/L2TP), firewall (ALG, port mapping, DMZ, MAC/IP filtering, NAT settings, DDoS protection), traffic statistics, TR069 remote management, password change, configuration backup/upgrade, and scheduled restart.
Recommended Placement
Open, unobstructed position such as a TV cabinet or coffee table, near the paracentral position of the house, about 1 meter from the ground with antennas placed vertically. Avoid metal isolation boxes, obstructed corners, electrical appliance interference, or edge-of-house positions like balconies or laundry rooms.
