Product Overview

5-port 1000M Intelligent Ethernet switch adopts high-quality and high-speed network ICs, and this product completely solves the problem of noise of small switches in the office environment through the fanless mute design. This switch has 5*1000M RJ45 ports, can provide seamless connection for 10/100/1000M Ethernet, the product can be widely used in various occasions like security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering etc.

Key Features

• 5xGigabit RJ45 Ports
• Applies to IEEE802.3, IEEE802.3u, IEEE802.3ab standard
• Ethernet ports support 10/100/1000M adaptive
• Support auto MDI/MDIX
• Panel indicators to monitor working status and help fault analysis
• Flow control: full duplex adopts IEEE802.3x standard, half duplex adopts backpressure standard

Technical Parameter

Item	EW-F6058P
Power	DC 5V
Ethernet	5*Gigabit RJ45 Ports
Switching Capacity	10Gbps
Throughput	7.44Mpps
Package Cache	3Mbit
MAC Address	2K
Jumbo Frame	15Kbytes
VLAN	4K
Transfer Mode	Store and forward
MTBF	100,000 hours
Network Protocol	IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control)
Network Medium	10Base-T: Cat3,4,5 or above UTP (≤100m); 100Base-TX: Cat5 or above UTP (≤100m); 1000Base-TX: Cat5 or above UTP (≤100m)
Working Temperature	-10~50°C
Storage Temperature	-20~70°C
Working Humidity	10%~90%, non-condensing
Storage Humidity	5%~95%, non-condensing

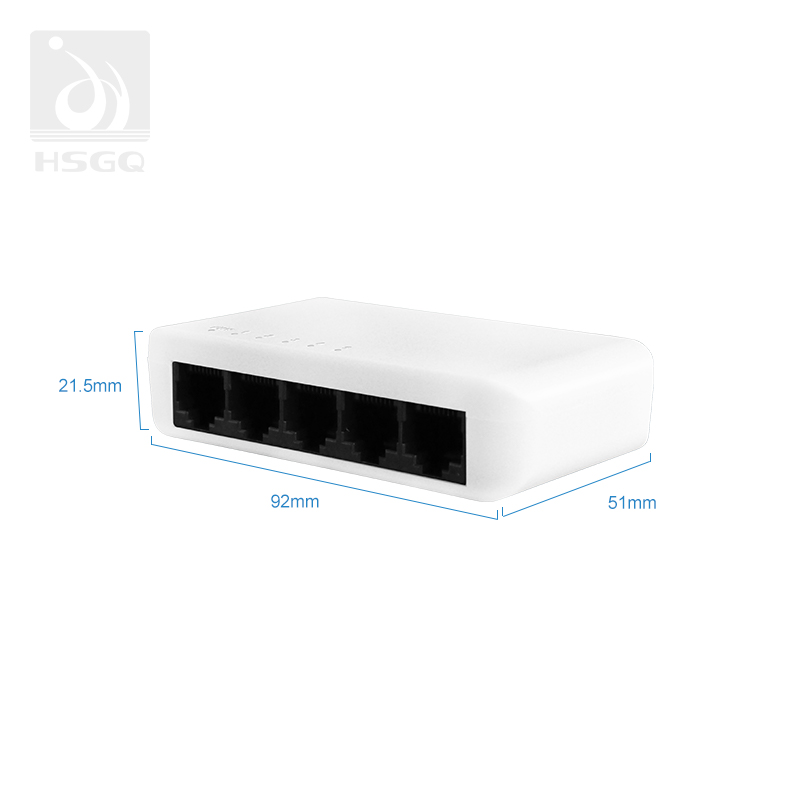

Product Size	92*51*21.5mm
Packing Size	92*82*51mm
Product Weight	0.062Kg
Packing Weight	0.132Kg
Total Power	<5W

Application Environment

Metro Optical Broadband Network (telecommunications, cable TV, network system integration); Broadband Private Network (financial, government, oil, railway, electric power, public security, transportation, education); Multimedia Transmission (remote teaching, conference TV, videophone); Real-Time Monitoring.
