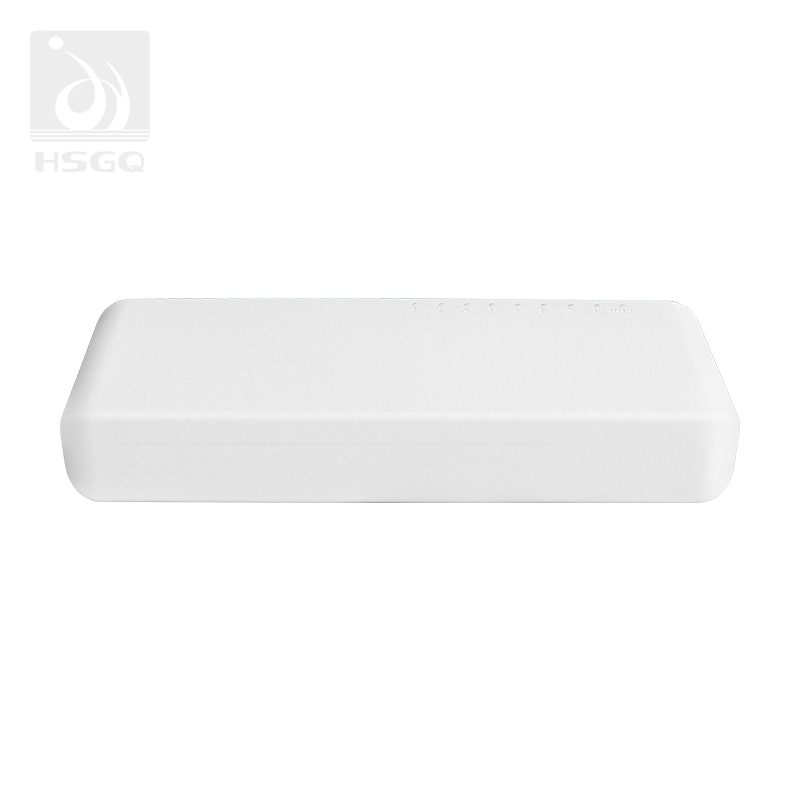

Ethernet Switch 8 Ports to Router for Home
Ethernet Switch 8 Ports to Router for Home
• 8*Gigabit Ethernet ports connect computers, servers, printers, wireless APs and other devices.
• Auto-negotiation automatically detects speed and duplex mode of connected devices.
• Supports flow control and VLAN for stable, secure network segmentation.
• Fanless mute design suited to home, office, school, hotel and SMB environments.
• Auto-negotiation automatically detects speed and duplex mode of connected devices.
• Supports flow control and VLAN for stable, secure network segmentation.
• Fanless mute design suited to home, office, school, hotel and SMB environments.
Product Overview
8-port 1000M intelligent Ethernet switch using high-quality network ICs and fanless design. Provides 8*1000M RJ45 ports with seamless 10/100/1000M Ethernet and is suited to home, office, school, hotel and SMB environments.Key Features
- 8x Gigabit RJ45 Ports
- Applies to IEEE802.3, IEEE802.3u, IEEE802.3ab standard
- 10/100/1000M auto-negotiation; auto MDI/MDIX
- Flow control support; VLAN segmentation up to 4K
- Store-and-forward switching; fanless mute design; plug-and-play
Technical Parameter
| Item | EW-F6061P |
|---|---|
| Power | DC5V |
| Ethernet | 8*Gigabit RJ45 |
| Switching Capacity | 16Gbps |
| Throughput | 11.90Mpps |
| Package Cache | 4Mbit |
| MAC Address | 8K |
| Jumbo Frame | 16Kbytes |
| VLAN | 4K |
| Transfer Mode | Store and forward |
| MTBF | 100,000 hours |
| Network Protocol | IEEE802.3/802.3u/802.3ab/802.3x |
| Network Medium | 10Base-T Cat3/4/5 or above ≤100m; 100Base-TX Cat5 or above ≤100m; 1000Base-TX Cat5 or above ≤100m |
| Working Temperature | -10~50°C |
| Storage Temperature | -20~70°C |
| Working Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
| Product Size | 145*60*21.5mm |
| Packing Size | 145*88*50mm |
| Product Weight | 0.111kg |
| Packing Weight | 0.166kg |
| Total Power | <5W |
