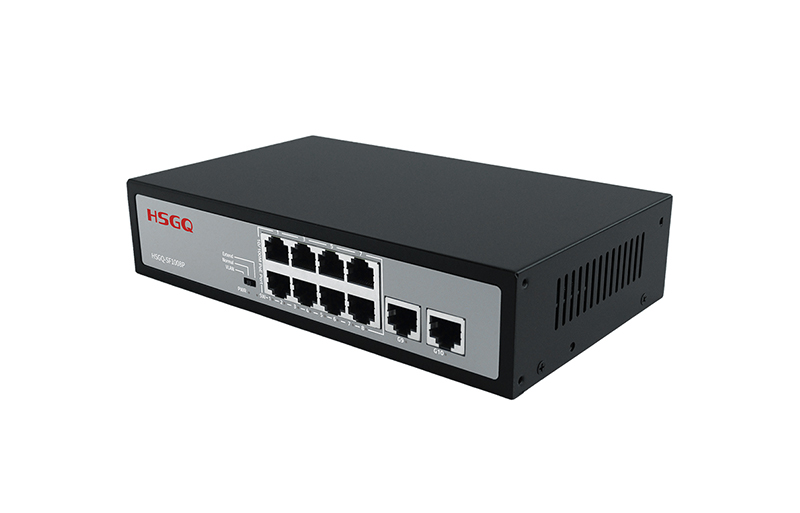

EW-F6044P
EW-F6044P
10-Port Gigabit Uplink 10/100M 8-Port PoE Switch. 8×10/100M PoE ports + 2×10/100/1000M Ethernet Uplink ports.
Product Overview
EW-F6044P is a 10-port gigabit uplink, 10/100M 8-port PoE switch, using high-quality high-speed network IC and the most stable PoE chip, supporting both 802.3af and 802.3at standards. The network provides a seamless connection, and the PoE power port automatically detects and powers devices compliant with IEEE802.3af or IEEE802.3at standards.
Key Advantages
- 8×10/100M PoE ports + 2×10/100/1000M Ethernet Uplink ports
- Ethernet port supports 10/100/1000M adaptive and PoE functions
- Support for VLAN mode, Normal mode and Extend mode

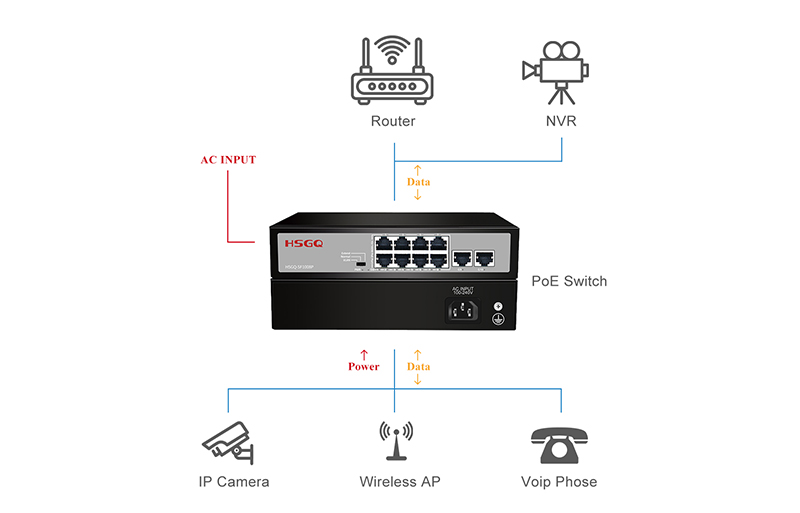

- Suitable for metro optical broadband networks, broadband private networks, and real-time monitoring
Technical Parameter
| Item | EW-F6044P |
|---|---|
| Ethernet | 8 Port 10/100M PoE, 2 Port 10/100/1000M Ethernet Uplink |
| Switching Capacity | 5.6Gbps |
| Throughput | 4.166Mpps |
| Packet Buffer | 448K |
| MAC Address | 2K |
| PoE Protocol | IEEE802.3af (15.4W); IEEE802.3at (30W) |

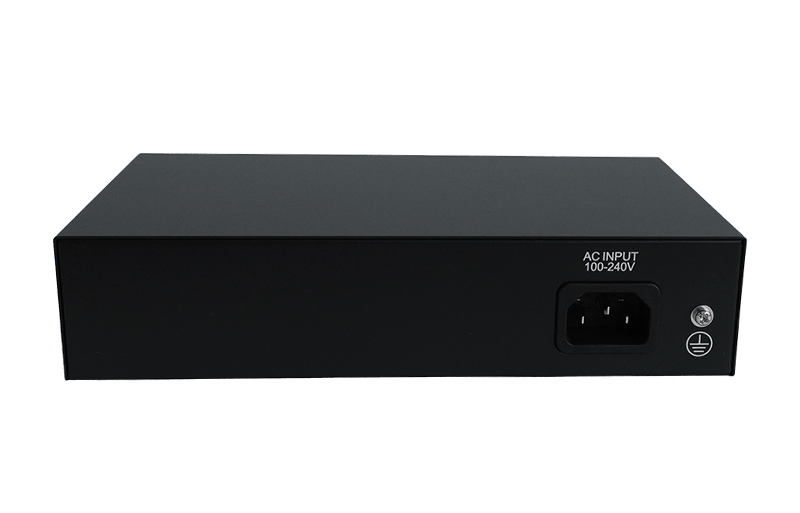

| Power Supply | AC 100-240V, 50/60Hz; 120W |
| Dimensions | 200x118x44mm |
| Weight | N.W 0.60kg; G.W 0.90kg |
| Working Temperature | -10~50°C |
Product Features
- Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab standards
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Support port auto flip (Auto MDI/MDIX)
- Three DIP switch modes: VLAN (port isolation, ports 1-8), Normal, Extend (ports 1-8 extended to 250m)
| Ethernet | 8 Port 10/100M PoE, 2 Port 10/100/1000M Uplink |
| Switching Capacity | 5.6Gbps |
| MAC Address | 2K |
| Power Supply | AC 100-240V, 50/60Hz |
| Dimensions | 200x118x44mm |
| Weight | N.W 0.60kg |
- 8×10/100M PoE ports + 2×10/100/1000M Ethernet Uplink ports
- Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab standards
- Three DIP switch modes: VLAN, Normal, Extend
- Support port auto flip (Auto MDI/MDIX)
Product Overview
EW-F6044P is a 10-port gigabit uplink, 10/100M 8-port PoE switch, using high-quality high-speed network IC and the most stable PoE chip, supporting both 802.3af and 802.3at standards. The network provides a seamless connection, and the PoE power port automatically detects and powers devices compliant with IEEE802.3af or IEEE802.3at standards.Key Advantages
- 8×10/100M PoE ports + 2×10/100/1000M Ethernet Uplink ports
- Ethernet port supports 10/100/1000M adaptive and PoE functions
- Support for VLAN mode, Normal mode and Extend mode
- Suitable for metro optical broadband networks, broadband private networks, and real-time monitoring
Technical Parameter
| Item | EW-F6044P |
|---|---|
| Ethernet | 8 Port 10/100M PoE, 2 Port 10/100/1000M Ethernet Uplink |
| Switching Capacity | 5.6Gbps |
| Throughput | 4.166Mpps |
| Packet Buffer | 448K |
| MAC Address | 2K |
| PoE Protocol | IEEE802.3af (15.4W); IEEE802.3at (30W) |
| Power Supply | AC 100-240V, 50/60Hz; 120W |
| Dimensions | 200x118x44mm |
| Weight | N.W 0.60kg; G.W 0.90kg |
| Working Temperature | -10~50°C |
Product Features
- Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab standards
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Support port auto flip (Auto MDI/MDIX)
- Three DIP switch modes: VLAN (port isolation, ports 1-8), Normal, Extend (ports 1-8 extended to 250m)
