EW-F6046P
EW-F6046P

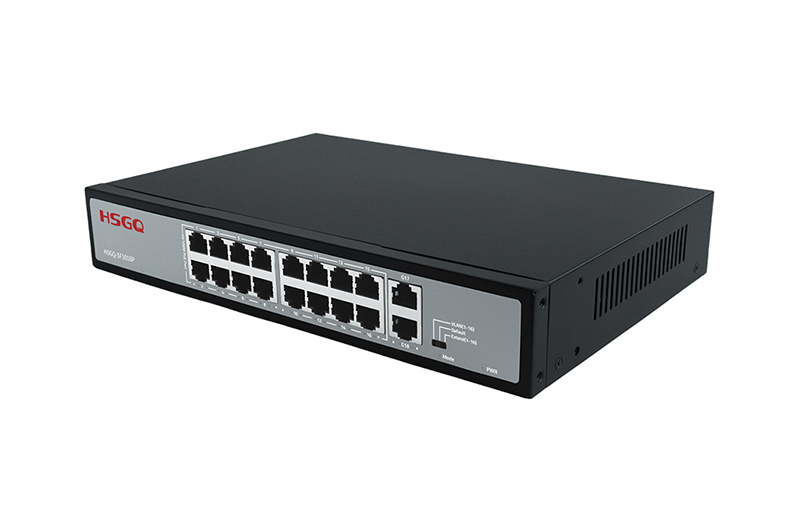

18-port Gigabit up-link PoE switch (200W). 16×10/100M PoE Ports + 2x Gigabit Uplink Ethernet Ports.
Product Overview

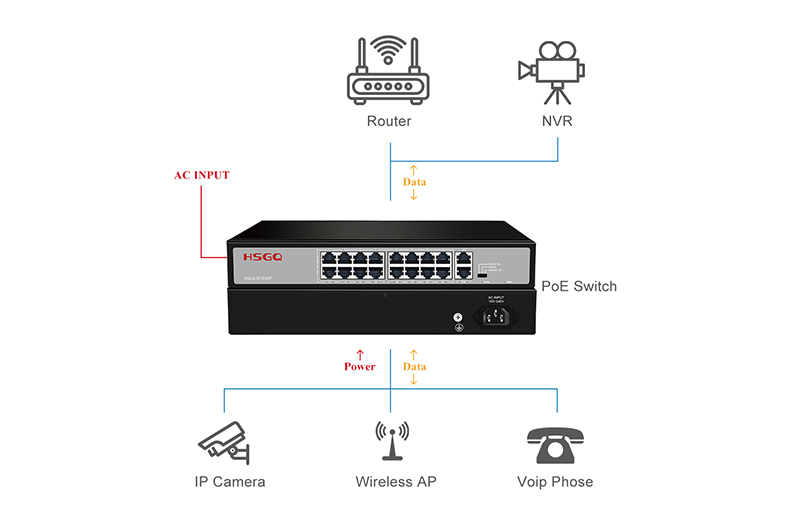

EW-F6046P is an 18-port Gigabit up-link PoE switch (200W), using high quality and high-speed network IC and the most stable PoE chips, providing seamless connections to 10/100/1000M ethernet. The PoE supply port can automatically detect and supply receiving devices meeting IEEE802.3af/at standard, while non-PoE devices intelligently detect no power and only transmit data.
Key Advantages
- 16×10/100M PoE Ports + 2×Gigabit Uplink Ethernet Ports
- Three-position one-touch intelligent dip switch, supporting VLAN, Default, Extend modes
- Compatible with 1U rackmount installation
- Suitable for urban optical fiber broadband networks, broadband special networks, and multimedia transmission
Technical Parameter
| Item | EW-F6046P |
|---|---|
| Ethernet | 16×10/100M PoE Port, 2xGigabit uplink RJ45 Port |
| Bandwidth | 7.2Gbps |
| Packet Forwarding Rate | 5.35Mpps |
| Packet Cache | 1.5Mb |
| MAC Address | 2K |
| PoE Protocol | IEEE802.3af (15.4W); IEEE802.3at (30W) |

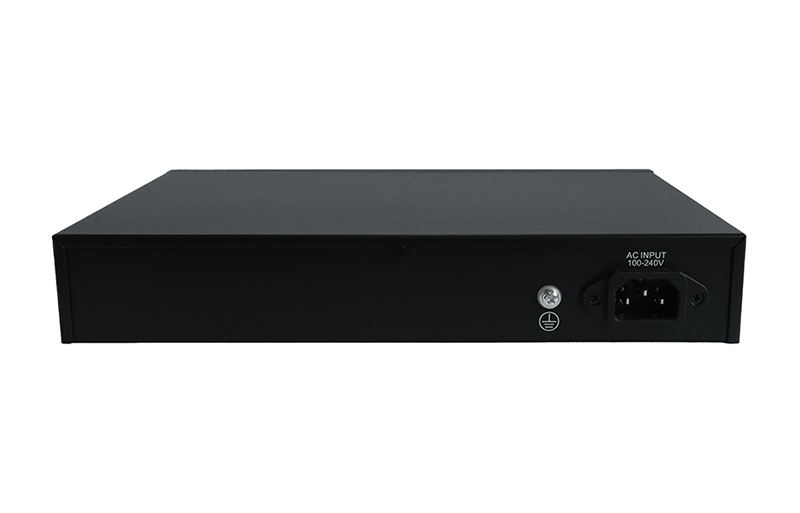

| Power Supply | AC 100~240V 50/60Hz |
| Dimensions | 268x181x44mm |
| Weight | N.W 1.29KG (200w); G.W 1.77KG (200w) |
| Working Temperature | -10~50°C |
Product Features
- Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z standard
- Flow control mode: full duplex using IEEE 802.3x standard, half duplex using Back pressure standard
- Support port auto flip (Auto MDI/MDIX)
- Three DIP switch modes: VLAN (port isolation), Default (10M/100M adaptive), Extend (250m range at 10M rate)
| Ethernet | 16×10/100M PoE Port, 2xGigabit uplink RJ45 Port |
| Bandwidth | 7.2Gbps |
| MAC Address | 2K |
| Power Supply | AC 100~240V 50/60Hz |
| Dimensions | 268x181x44mm |
| Weight | N.W 1.29KG (200w) |
- 16×10/100M PoE Ports + 2×Gigabit Uplink Ethernet Ports
- Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z standard
- Three-position DIP switch: VLAN, Default, Extend modes
- Compatible with 1U rackmount installation
Product Overview
EW-F6046P is an 18-port Gigabit up-link PoE switch (200W), using high quality and high-speed network IC and the most stable PoE chips, providing seamless connections to 10/100/1000M ethernet. The PoE supply port can automatically detect and supply receiving devices meeting IEEE802.3af/at standard, while non-PoE devices intelligently detect no power and only transmit data.Key Advantages
- 16×10/100M PoE Ports + 2×Gigabit Uplink Ethernet Ports
- Three-position one-touch intelligent dip switch, supporting VLAN, Default, Extend modes
- Compatible with 1U rackmount installation
- Suitable for urban optical fiber broadband networks, broadband special networks, and multimedia transmission
Technical Parameter
| Item | EW-F6046P |
|---|---|
| Ethernet | 16×10/100M PoE Port, 2xGigabit uplink RJ45 Port |
| Bandwidth | 7.2Gbps |
| Packet Forwarding Rate | 5.35Mpps |
| Packet Cache | 1.5Mb |
| MAC Address | 2K |
| PoE Protocol | IEEE802.3af (15.4W); IEEE802.3at (30W) |
| Power Supply | AC 100~240V 50/60Hz |
| Dimensions | 268x181x44mm |
| Weight | N.W 1.29KG (200w); G.W 1.77KG (200w) |
| Working Temperature | -10~50°C |
Product Features
- Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z standard
- Flow control mode: full duplex using IEEE 802.3x standard, half duplex using Back pressure standard
- Support port auto flip (Auto MDI/MDIX)
- Three DIP switch modes: VLAN (port isolation), Default (10M/100M adaptive), Extend (250m range at 10M rate)
