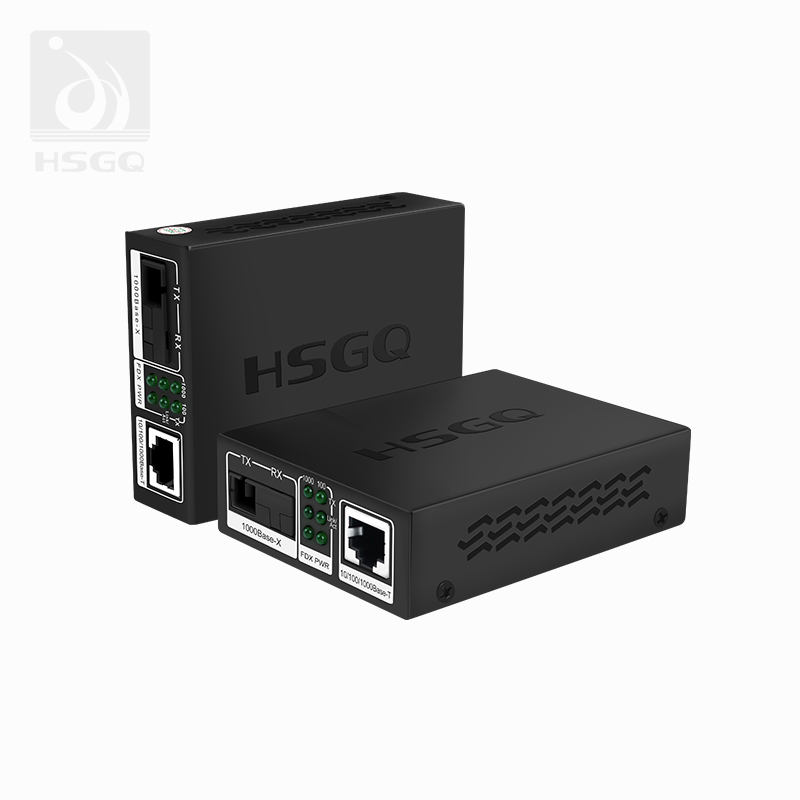

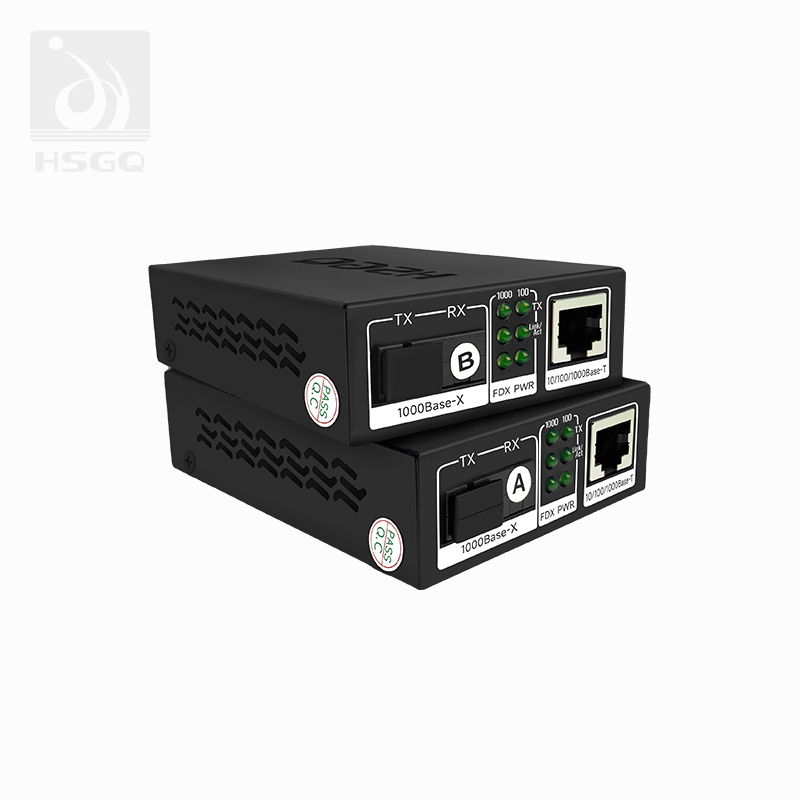

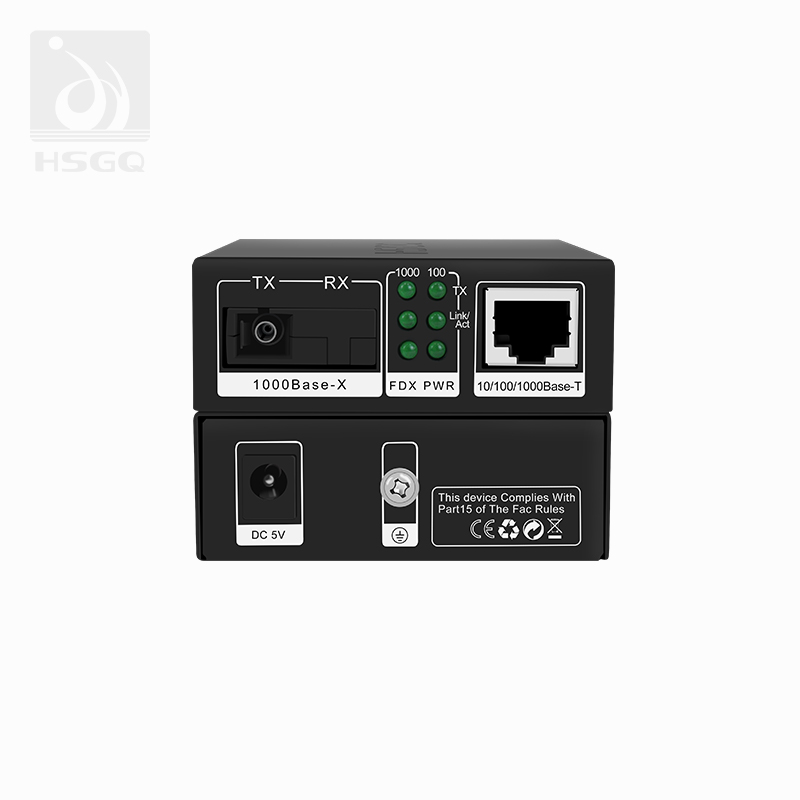

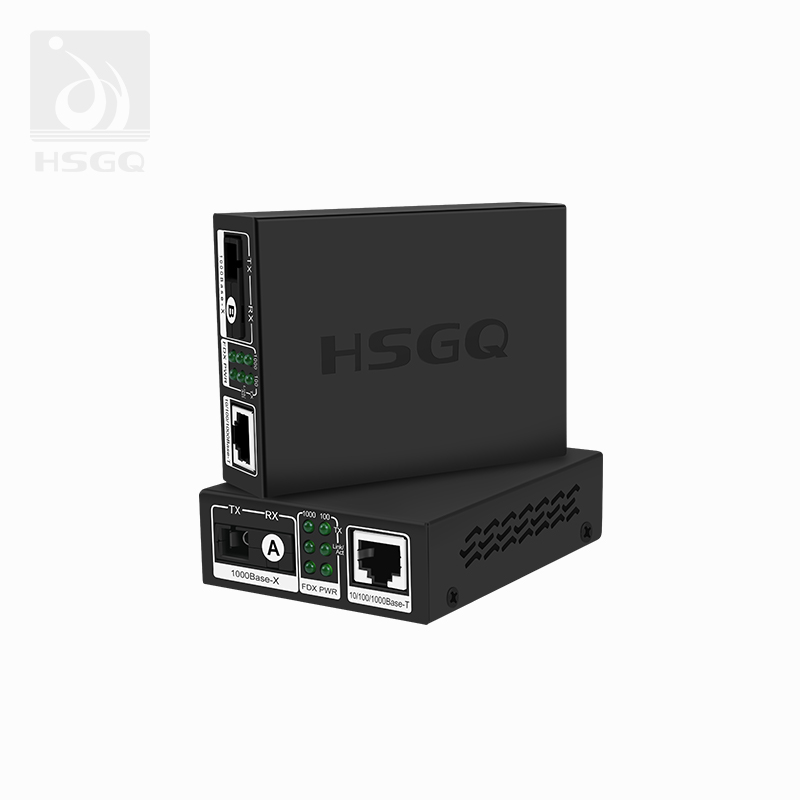

Fiber Optic Media Converter for Fiber Optic Cable
Fiber Optic Media Converter for Fiber Optic Cable
Extend network distance: converts fiber optic signals into signals of other media types for long-distance data transmission.
Anti-Interference Capability: better anti-interference capabilities, stable data transmission in electromagnetic interference environments.
High-Bandwidth Transmission: meets the needs of large-capacity, high-speed data transmission.
Flexibility and Compatibility: adapts to a variety of network environments and integrates seamlessly with existing network equipment.
Product Overview
Fiber Media Converter Series is a 1000M fiber transceiver with one 100M or 1000Base-T(x) adaptive Ethernet RJ45 interface. It helps users realize Ethernet data exchange, aggregation, and long-distance optical transmission. The equipment adopts fan-free and low-power design with the advantages of convenient use, small volume, and simple maintenance. The product design meets the Ethernet standard with stable and reliable performance, and can be widely used in broadband data transmission fields such as intelligent transportation, telecommunications, security, finance, customs, shipping, electric power, water conservancy, and oil field.
Key Advantages
- Industrial-Grade Design, Without Fear of Harsh Environments: full metal housing, distributed ventilation, convection design for heat dissipation, cold/heat resistant for -40~70°C long-term stable operation
- Plug and Play Without Configuration: simple operation with strong compatibility
- Indicator Light Judgment Function: network status at a glance
- Easily solves the 100-meter network cable transmission distance limitation through photoelectric signal conversion to extend network signal transmission distance
Technical Parameter
| Model | Ports | Mode |
|---|---|---|
| S111-S20A/B, S111-S20 | 1×10/100 Mbps + 1G SC | Single mode single/dual fiber |
| S211-S20, S211-S20A/B, S211-S03A/B | 1×10/100/1000 Mbps + 1G SC | Single mode single/dual fiber |
| Wavelength | TX 1310nm / RX 1550nm |
| Transmission Distance | 20km (S20 variants) / 3km (S03 variants) |
| Power Supply | DC 5V |
| MAC Address Table | 4K |
| Operating Temperature | -40°C~+75°C |
| MTBF | 10W h |
| Error Rate | <1/1000000000 |
| Power Consumption | <4W |
| Relative Humidity | 5~95% (no frost) |
| Size | 94.5mm x 71.5mm x 25.8mm |
Product Features
- Fan-free and low-power design for convenient use and simple maintenance
- Full metal housing, distributed ventilation, convection cooling design
- Plug and play without complex configuration steps
- Indicator lights for at-a-glance network status
- Wide application: intelligent transportation, telecom, security, finance, customs, shipping, power, water, oil field
| Wavelength | TX 1310nm / RX 1550nm |
| Transmission Distance | 20km or 3km depending on variant |
| Power Supply | DC 5V |
| Operating Temperature | -40°C~+75°C |
| Power Consumption | <4W |
| Size | 94.5mm x 71.5mm x 25.8mm |
- Fan-free, low-power design for convenient use and simple maintenance
- Full metal housing rated -40°C~+75°C for harsh environments
- Plug and play without complex configuration
- Indicator lights for at-a-glance network status
Product Overview
Fiber Media Converter Series is a 1000M fiber transceiver with one 100M or 1000Base-T(x) adaptive Ethernet RJ45 interface. It helps users realize Ethernet data exchange, aggregation, and long-distance optical transmission. The equipment adopts fan-free and low-power design with the advantages of convenient use, small volume, and simple maintenance. The product design meets the Ethernet standard with stable and reliable performance, and can be widely used in broadband data transmission fields such as intelligent transportation, telecommunications, security, finance, customs, shipping, electric power, water conservancy, and oil field.Key Advantages
- Industrial-Grade Design, Without Fear of Harsh Environments: full metal housing, distributed ventilation, convection design for heat dissipation, cold/heat resistant for -40~70°C long-term stable operation
- Plug and Play Without Configuration: simple operation with strong compatibility
- Indicator Light Judgment Function: network status at a glance
- Easily solves the 100-meter network cable transmission distance limitation through photoelectric signal conversion to extend network signal transmission distance
Technical Parameter
| Model | Ports | Mode |
|---|---|---|
| S111-S20A/B, S111-S20 | 1×10/100 Mbps + 1G SC | Single mode single/dual fiber |
| S211-S20, S211-S20A/B, S211-S03A/B | 1×10/100/1000 Mbps + 1G SC | Single mode single/dual fiber |
| Wavelength | TX 1310nm / RX 1550nm |
| Transmission Distance | 20km (S20 variants) / 3km (S03 variants) |
| Power Supply | DC 5V |
| MAC Address Table | 4K |
| Operating Temperature | -40°C~+75°C |
| MTBF | 10W h |
| Error Rate | <1/1000000000 |
| Power Consumption | <4W |
| Relative Humidity | 5~95% (no frost) |
| Size | 94.5mm x 71.5mm x 25.8mm |
Product Features
- Fan-free and low-power design for convenient use and simple maintenance
- Full metal housing, distributed ventilation, convection cooling design
- Plug and play without complex configuration steps
- Indicator lights for at-a-glance network status
- Wide application: intelligent transportation, telecom, security, finance, customs, shipping, power, water, oil field
