GPON Stick OLT
GPON Stick OLT
Distributed/Edge Deployment: Integrates GPON OLT functionality into the SFP ports of existing aggregation switches or routers.
FTTx/FTTH Access: A cost-effective, rapidly deployable solution for providing fiber-to-the-home services.
Small/Medium PON Networks: Suitable for small campus or community networks with centralized management requirements.
Mobile Backhaul Networks: Commonly used for mobile backhaul links at base stations in the 5G era.
Product Overview

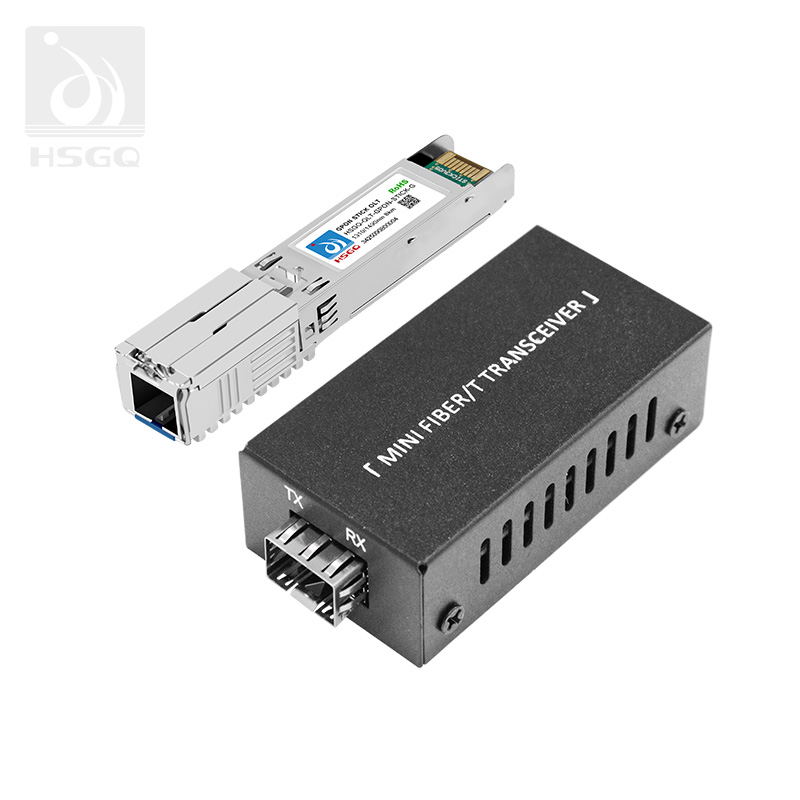

HSGQ-OLT-GPON-STICK-G combines an optical fiber transceiver with a GPON OLT Stick to help upgrade traditional data communication equipment to an all-optical access network. Its modular design makes port configuration more flexible and allows GPON function to be integrated into compatible network equipment with optical ports, reducing the need for a separate OLT chassis in distributed or space-limited deployments.
Key Advantages
- Much smaller, lighter and more portable than a traditional standalone OLT
- Multi scene adaptation: suitable for offices, hospitals, malls, libraries, parking lots, and public gardens
- Thickened “Goldfinger” design with nano plating hard gold plating for reliable repeated insertion
- Plug and play, debugging-free digital communication device with fully automatic ONU registration
- Compatible with third-party HGU type ONU, adhering to the standard GPON protocol
- Single PON port of virtual OLT allows flexible PON network expansion without major hardware investment
- Compatible with any third-party switches, routers, and firewalls with optical ports
Technical Parameter
| Item | HSGQ-GS01KIT |
|---|---|
| User Interface | 1*GPON, 1*GE RJ45 |
| PON | PON SFP+ slot (20 pin); GPON Class B+ |
| Split Ratio | 1:32 (Maximum) |
| Bandwidth | Upstream 1.244Gbps; Downstream 2.488Gbps |
| Distance | 8km |
| Dimensions | 75*12*22mm |
| Environment | Work: -10°C~40°C; Storage: -20°C~85°C; Humidity: 10%~95% non-condensing |
| Power Supply | DC 5V |
| Power Consumption | <3W |
Product Features
- Single fiber bidirectional data link: Downstream 2.488Gbps, Upstream 1.244Gbps; equipped with GPON MAC function
- SFP+ package, SC interface, hot swappable function
- Support 8km single-mode fiber transmission distance
- Low power consumption <2.5W; shell temperature range: -40°C to 85°C
- Supports up to 16 or 32 ONU terminals
- Platform features: auto register, manually activate ONU, P2P, mandatory rate, cover offline
- Support fault display and status display; WEB configuration and management; firmware upgrade; batch upgrade of up to 5 ONU devices
| User Interface | 1*GPON, 1*GE RJ45 |
| Split Ratio | 1:32 (Maximum) |
| Bandwidth | Upstream 1.244Gbps; Downstream 2.488Gbps |
| Distance | 8km |
| Dimensions | 75*12*22mm |
| Power Supply | DC 5V |
| Power Consumption | <3W |
- Single fiber bidirectional data link with GPON MAC function
- SFP+ package, SC interface, hot swappable
- Support 8km single-mode fiber transmission distance
- Low power consumption <2.5W
- Supports up to 16 or 32 ONU terminals
