XPON Onu Fiber for WiFi Router
XPON Onu Fiber for WiFi Router
Structure: 1*1000M Ethernet interface (RJ45); 1*EPON/GPON adaptive interface.
Setting: Set up through the web interface or the management software that comes with the optical modem.
Value: Usually lower than multi-port optical modems, suitable for users with limited budgets.
Consumption: Low power consumption and more energy-saving and environmentally friendly.
Scenario: Only one router in the home needs to connect to the Internet.
Setting: Set up through the web interface or the management software that comes with the optical modem.
Value: Usually lower than multi-port optical modems, suitable for users with limited budgets.
Consumption: Low power consumption and more energy-saving and environmentally friendly.
Scenario: Only one router in the home needs to connect to the Internet.
Product Introduction

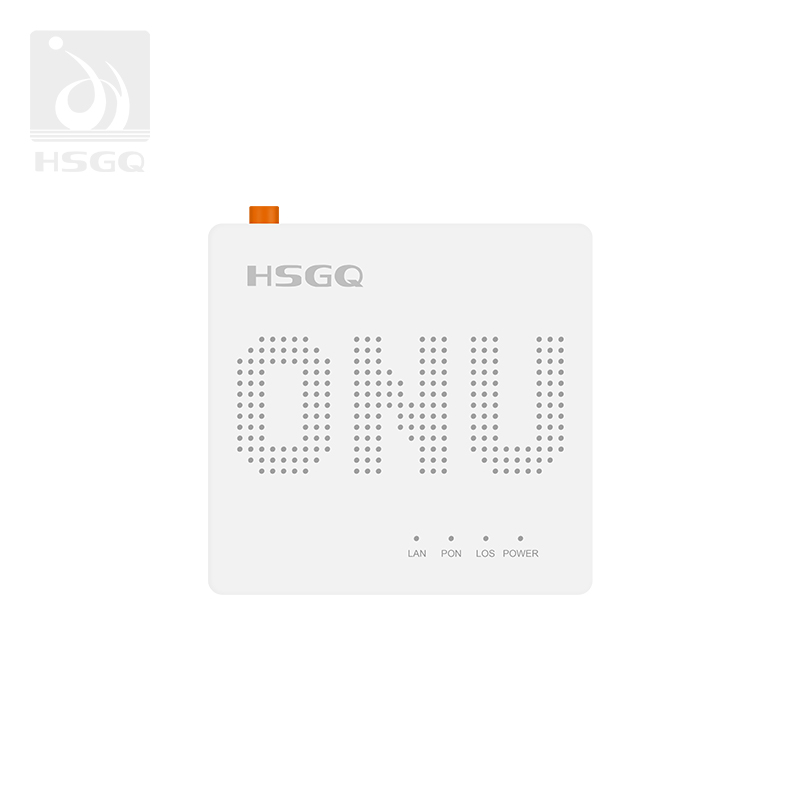

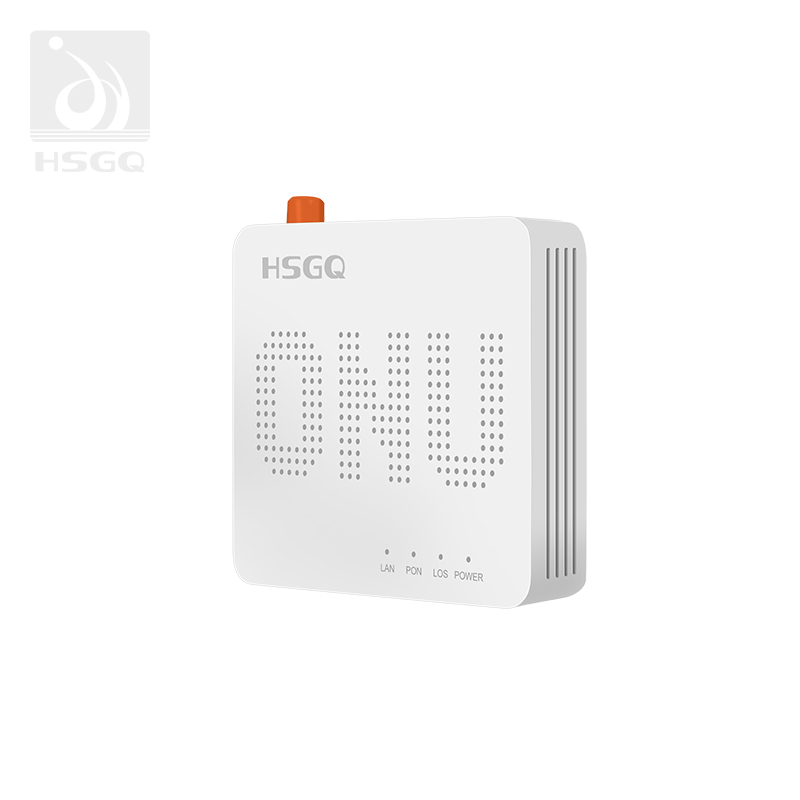

Small single port optical network unit is a fiber optic access terminal device that converts optical signals into electrical signals and provides an Ethernet interface. It is usually provided by telecom operators for home broadband access. HSGQ-X100DG GPON Optical network terminal device, commonly known as “ONU”, is an essential network equipment for optical fiber to homes and offices.Key Advantages
- Extremely fast fiber optic, essential for home access
- Small but powerful: fast processor for smooth video playback and shorter game delay
- HSGQ Cloud independent management platform for easy remote operation
- All-round efficient heat dissipation via porous design and convection
Technical Parameter
| Item | EW-F6019P |
|---|---|
| User Interface | 1*10/100/1000M RJ45 port |
| PON | EPON&GPON mode adaptive; Interface Type: SC-UPC/SC-APC; Network coverage radius: 20KM; GPON: upstream 1.25Gbps/downstream 2.5Gbps, receive sensitivity ≥-7~-28dBm, continuous light power 0.5dBm~+5dBm; EPON: upstream 1.25Gbps/downstream 1.25Gbps, receive sensitivity ≥-7~-27dBm, continuous light power 0dBm~4dBm |
| Ethernet | 1*10/100/1000M auto-negotiation; Full/half duplex mode; RJ45 connector; Auto MDI/MDI-X; 100m distance |
| Size | 105mm(L)x85mm(W)x25mm(H) |
| Environment | Operating: 0°C~60°C; Operating humidity: 10%~85% non-condensing; Storage: -40°C~80°C; Storage humidity: 5%~95% non-condensing |
| Power Supply | 12V 0.5A DC; power interface size: 2.1mm/5.5mm |
| Power | <3W |
| Management | Web/TELNET/TR069/OAM/OMCI |
Key Feature
- Support port-based rate limitation and bandwidth control
- Compliant with IEEE802.3ah & ITU-T G.984 adaptive interface
- Up to 20KM transmission distance
- Support data encryption, group broadcasting, port VLAN separation
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto-discovery/link detection/remote software upgrade
- Support port mode VLAN configuration
- Support power-off alarm function for easy link problem detection
- Support broadcasting storm resistance and port loop detection
- Support ACL to configure data packet filter flexibly
- Support PPPoE/DHCP Server/IPTV/NAT
- Support software online upgrading; mac/port/url filter
